Takeuchi TL150 Workshop Manual

IV-89
HYDRAULIC UNITS
SELF-LEVEL VALVE

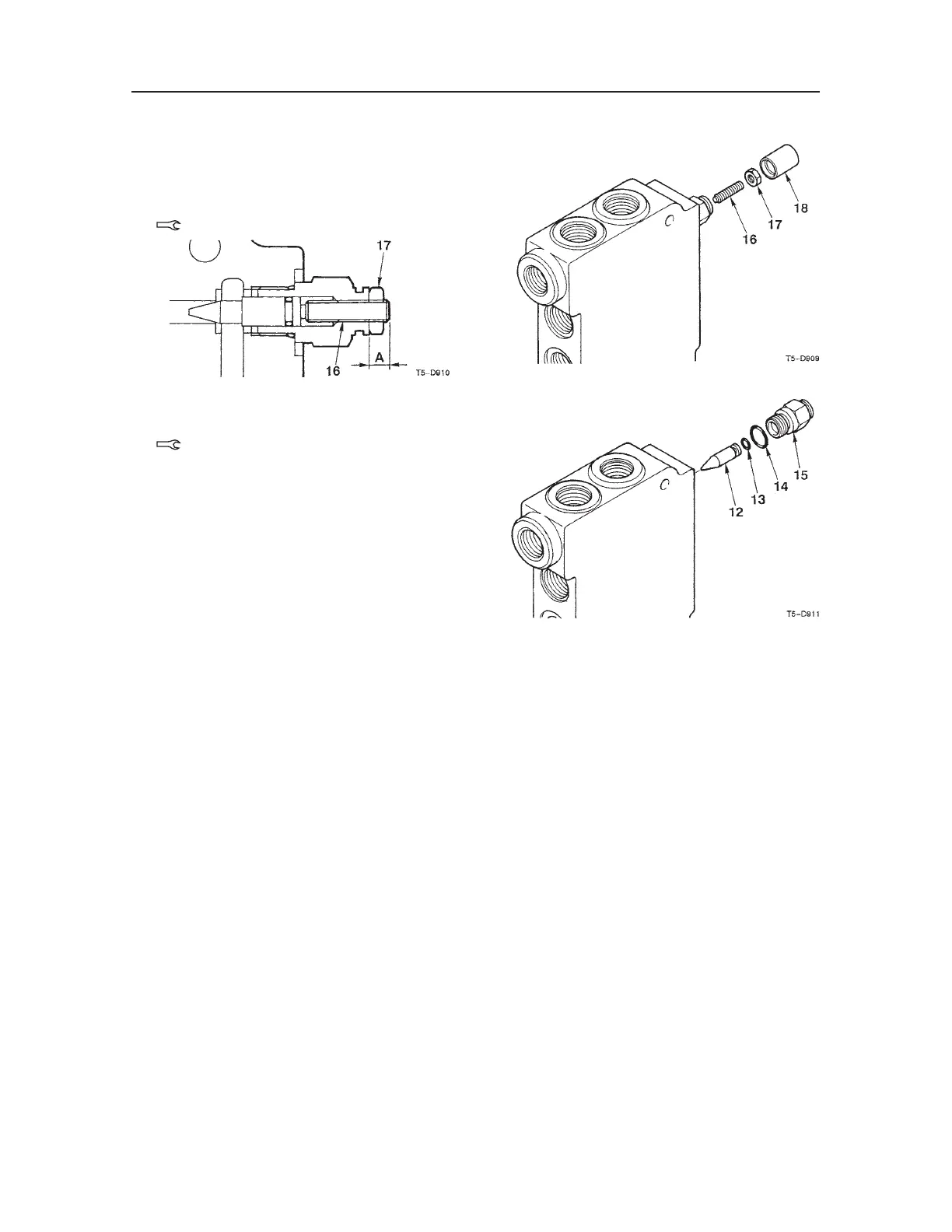

4. Remove cover (18), nut (17), and set screw (16)
from cap.
• Make a record of the measurements for A (see
diagram below), and make sure that these
measurements do not change during assem-
bly.
Nut: 5.4~7.8 N·m
5. Remove cap (15) and then take O-ring (14) off
the cap.
Cap: 13.6~16.3 N·m
6 Remove pin (12) and then take O-ring (13) off
the pin.

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
