III-56

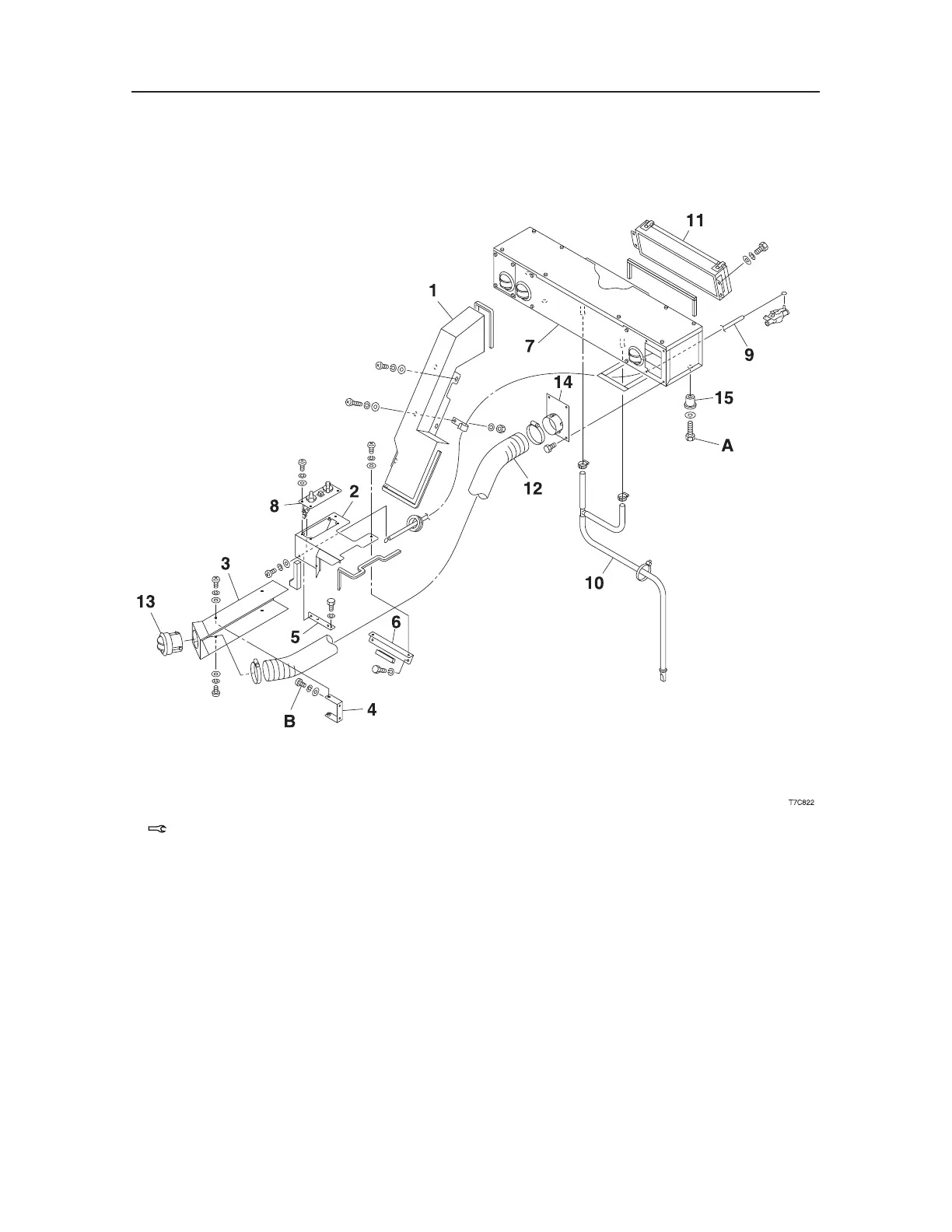

MACHINE CONFIGURATIONAIR CONDITIONER SYSTEM
1. Cover
2. Cover
3. Cover
4. Bracket
5. Bracket
6. Bracket
7. Air Conditioner Unit
8. Panel
Compressor Assembly (3/4)
A: 1.8 N·m
B: Apply thread-locking compound.
9. Control Cable
10. Tube
11. Box
12. Tube
13. Louver
14. Adapter
15. Cushion Rubber
