Viking MB 650 - Assembling Blade Clutch; Quick-Start Lever; Installing Blade Clutch; Quick-Start Lever

RA_6360_6375_01 - EN 28
- Control bars and levers -

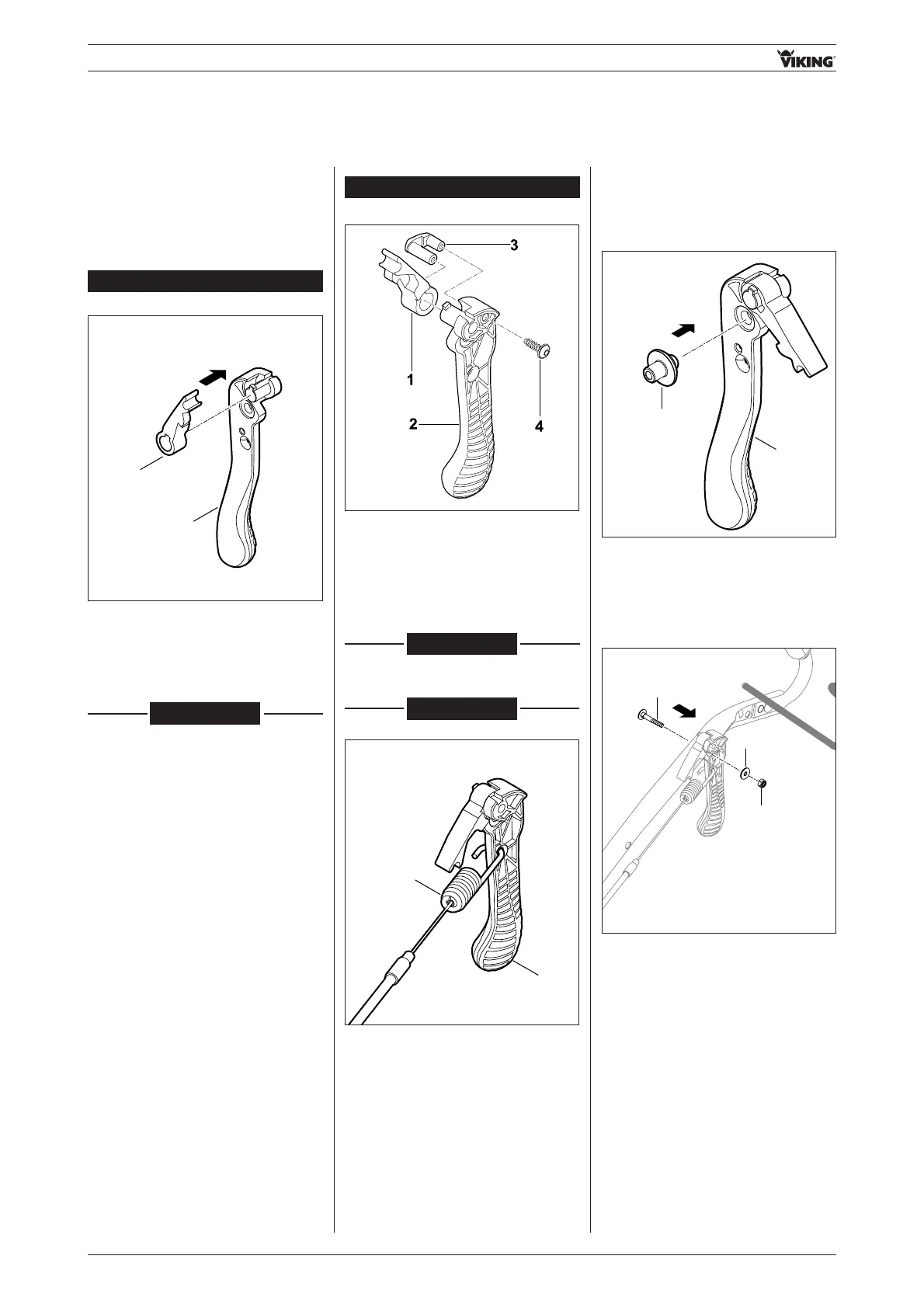

• Fit detent lever 1 onto blade clutch /
Quick-Start lever 2
(ensure correct installation position,
see Fig.). Insert reinforcement 3,
install screw 4 (1-2 Nm).
03.04.03 Assembling blade
clutch / Quick-Start
lever
• Fit detent lever 1 onto blade clutch /
Quick-Start lever 2
(ensure correct installation position,
see Fig.)
1
2
• Attach cable 1 to blade clutch /
Quick-Start lever 2.
1
2
03.04.04 Installing blade clutch /
Quick-Start lever
• Push bushing 1 into blade clutch /
Quick-Start lever 2 and attach to
handlebar.
1
2
• Insert bolt 1 from outside through
handlebar. Fit washer 2 and tighten
nut 3 (1-2 Nm).
3
2
1
03.04.03 (A)
 03.04.03 (A)
 03.04.03 (A)
from serial number 4 31 076 057
up to serial number 4 31 076 056
