Viking MB 650 - Installing Right Freewheel Wedge; Removing Left Freewheel Wedge

RA_6360_6375_01 - EN
- Chassis -

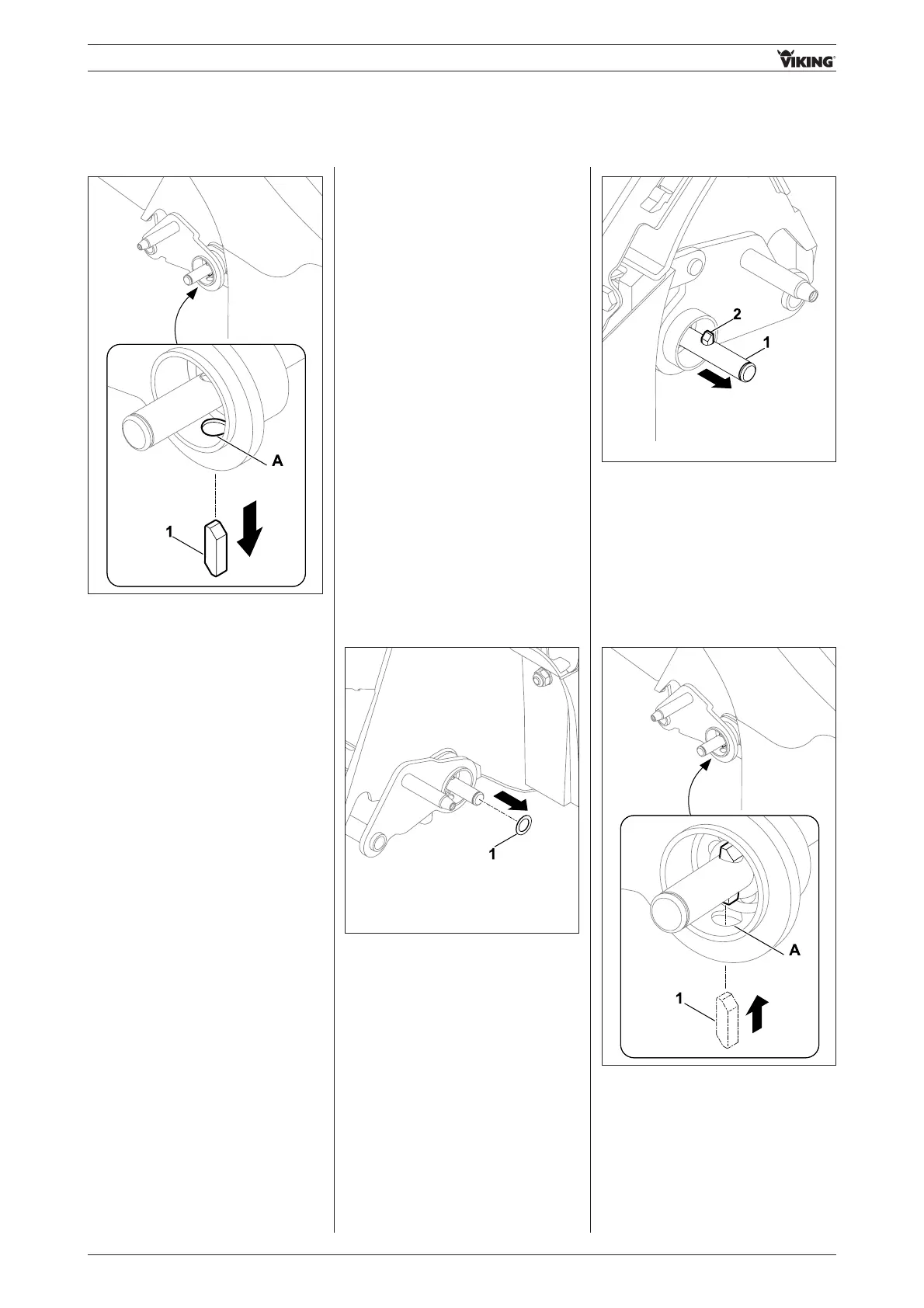

• Remove freewheel wedge 1 through
bore A.
04.08.02 Removing left
freewheel wedge
- Remove left drive pinion
(see section 04.07.02)
- Remove right freewheel wedge
(see section 04.08.01)
Models with single-speed / Vario
gearbox
- Removing single-speed / Vario
gearbox support
(see section 06.04.01)
Models with three-speed gearbox
- Remove three-speed gearbox
support
(see section 06.04.03)
• Remove shim ring 1.
• Push gearbox 1 in direction of arrow
(to left) and remove freewheel
wedge 2.
• Insert freewheel wedge 1 through
bore A.
04.08.03 Installing right
freewheel wedge
Note:
Ensure correct installation position
of freewheel wedge 1 (see Fig.).
53
