Viking MB 650 - Height Adjustment; Replacing Height Adjustment Spring

RA_6360_6375_01 - EN
- Height adjustment -
VIKING special service tool (height
adjustment) 6375 890 8800

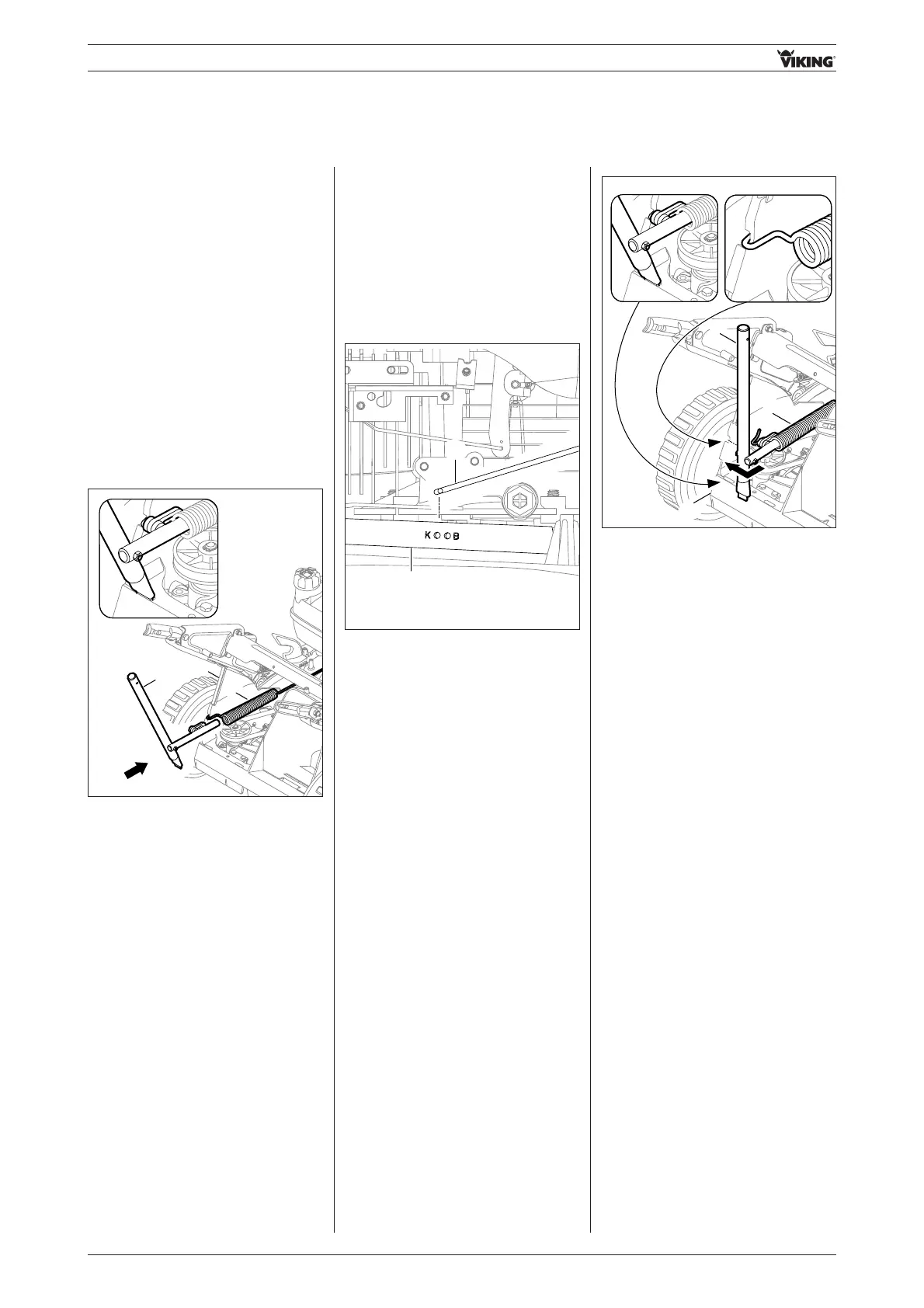

• Detach spring 1 from housing 3
using VIKING special service tool 2.
- Detach the spring from the
translatory lever and remove.
2
3
1
07.01 Replacing height
adjustment spring
07.01.01 Removing height
adjustment spring
- Remove housing cover assembly
(see section 05.02.01)
• Attach spring 1 to translatory
lever 2.
2
1
VIKING special service tool (height
adjustment) 6375 890 8800
• Attach spring 1 to housing 3 using
VIKING special service tool 2.
1
2
3
07.01.02 Installing height
adjustment spring
- Attach housing cover assembly
(see section 05.02.04)
07. Height adjustment
Note:
Two bores are provided on the
translatory lever designated “K”
and “B”.
On appliances with KAWASAKI
engines, the spring must be
attached at bore “K” and on
appliances with Briggs & Stratton
engines, at bore “B”.
Note:
Set the cutting height adjustment to
the highest position (position 7).
Note:
Set the cutting height adjustment to
the highest position (position 7).
73
