Viking MB 650 - Chassis; Replacing Front Axle

RA_6360_6375_01 - EN35
- Chassis -

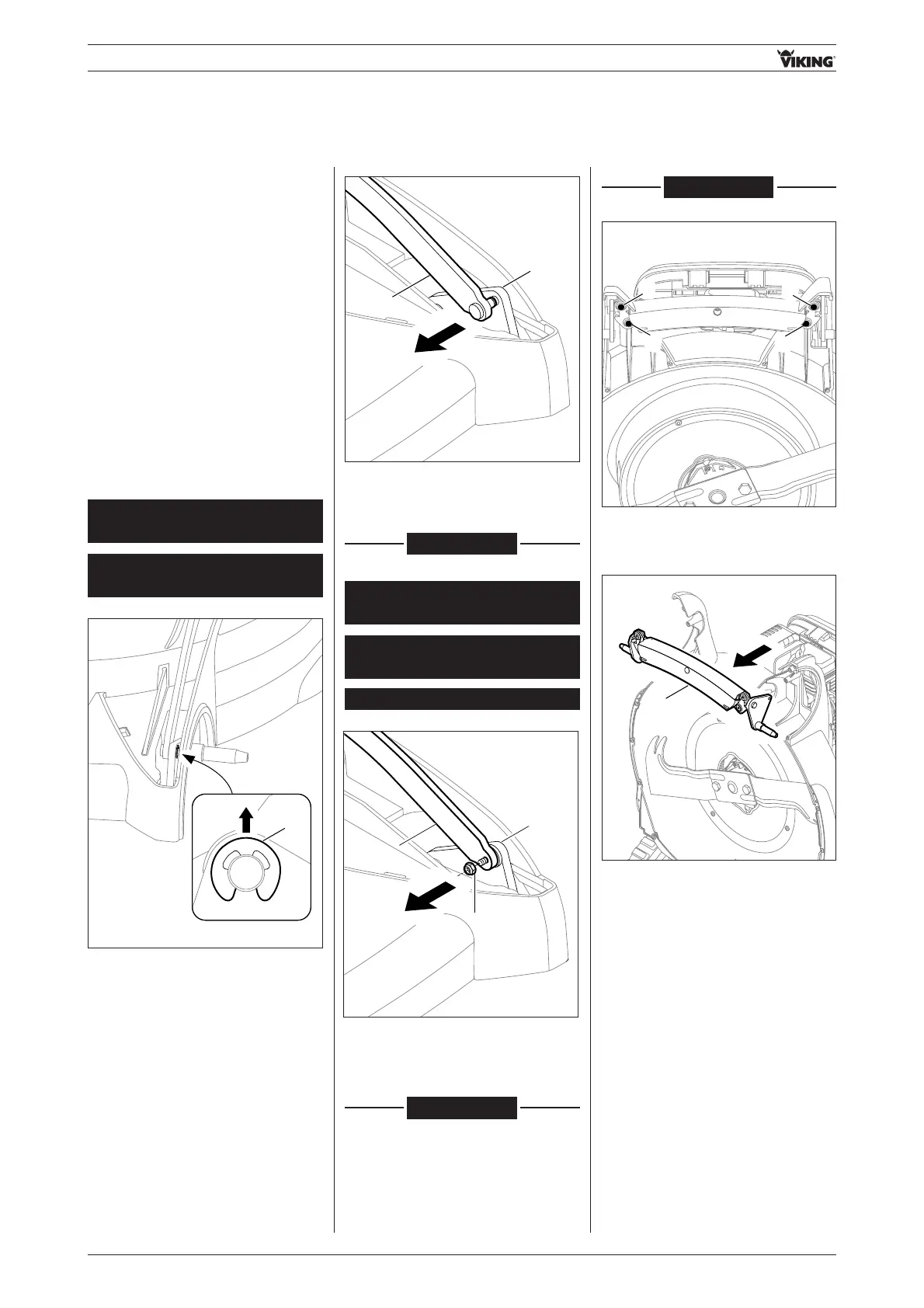

04.01 Replacing front axle
04.01.01 Removing front axle
- Remove front wheel
(see section 04.04.01)
Note:
Set the cutting height adjustment to
the highest position (position 7).
- Remove translatory lever cover
(see section 05.07.01)
04. Chassis
• Remove retaining ring 1 using long-
nose pliers.
1
• Detach translatory lever 1 from axle
2 (swivel plate).
1
2
• Remove screws 1.
1
1
1
1
• Axle with carrying handle 1.
1
• Remove nut 1, remove translatory
lever 2 from axle 3 (swivel plate with
pin).
1
3
2
Models MB 650.0
from serial number 4 31 244 752
Models MB 655.0
from serial number 4 31 230 688
Models MB 655.1
Models MB 650.0
up to serial number 4 31 244 751
Models MB 655.0
up to serial number 4 31 230 687
 04.01.01 (A)
04.01.01 (A)
 04.01.01 (A)
