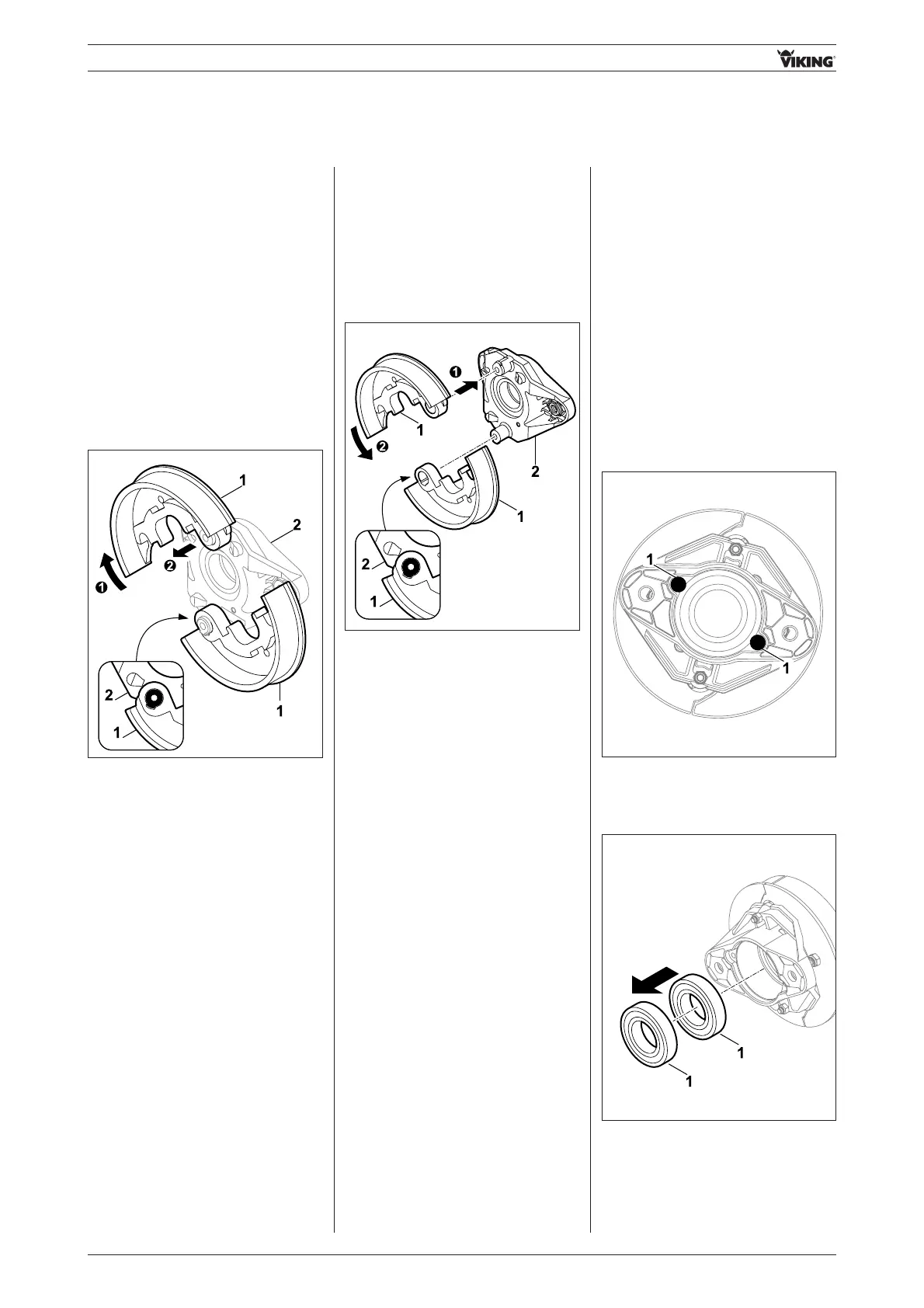

Viking MB 650 - Installing Clutch Shoes; Removing Blade Mounting Ball Bearing; Removing Clutch Shoes; Replacing Blade Mounting Ball Bearing

RA_6360_6375_01 - EN
- Blade clutch -
- Install thrust springs
(see section 11.04.02)
11.05.02 Installing clutch shoes
• Fit clutch shoes 1 onto mounting 2
and turn towards inside in direction
of arrow (45°).
Note:
Always replace clutch shoes in
pairs.
Note:
Always replace clutch shoes in
pairs.
- Remove thrust springs
(see section 11.04.01)
11.05 Replacing clutch shoes
11.05.01 Removing clutch shoes
• Turn clutch shoes 1 towards outside
in direction of arrow (45°) and
remove from mounting 2.
Note:
Always replace both ball bearings.
- Remove blade mounting
(see section 11.01.01)
11.06 Replacing blade
mounting ball bearing
11.06.01 Removing blade
mounting ball bearing
• Remove bolts 1.
• Drive out ball bearing 1 (2 pcs)
using a press tool or punch and
hammer.
89
