RA_6360_6375_01 - EN
- Blade clutch -

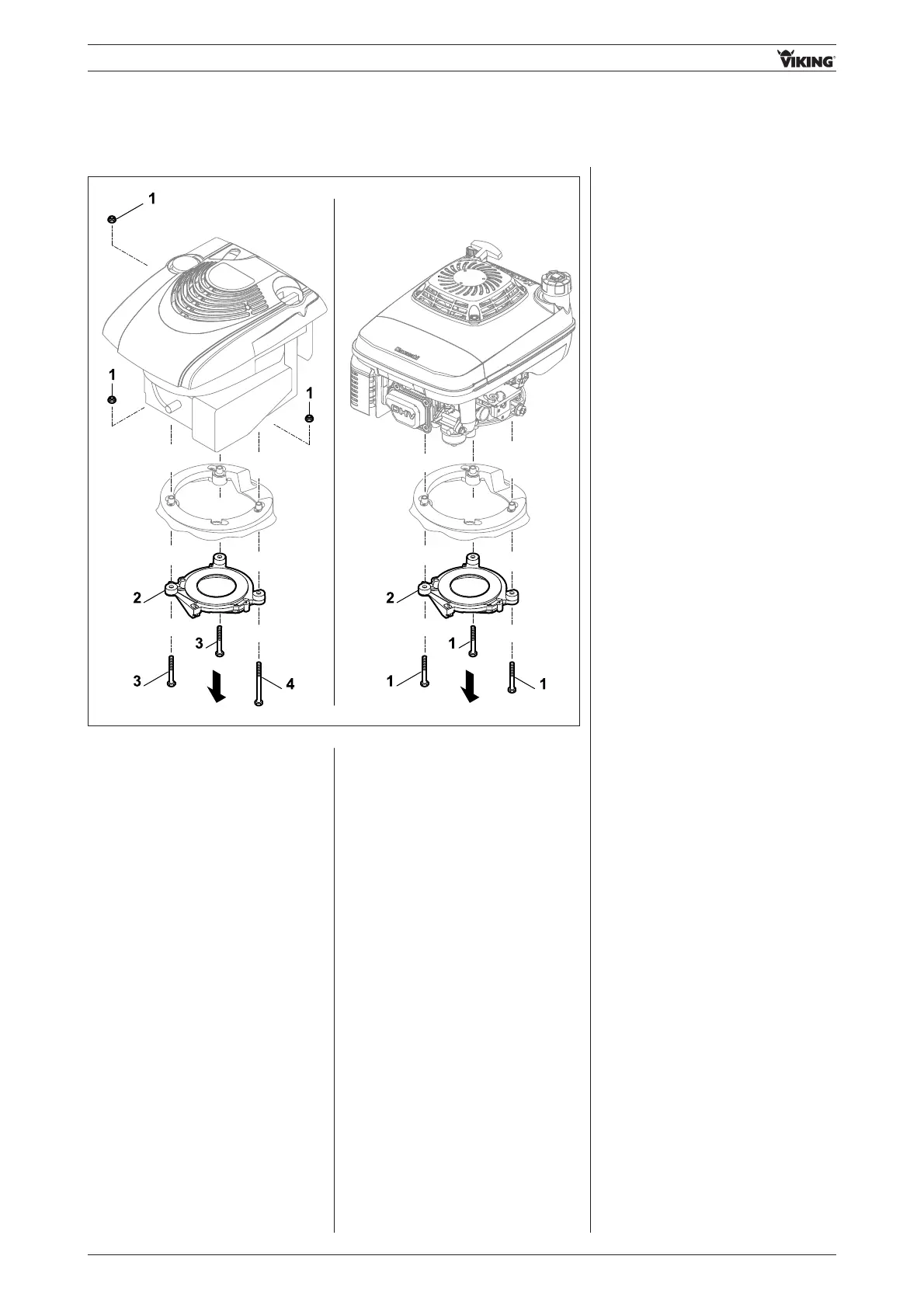

Models with Briggs & Stratton
Quantum engines
• Remove nuts 1 and remove clutch
flange 2 together with bolts 3 and 4.
Models with Kawasaki engines,
Briggs & Stratton DOV engines
(engine mounting with self-
tapping screws)
• Remove bolts 1 and remove
together with clutch flange 2.
Note:
Bolts 3 and 4 are of different
lengths.
Bolt 3 = short (80 mm)
Bolt 4 = long (110 mm)
- Remove brake band
(see section 11.09.01)
11.10.02 Dismantling clutch
flange
- Install brake band
(see section 11.09.02)
11.10.03 Assembling clutch
flange
95
