- Handlebar -

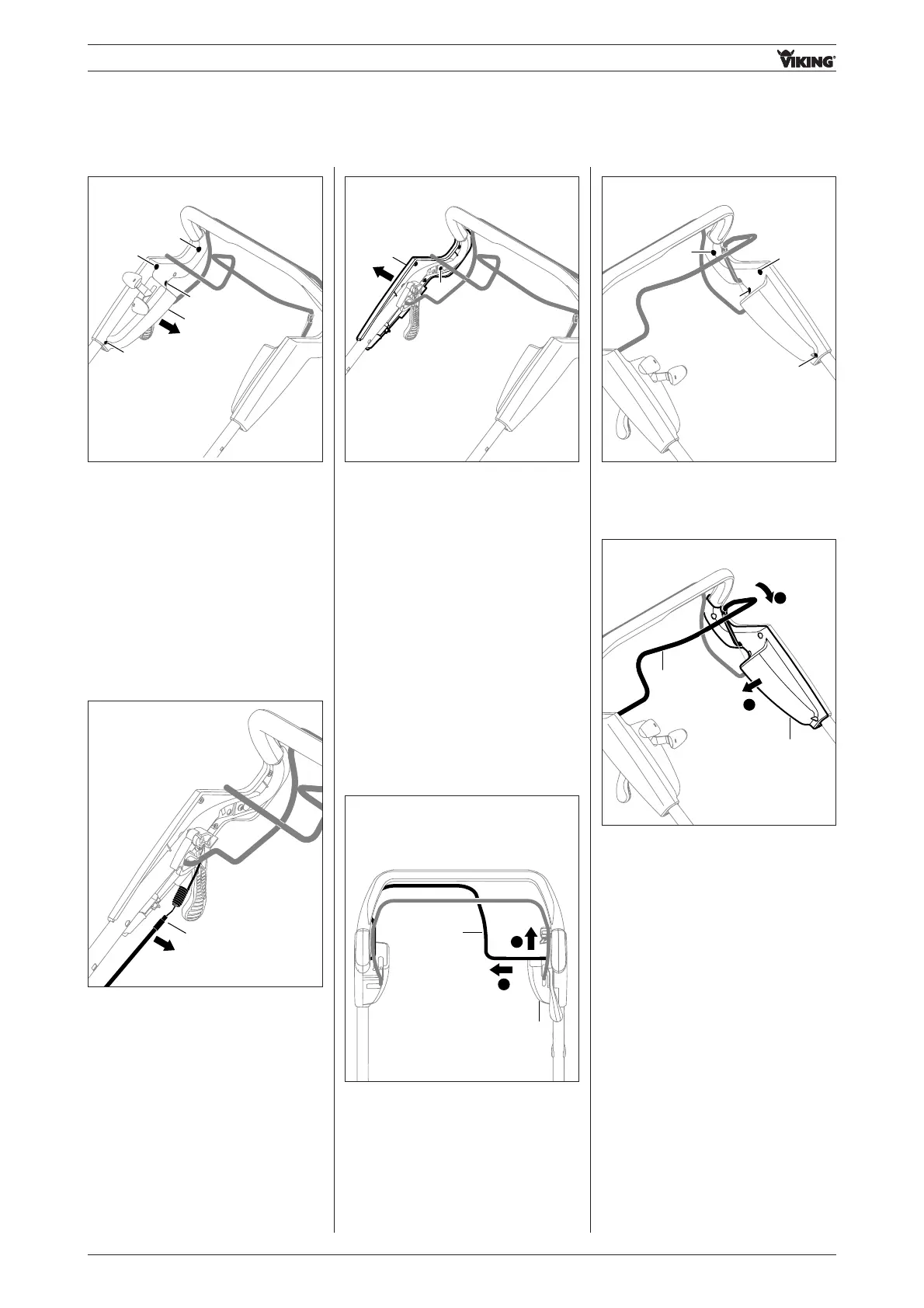

02.03.02 Removing outside right
housing half
- Remove inside right housing half
(see section 02.03.01).
Models with blade clutch / with
Quick-Start
• Detach blade clutch cable 1 from
guide.
• Remove screw 1.
• Remove outside right housing
half 2.
1
2
02.03.03 Removing inside left
housing half
- Remove right / left cable guide
(see section 02.01.01)
- Remove reinforcement strut
(see section 02.02.01)
• Push wheel drive control bar 1 to the
left and detach from inside right
housing half 2.
• Pull wheel drive control bar 1
upwards and rest on right housing
halves.
1
2
2
1
• Remove screws 1, 2.
1
2
1
1
• Lift inside left housing half 1 slightly
and push wheel drive lever 2
forwards.
1
1
2
2
1
• Remove screws 1, 2 and remove
inside right housing half 3.
1
3
1
1
2
