Viking MB 650 - Replacing Wheel Cap; Removing Front Wheel Cap; Removing Rear Wheel Cap

RA_6360_6375_01 - EN45

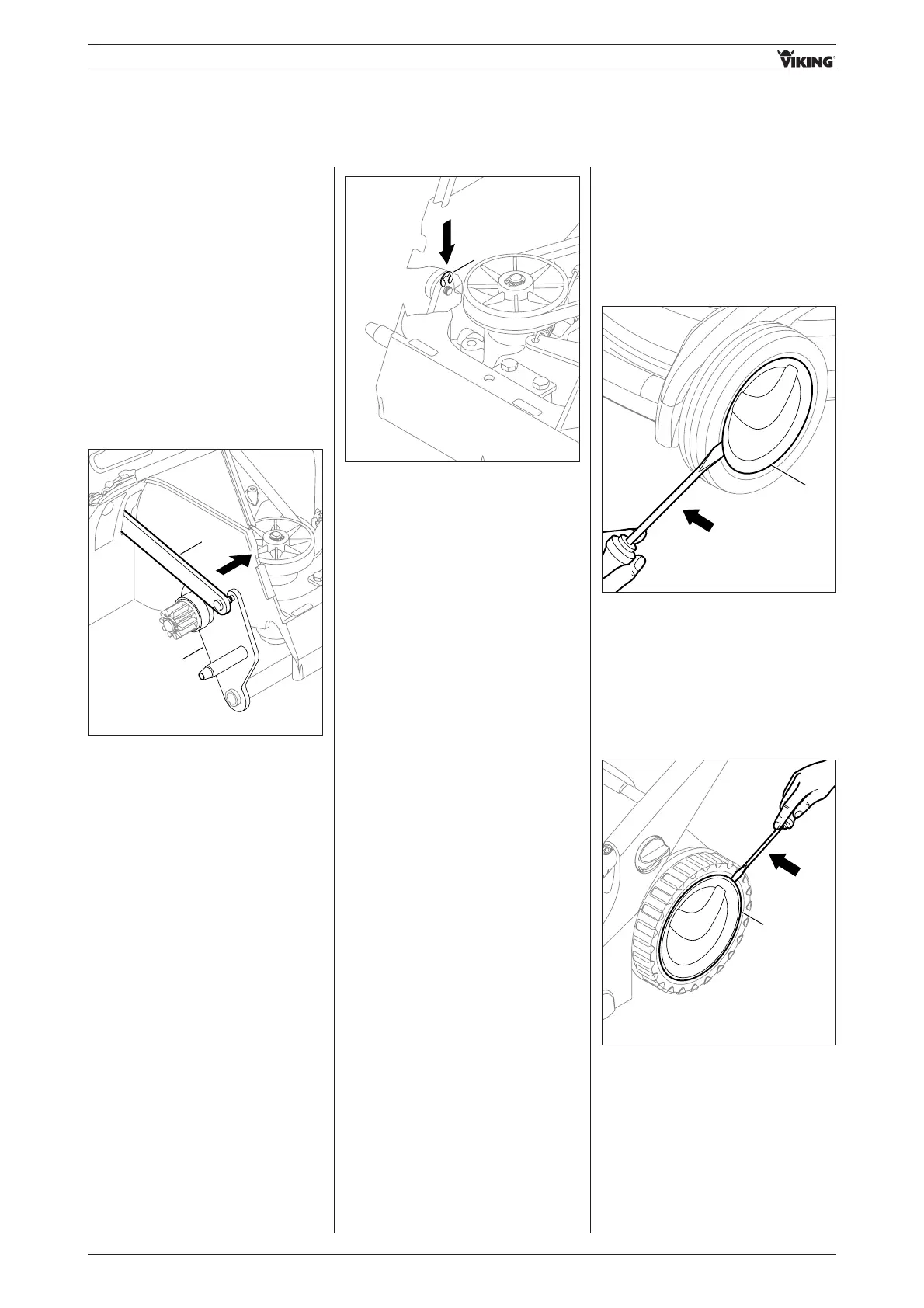

04.03.01 Removing front wheel
cap
04.03 Replacing wheel cap
• Lever off wheel cap 1 using
screwdriver.
1
04.03.02 Removing rear wheel
cap
• Lever off wheel cap 1 using
screwdriver.
1
- Chassis -
- Fit V-belt at gearbox.
• Attach translatory lever 1 to axle 2
(swivel plate).
1
2
• Fit retaining washer 1 to pin and clip
in using long-nose pliers.
1
- Install rear wheel cover
(see section 04.06.02)
- Install height adjustment spring
(see section 07.01.02)
Models with single-speed / Vario
gearbox
- Install single-speed / Vario gearbox
support
(see section 06.04.02)
- Models with three-speed gearbox
Install three-speed gearbox support
(see section 06.04.04)
