Viking MB 650 - Replacing Brake Band Lever; Removing Brake Band Lever

- Blade clutch -
- Install V-belt cover
(see section 05.09.02)
- Install lower cover
(see section 05.12.02)
Models with three-speed drive

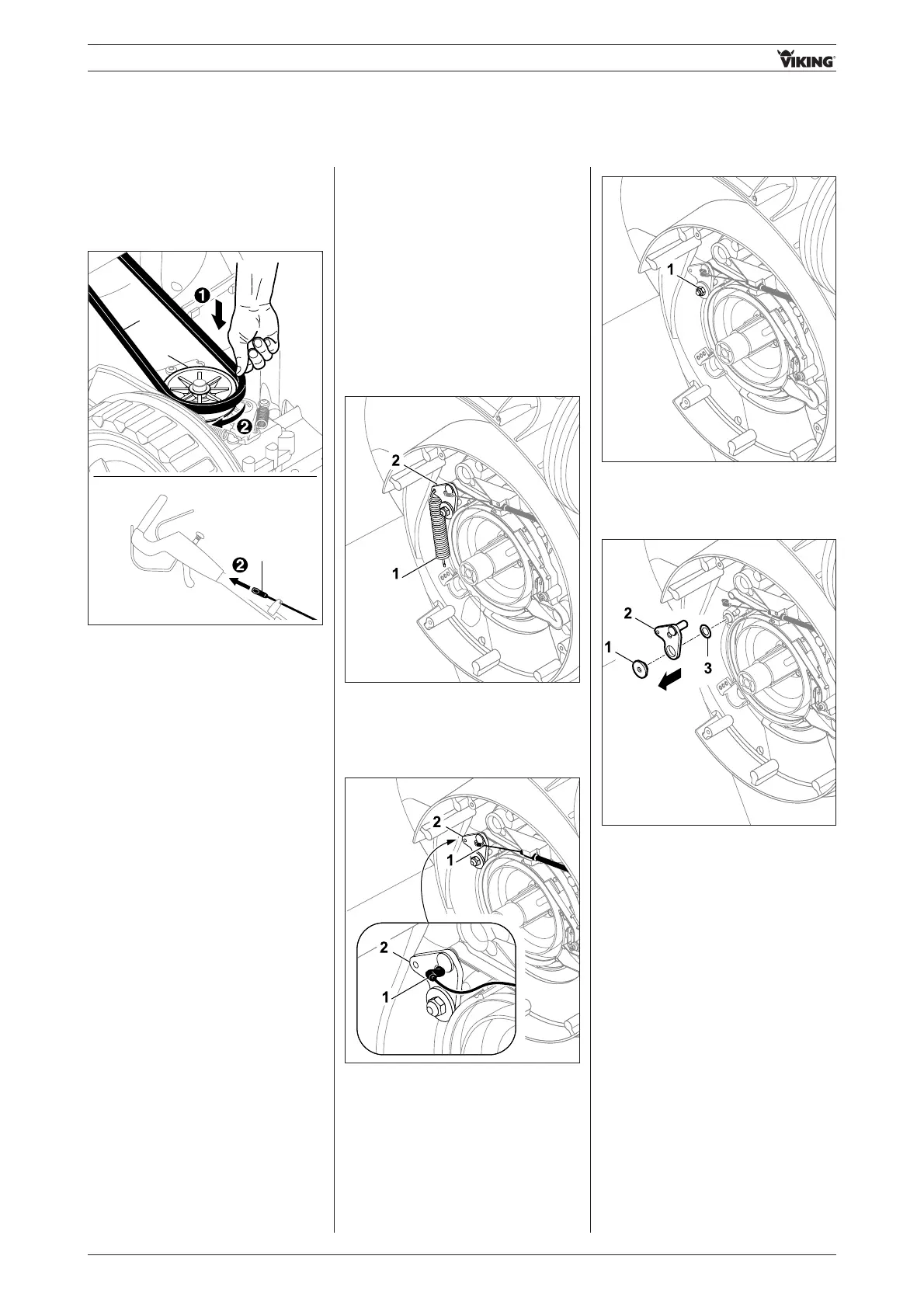

• Fit V-belt 1 onto V-belt pulley 2.
• Slowly pull out starter cable 3 in
order to attach the V-belt to the
V-belt pulley.
1
2
3
Models with Vario drive
- Fit V-belt at gearbox.
• Detach cable 1 from brake band
lever 2.
• Remove nuts 1.
• Detach spring 1 from brake band
lever 2.
• Remove bushing 1 with brake band
lever 2 and washer 3.
11.08 Replacing brake band
lever
11.08.01 Removing brake band
lever
- Remove blade mounting
(see section 11.01.01)
92 RA_6360_6375_01 - EN
