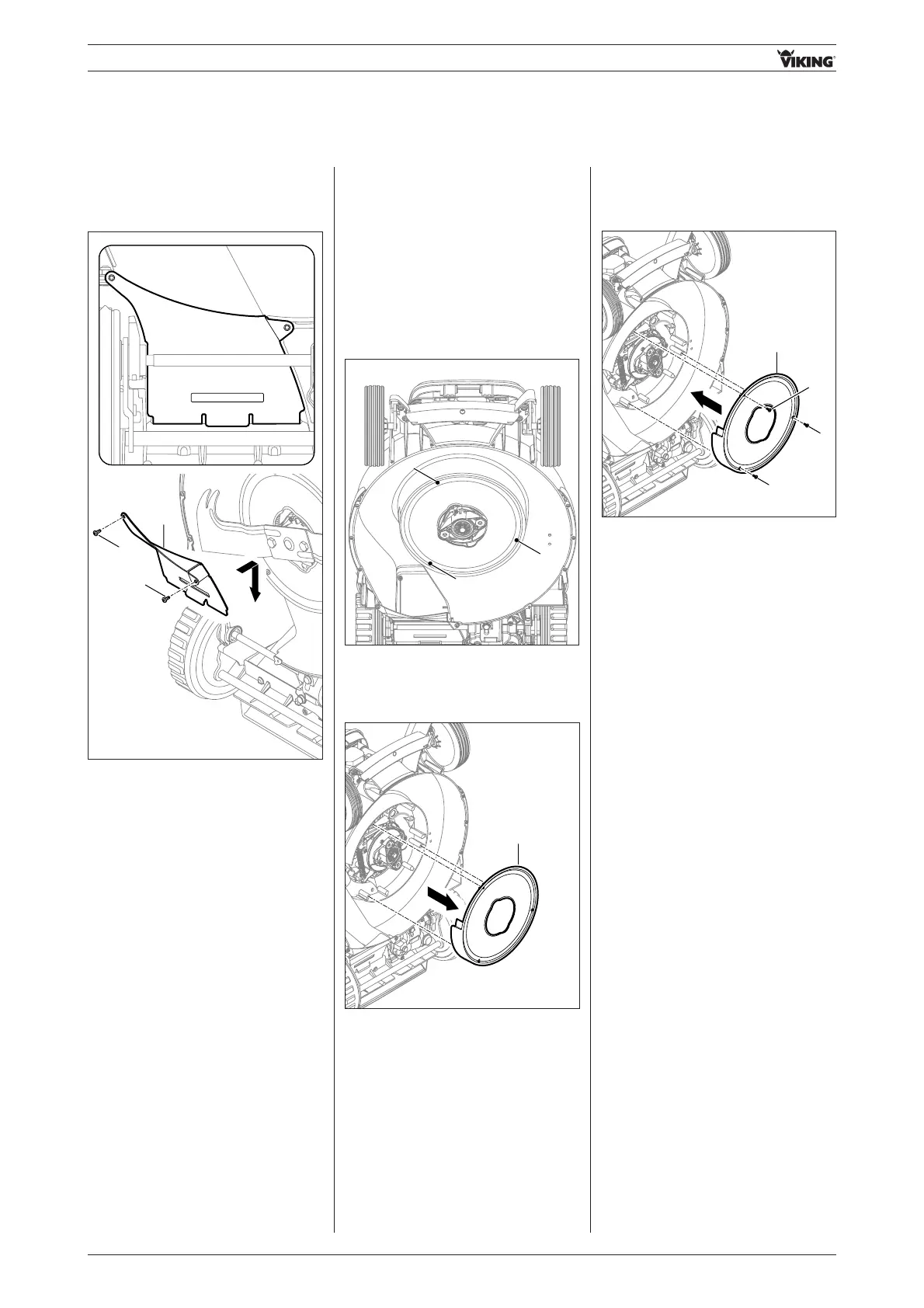

Viking MB 650 - Installing Guiding Plate; Replacing Lower Cover; Removing Lower Cover; Attaching Lower Cover

- Housing -
• Fit guiding plate 1 and tighten
bolts 2 (4-6 Nm).
1
2
2
05.11.02 Installing guiding plate
• Remove bolts 1.
1
1
1
• Fit lower cover 1 and tighten
screws 2 (6-8 Nm).
1
2
2
2
• Remove lower cover 1.
1
05.12 Replacing lower cover
05.12.01 Removing lower cover
05.12.02 Attaching lower cover
- Remove mowing blade
(see section 09.01.01)
- Install mowing blade
(see section 09.01.02)
64 RA_6360_6375_01 - EN
