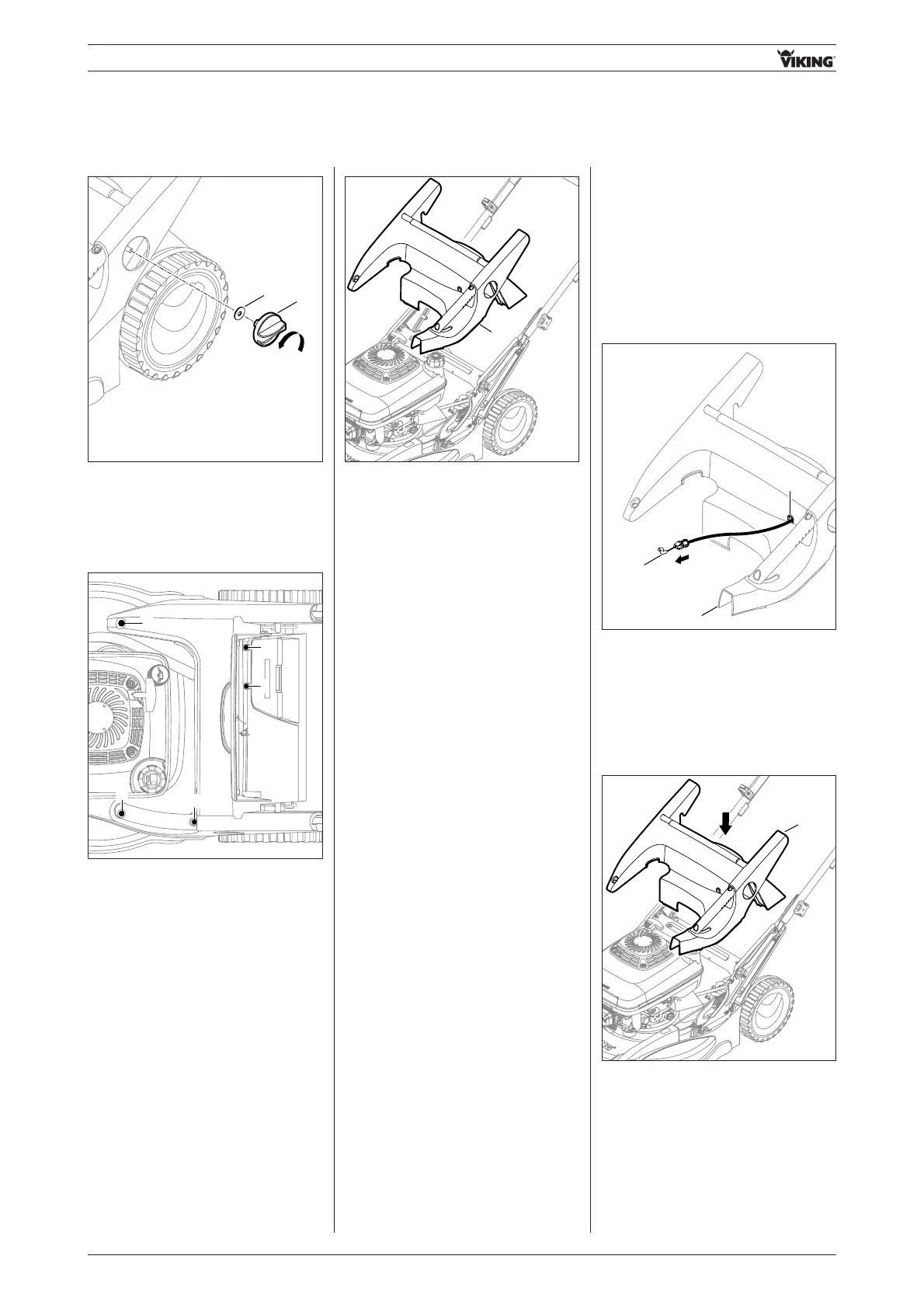

Viking MB 650 - Assembling Housing Cover Assembly; Attaching Housing Cover Assembly; Dismantling Housing Cover Assembly

- Housing -
• Lever off housing cover 1.
1
MB 650.0 T/ V/ VE/ VM,
MB 655.0 V/ VM/ G/ GM,
MB 655.1 V/ VM/ G
• Guide motorstop cable 1 through
opening A in housing 2.
1
2
A
05.02.02 Dismantling housing
cover assembly
- Remove height adjustment handle
(see section 05.03.01)
- Remove spring
(see section 05.04.01)
- Remove flap
(see section 05.05.01)
05.02.03 Assembling housing
cover assembly
- Install flap
(see section 05.05.04)
- Install spring
(see section 05.04.02)
- Install height adjustment handle
(see section 05.03.02)
05.02.04 Attaching housing
cover assembly
• Fit the housing cover 1.
1
Note:
Set the cutting height adjustment to
the highest position (position 7).
• Remove screws 1, 2. (Two screws
located under ejection flap)
1
1
1
2
1
56 RA_6360_6375_01 - EN
• Remove rotary handle 1 from
handlebar height adjustment,
remove washer 2.
1
2
