Viking MB 650 - Replacing Wheel Drive Lever Return Spring; Removing Vario Gearbox Return Spring; Installing Vario Gearbox Return Spring; Removing Three-Speed Gearbox

RA_6360_6375_01 - EN
- Gearbox -

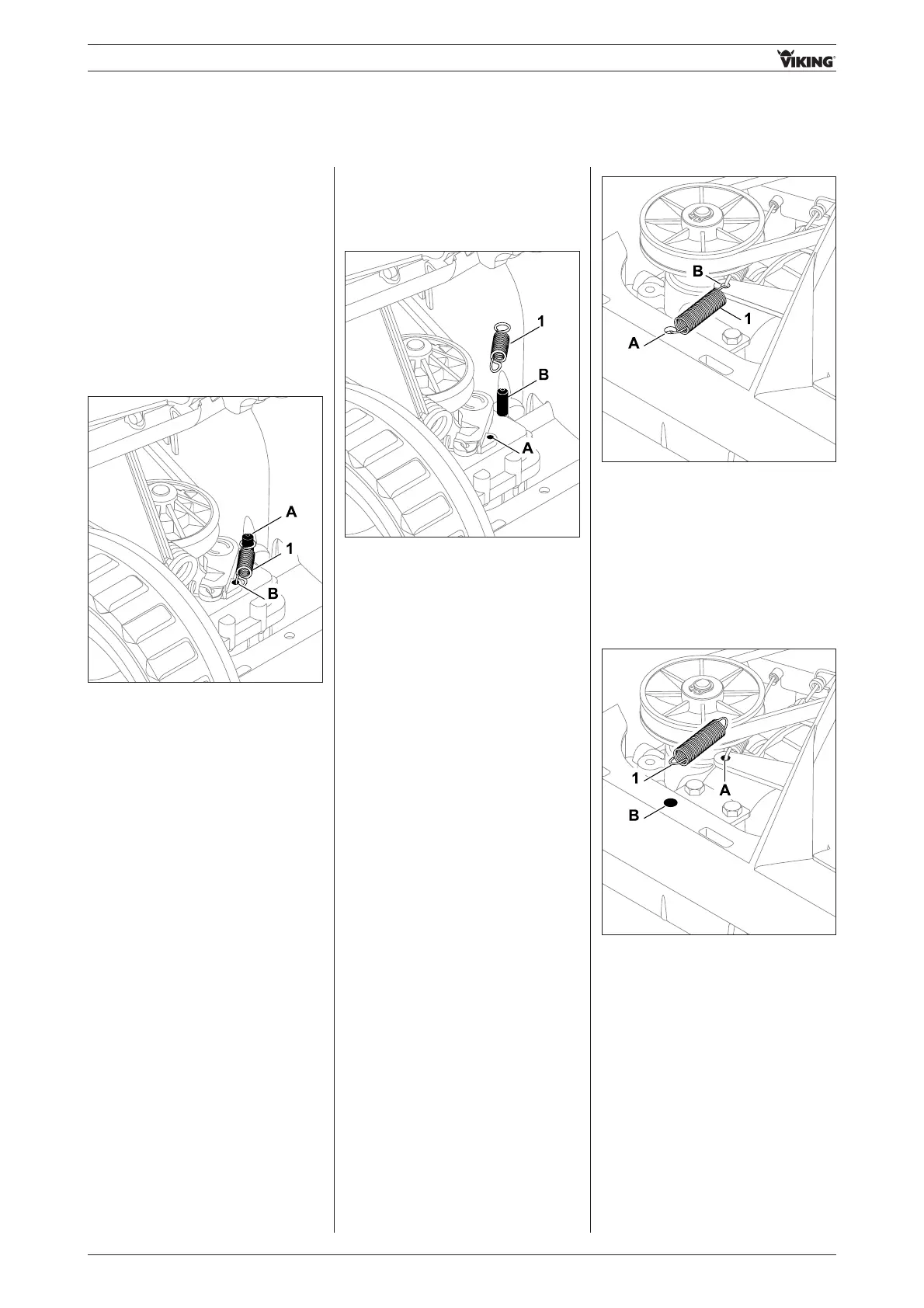

• Attach spring 1 to lever A and push
onto lug B (using long-nose pliers).
06.05.02 Installing Vario gearbox
return spring
• First detach spring 1 from housing
(bore A), then from the lever
(bore B) (using long-nose pliers).
06.05.03 Removing three-speed
gearbox return spring
- Remove housing cover assembly
(see section 05.02.01)
- Attach housing cover assembly
(see section 05.02.04)
• First attach spring 1 to the lever
(bore A), then to the housing
(bore B) (using long-nose pliers).
06.05.04 Installing three-speed
gearbox return spring
- Attach housing cover assembly
(see section 05.02.04)
• Detach spring 1 from lug A and
detach from lever B.
06.05.01 Removing Vario
gearbox return spring
06.05 Replacing wheel drive
lever return spring
- Remove housing cover assembly
(see section 05.02.01)
