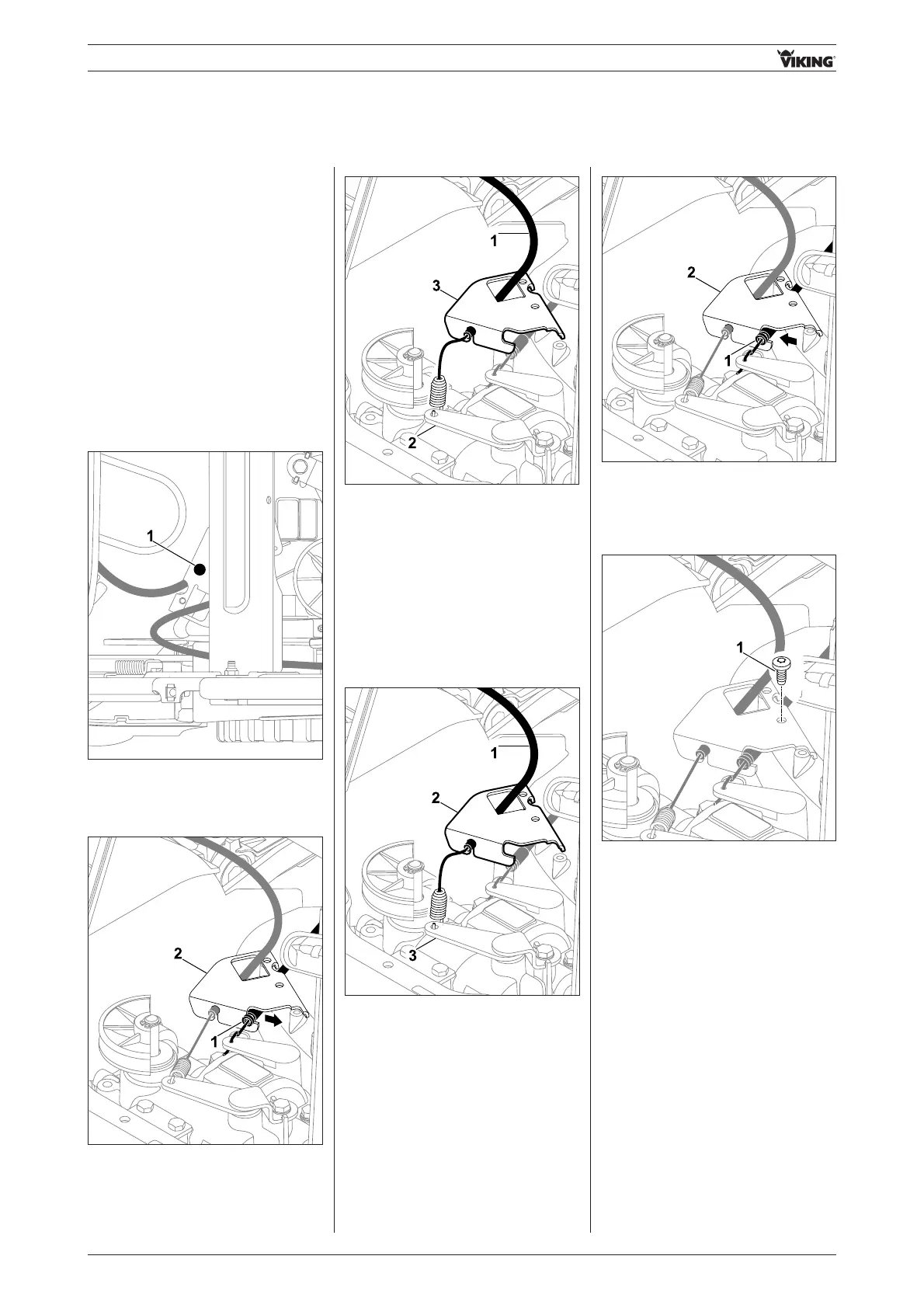

Viking MB 650 - Replacing Cable Support; Removing Cable Support; Installing Cable Support

- Gearbox -
• Guide wheel drive cable 1 through
opening in cable support 2 and
attach to lever 3.
• Clip wheel drive cable 1 into cable
support 2.
• Clip three-speed gearshift cable 1
into cable support 2.
• Tighten screw 1 (5-6 Nm).
06.06.02 Installing cable support
- Install V-belt cover
(see section 05.09.02)
• Unclip three-speed gearshift cable 1
from cable support 2.
• Detach wheel drive cable 1 from
lever 2.
• Unclip wheel drive cable 1 from
cable support 3 and remove the
cable.
• Remove screw 1.
06.06.01 Removing cable
support
06.06 Replacing cable
support
- Remove V-belt cover
(see section 05.09.01)
- Detach V-belt.
72 RA_6360_6375_01 - EN
