Viking MB 650 - Gearbox; Replacing Gearbox; Replacing V-belt Pulley

RA_6360_6375_01 - EN
- Gearbox -
06.01 Replacing gearbox
06.01.01 Removing gearbox
- Remove rear axle (with gearbox)
(see section 04.02.01)
- Dismantle rear axle
(see section 04.02.02)
06.01.02 Installing gearbox
- Assemble rear axle
(see section 04.02.03)
- Install rear axle (with gearbox)
(see section 04.02.04)
06. Gearbox
06.02 Replacing V-belt pulley
06.02.01 Removing single-
speed V-belt pulley
- Remove V-belt cover
(see section 05.09.01)

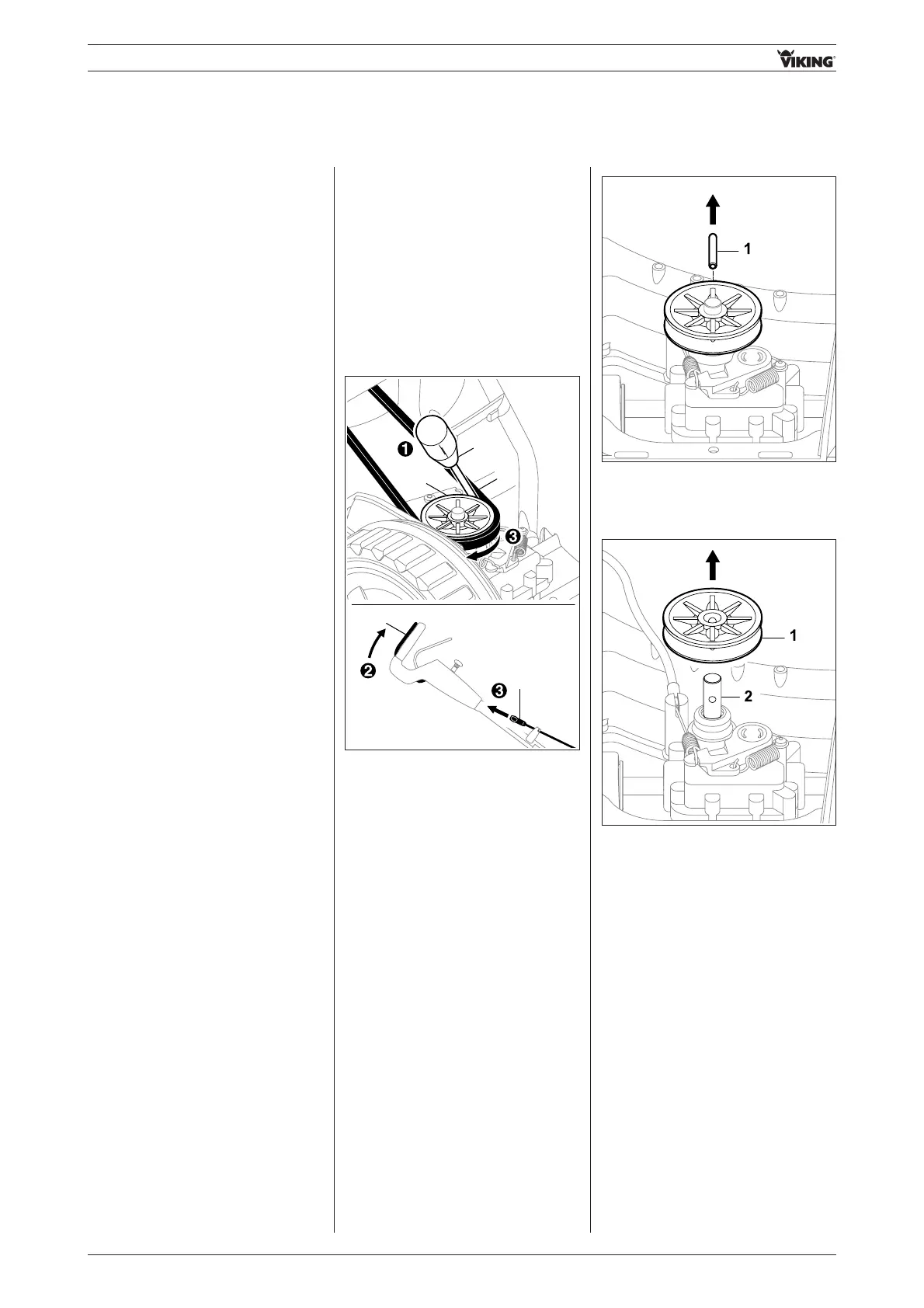

• Drive out roll pin 1.
• Push screwdriver 1 between V-belt 2
and V-belt pulley 3.
• Actuate motorstop control bar 5, in
order to release the engine brake.
• Slowly pull out starter cable 4 in
order to lift the V-belt off the V-belt
pulley.
1
3
2
4
5
• Remove V-belt pulley 1 from
gearbox 2.
65
