- Console -

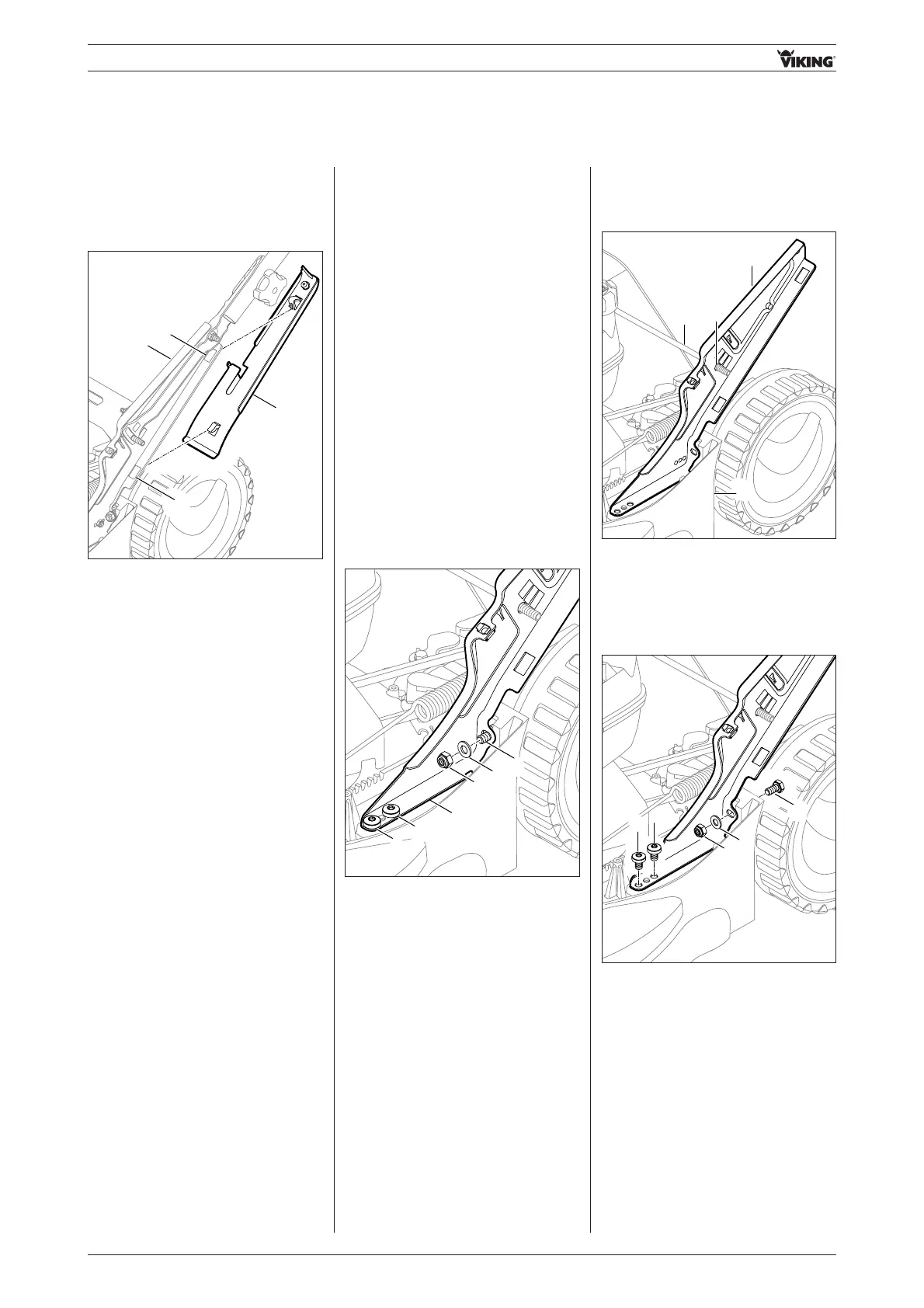

08.03 Replacing console
08.03.01 Removing left console
08.03.02 Installing left console
- Remove left lower handlebar
(see section 02.10.01)
- Remove strut
(see section 08.01.01)
- Remove left / right cover
(see section 08.02.01)
- Remove detent segment
(see section 07.04.01)
• Remove screws 1, remove nut 2,
washer 3 and bolt 4.
• Remove console 5.
• Push rod 1 through bore A of
console 2.
• Fit console 2 to housing 3.
1
2
A
3
• Tighten screws 1 (12-18 Nm).
• Insert bolt 2. Tighten nut 3 with
washer 4 (12-18 Nm).
1
4
1
2
3
08.02.02 Installing left / right
cover
- Attach housing cover assembly
(see section 05.02.04)
• Attach cover 1 to console 2
(recess A) and clip into recess B.
2
B
A
1
3
2
5
4
1
1
