- Console -

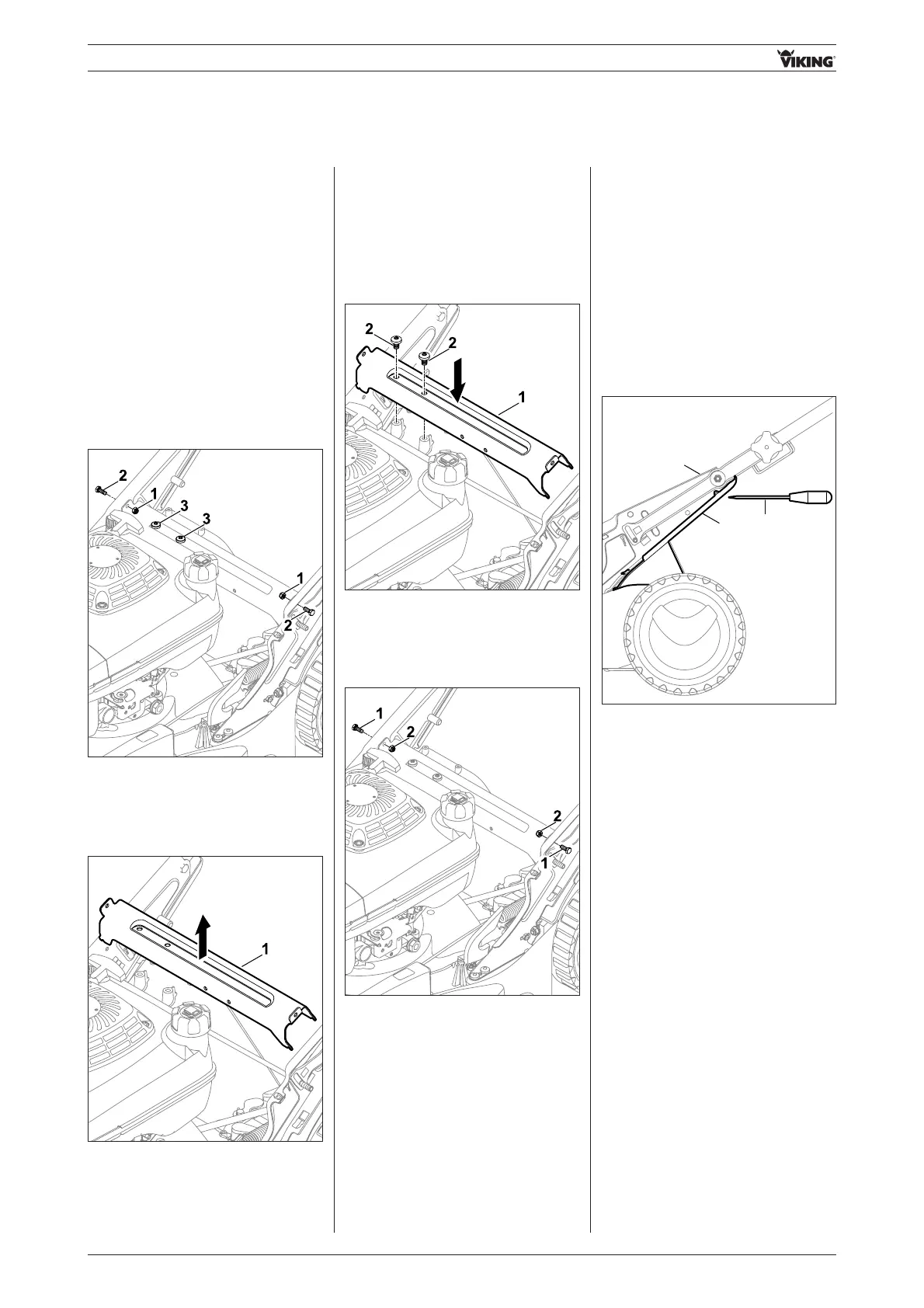

08.01 Replacing strut
08.01.01 Removing strut
- Remove housing cover assembly
(see section 05.02.01)
MB 650.0 VE
- Install starter battery
(see section 13.02.01)
MB 650.0 VE
- Remove starter battery
(see section 13.01.02)
08.02 Replacing left / right
cover
08.02.01 Removing left / right
cover
- Remove housing cover assembly
(see section 05.02.01)
- Attach housing cover assembly
(see section 05.02.04)
08. Console
• Remove nuts 1 and remove bolts 2.
• Remove screws 3.
• Detach strut 1 from console
(left / right).
08.01.02 Installing strut
- Push the handlebar apart slightly
and hold.
• Insert strut 1 in console (left / right).
• Tighten screws 2 (12-18 Nm).
• Unclip cover 1 from console 3 using
screwdriver 2.
1
2
3
• Insert bolts 1 and tighten nuts 2
(4-6 Nm).
