- Handlebar -

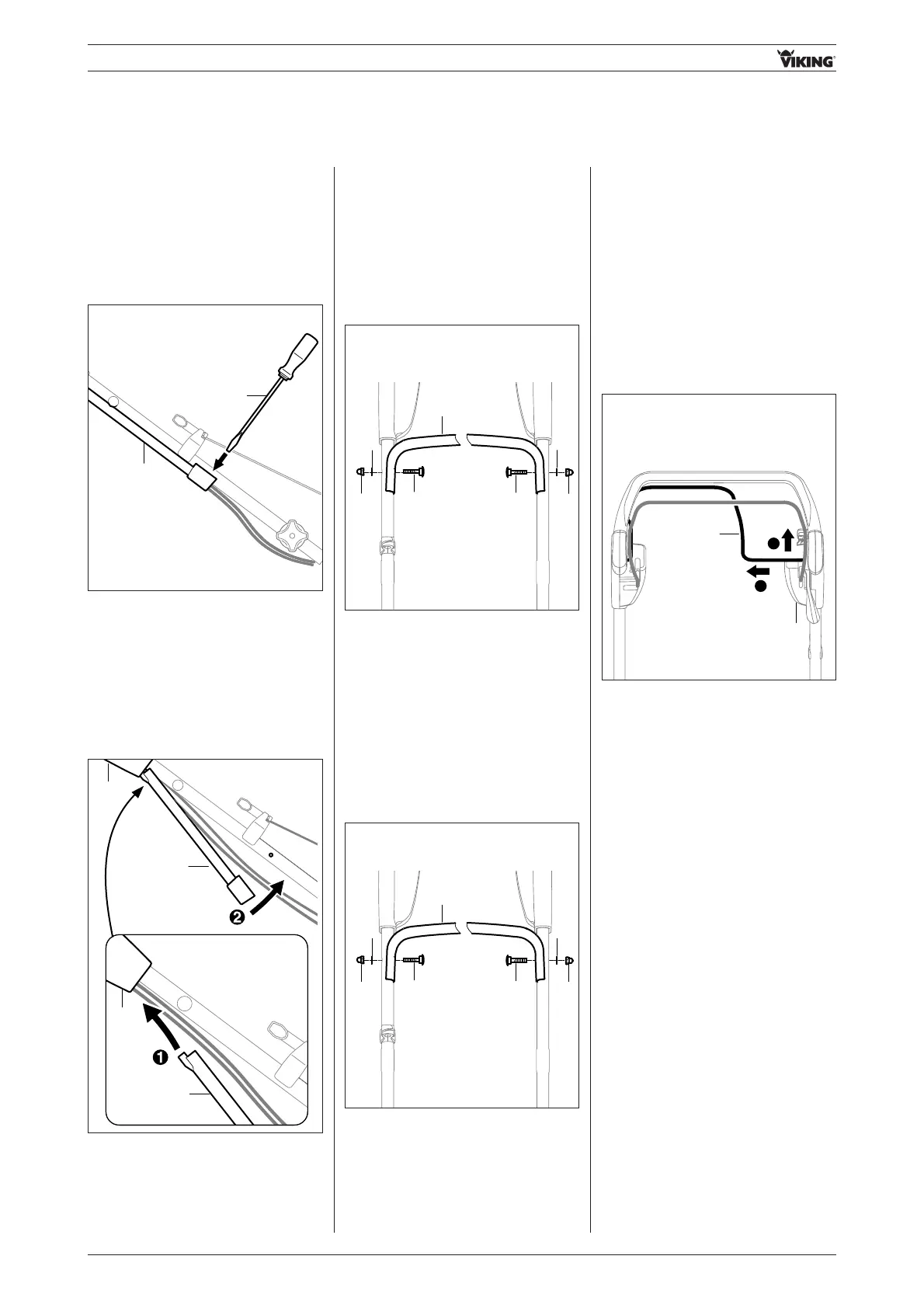

02.01 Replacing cable guide
02.01.01 Removing right / left
cable guide
02.01.02 Installing right / left
cable guide
02.02.02 Installing
reinforcement strut
02.02 Replacing
reinforcement strut
02.03 Opening housing
halves
02.02.01 Removing
reinforcement strut
• Lever off cable guide(s) 1 from
handlebar using a screwdriver 2.
• Push cable guide(s) 1 into housing 2
and clip onto handlebar.
02. Handlebar
1
2
2
1
2
1
• Remove cap nuts 1 and remove
washers 2.
• Pull out bolts 3 from handlebar and
remove strut 4.
1
2
3
4
3
2
1
•Fit strut 1 and insert bolts 2 through
handlebar.
• Install cap nuts 4 with washers 3
and tighten (8-10 Nm).
4
3
2
1
2
3
4
02.03.01 Removing inside right
housing half
- Remove right / left cable guide
(see section 02.01.01)
• Push wheel drive control bar 1 to the
left and detach from inside right
housing half 2.
• Pull wheel drive control bar 1
upwards and rest on right housing
halves.
1
2
2
1
