Viking MB 650 - Assembling Blade Mounting; Blade Clutch; Dismantling Blade Mounting; Installing Blade Mounting

- Blade clutch -
- Remove lower cover
(see section 05.12.01)
- Lock the engine shaft using a
suitable tool (see engine repair
manual).
11. Blade clutch
- Install lower cover
(see section 05.12.02)
11.01 Replacing blade
mounting
11.01.01 Removing blade
mounting
- Remove clutch shoes
(see section 11.05.01)
11.01.02 Dismantling blade
mounting
- Install clutch shoes
(see section 11.05.02)
11.01.03 Assembling blade
mounting
11.01.04 Installing blade
mounting

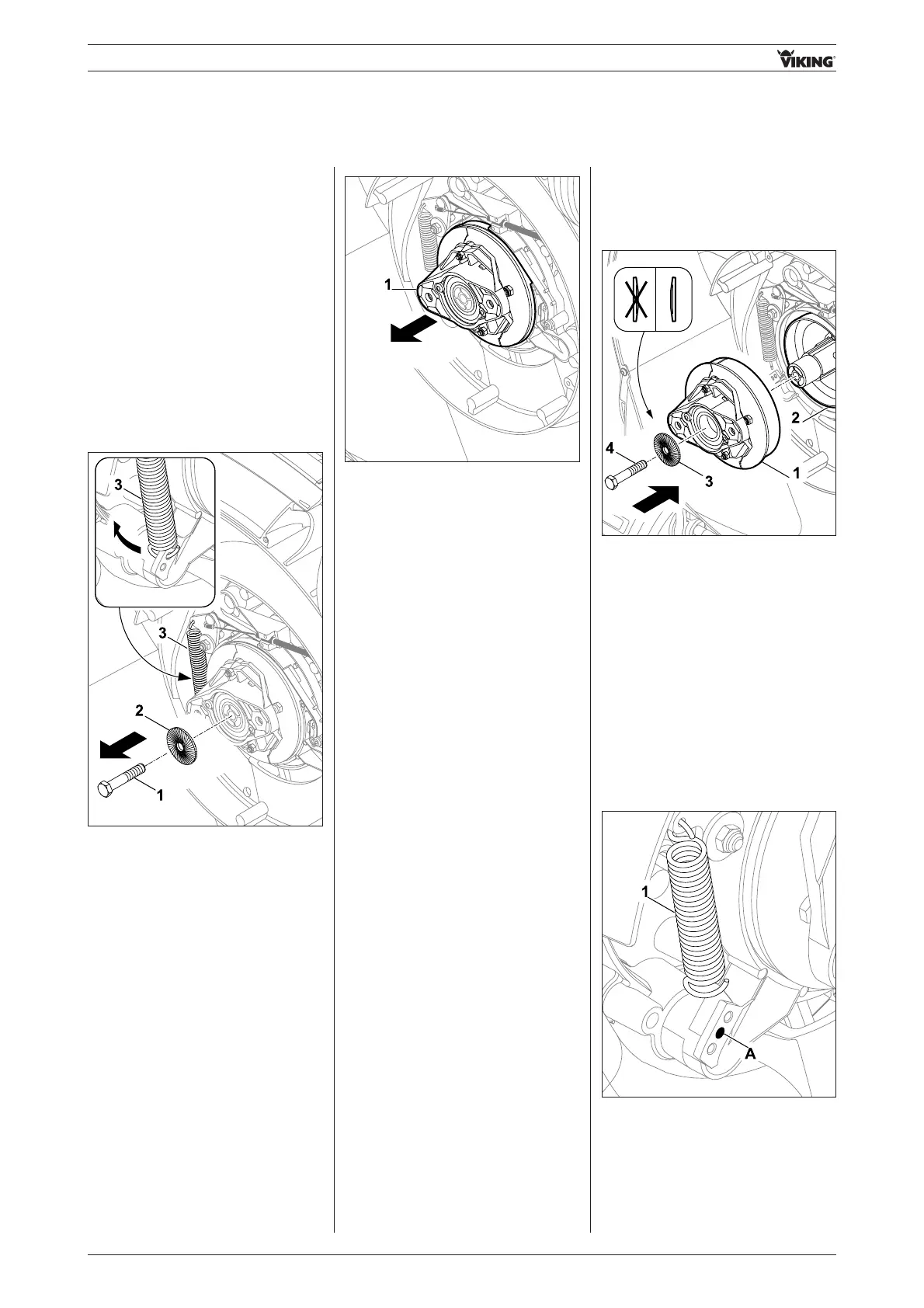

• Remove bolt 1 (use an impact
driver), remove spring washer 2.
• Detach tension spring 3 from the
clutch flange using long-nose pliers.
• Remove blade mounting 1 from
clutch drum.
• Push blade mounting 1 onto clutch
drum 2 (press clutch shoes
together and ensure that brake
band is not pinched).
• With the engine shaft locked (see
engine repair manual), tighten bolt 4
with spring washer 3 (60-65 Nm,
Loctite 243, use an impact driver).
• Insert blade clutch spring 1 in
bore A (centre bore) using long-
nose pliers.
Note:
Ensure correct position of spring
washer 2 (conical).
