Volvo XC70 2012 - Page 300

TP 39217202 XC70(08-) & S80(07-) 2012 300

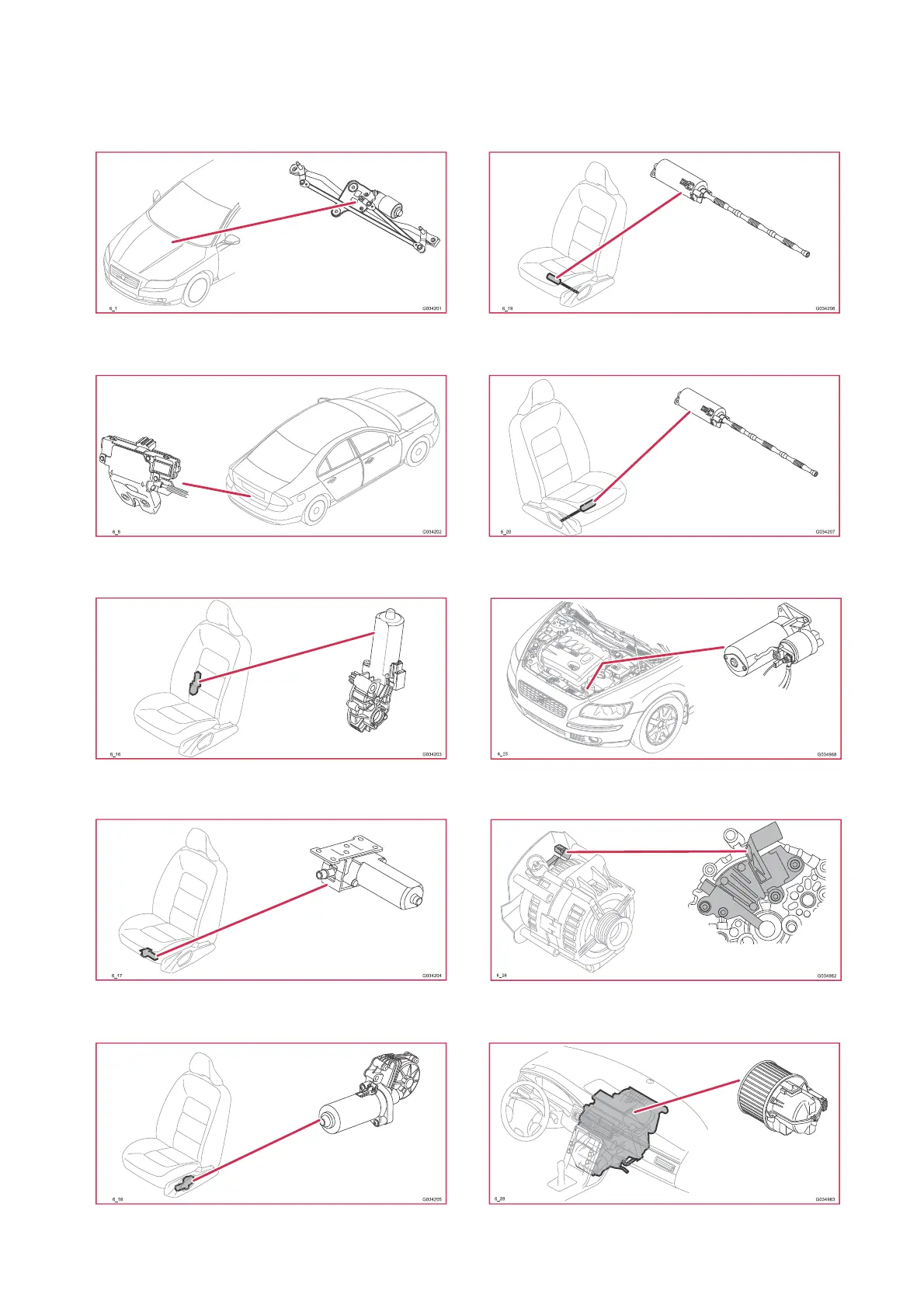

Component illustrations
6/1 - 6/28
6/1 Wiper Motor Module (WMM)
6/8 Central locking motor, trunk lid
6/16 Driver seat motor, backrest angle
6/17 Driver seat motor, up/down front edge
6/18 Driver seat motor, up/down rear edge
6/19 Driver seat motor, forward/backward
6/20 Passenger seat motor,
forward/backward
6/25 Starter motor
6/26 Alternator Control Module (ACM)
6/28 Motor, passenger compartment fan
