TP 39217202 XC70(08-) & S80(07-) 2012 301

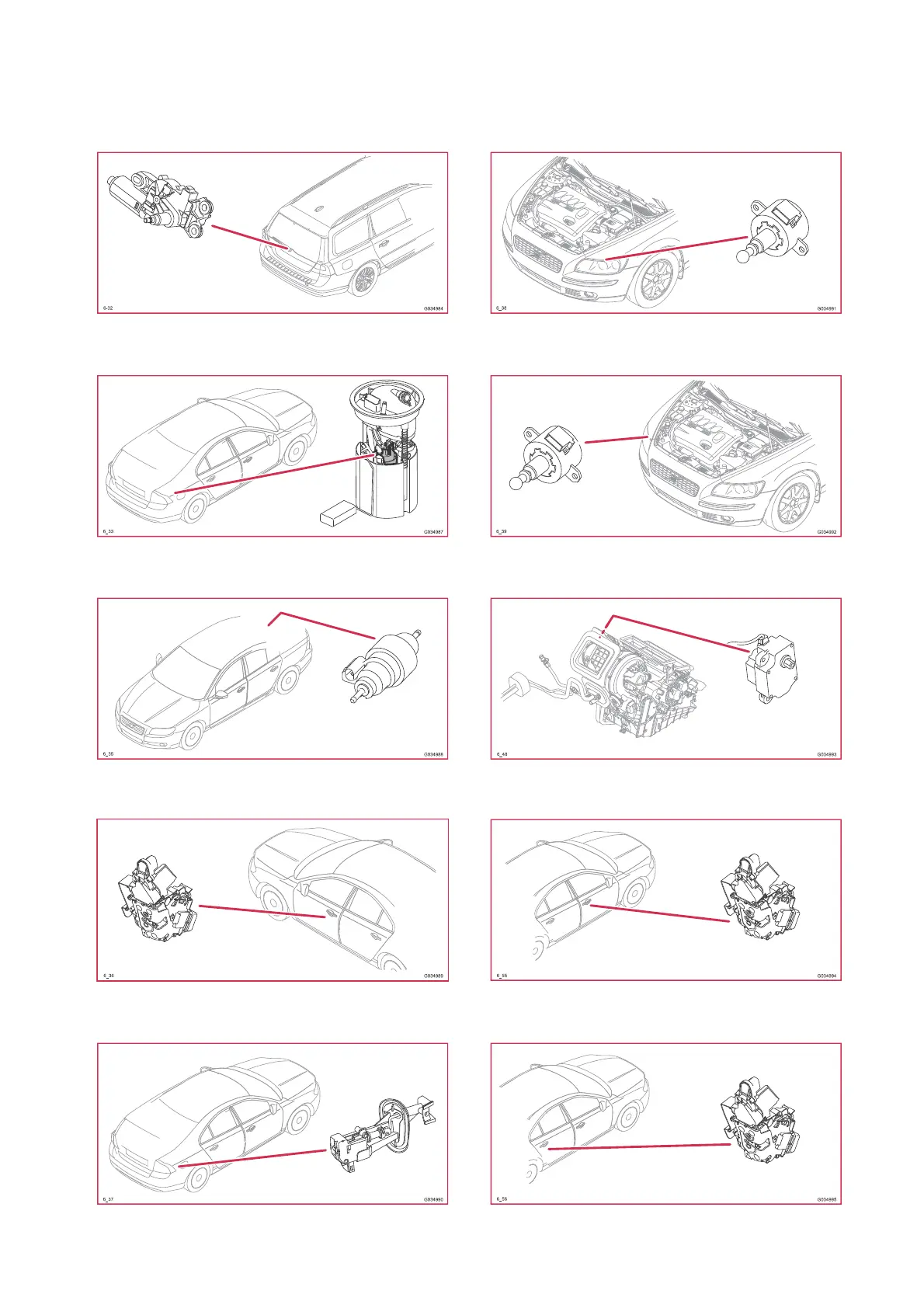

Component illustrations
6/32 - 6/56
6/32 Rear window wiper motor, V70
6/33 Fuel pump
6/35 Fuel pump, auxiliary heater
6/36 Lock motor, central locking, LH front
door
6/37 Lock motor, fuel filler cover
6/38 Left-hand headlight level adjustment
motor
6/39 Right-hand headlight level adjustment
motor
6/48 Damper Motor Module (DMM),
recirculation
6/55 Lock motor, central locking, RH front
door
6/56 Lock motor, central locking, RH rear
door
