TP 39217202 XC70(08-) & S80(07-) 2012 309

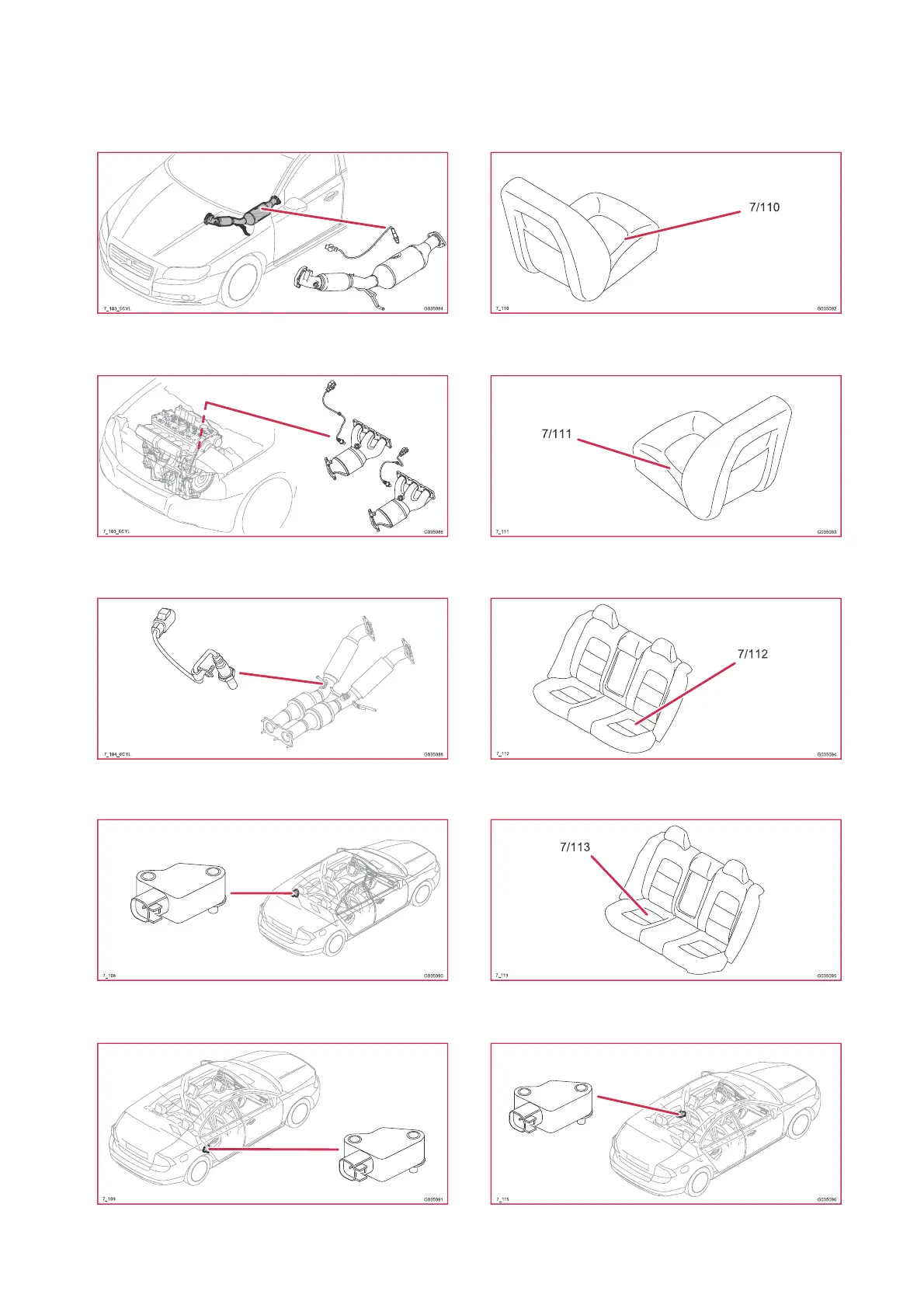

Component illustrations
7/103 - 7/115
7/103 Rear heated oxygen sensor, 5-Cyl.
7/103 Front oxygen sensor, bank 2, 6-Cyl.
7/104 Rear oxygen sensor, bank 2, 6-Cyl.
7/108 Left-hand rear side impact sensor
7/109 Right-hand rear side impact sensor
7/110 Temperature sensor, driver’s seat
7/111 Temperature sensor, passenger seat
7/112 Seat temperature sensor, LH rear
7/113 Seat temperature sensor, RH rear
7/115 Side impact sensor, left B-post
