TP 39217202 XC70(08-) & S80(07-) 2012 339

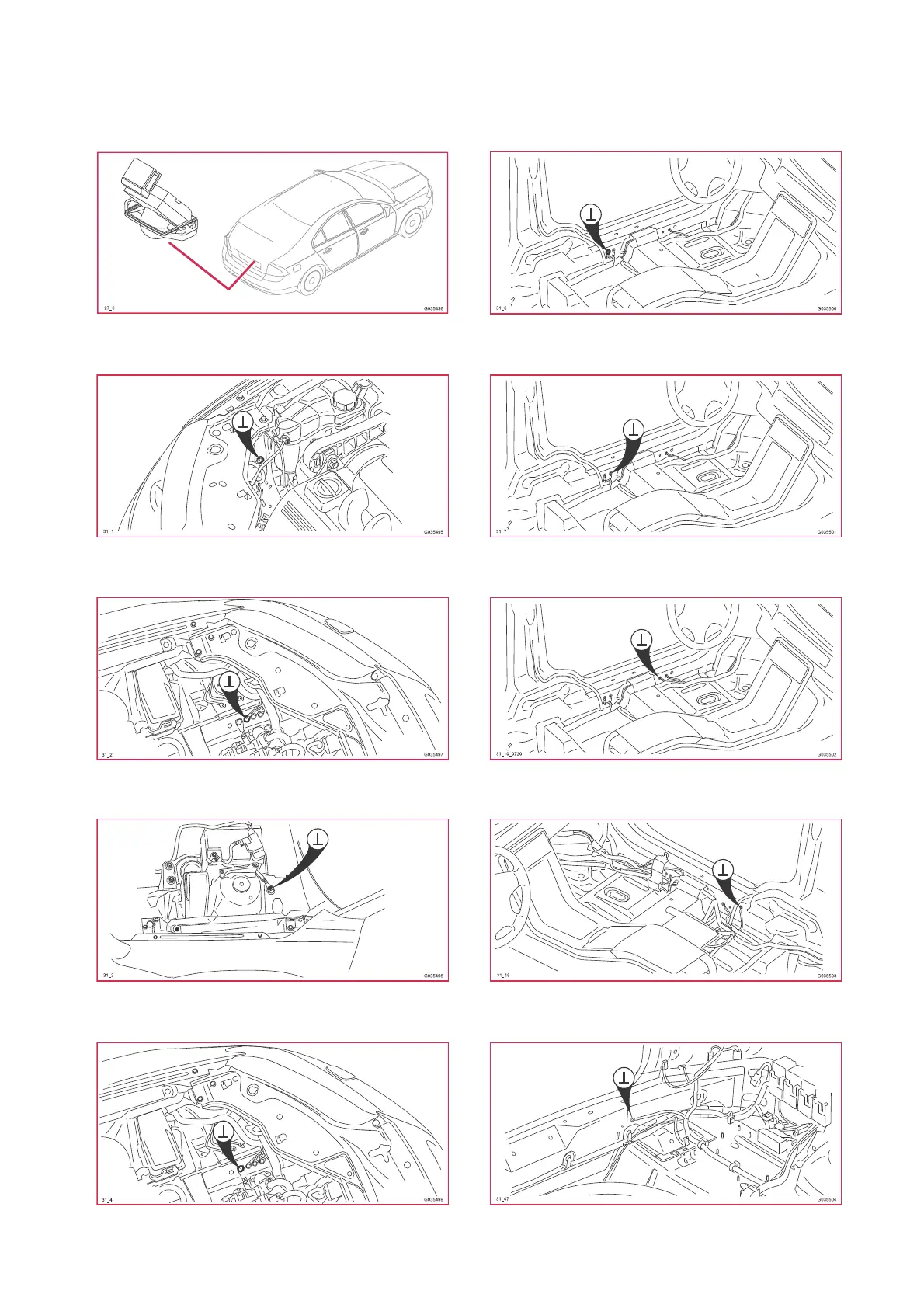

Component illustrations
27/6 - 31/47
27/6 Camera
31/1 Ground connection, PTC
31/2 Ground connection, Left wheel
housing
31/3 Ground connection, Body battery
31/4 Ground connection, engine
31/6 Ground connection, Left bottom rail
31/7 Ground connection, Left bottom rail
31/10 Ground connection, Left bottom rail
31/15 Ground connection, Right bottom rail
31/47 Ground connection, Left rear bumper
abutment
