TITANUS MICRO·SENS
®
Installation
06/13
103
outlet aperture which in this case is facing upwards. For that reason, use a
short pipe angled downwards.
WARNING
With aspiration from below, the housing cover on the TITANUS MI-
CRO·SENS
®
must be turned by 180°.

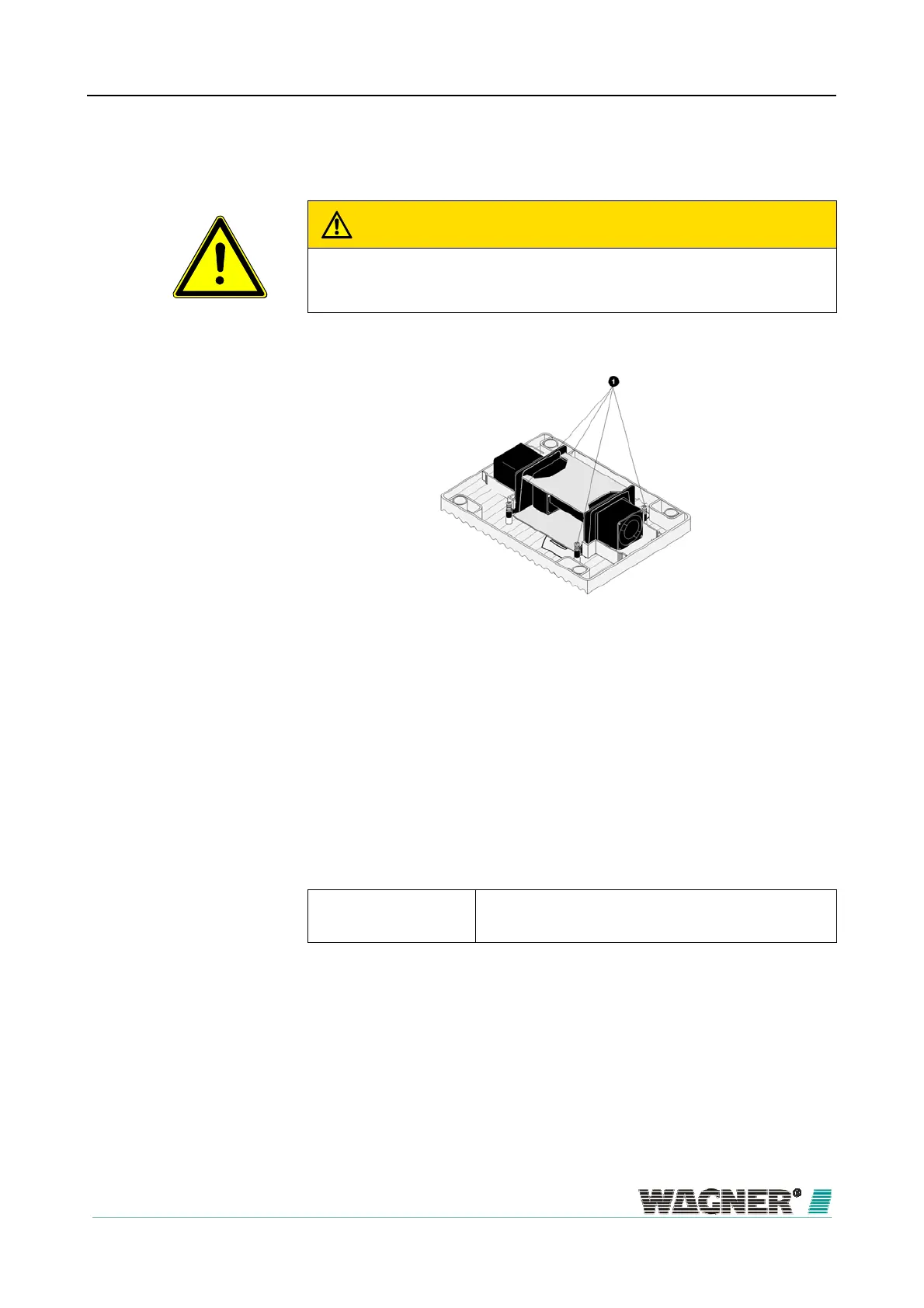

Figure 60: Turn the cover of the TITANUS MICRO·SENS
®
detection unit
To turn the cover of the TITANUS
MICRO·SENS
®
detection unit by 180o, the
following steps must be taken:
1. Turn cover (Position as shown in Figure).
2. Now turn the cover and fix the detection unit again with the 4 screws.
TITANUS
®
Cylinder or flat head screws
– Thread diameter: max. 4 mm
– Head diameter: max. 8 mm
The dimensions (all dimensions in mm) of the holes for fixing the TITANUS
MICRO·SENS
®
are shown in the following Figures.
Turn cove
r
Installation equipmen
t
Hole distances
