Exchanging the air filter for the device base

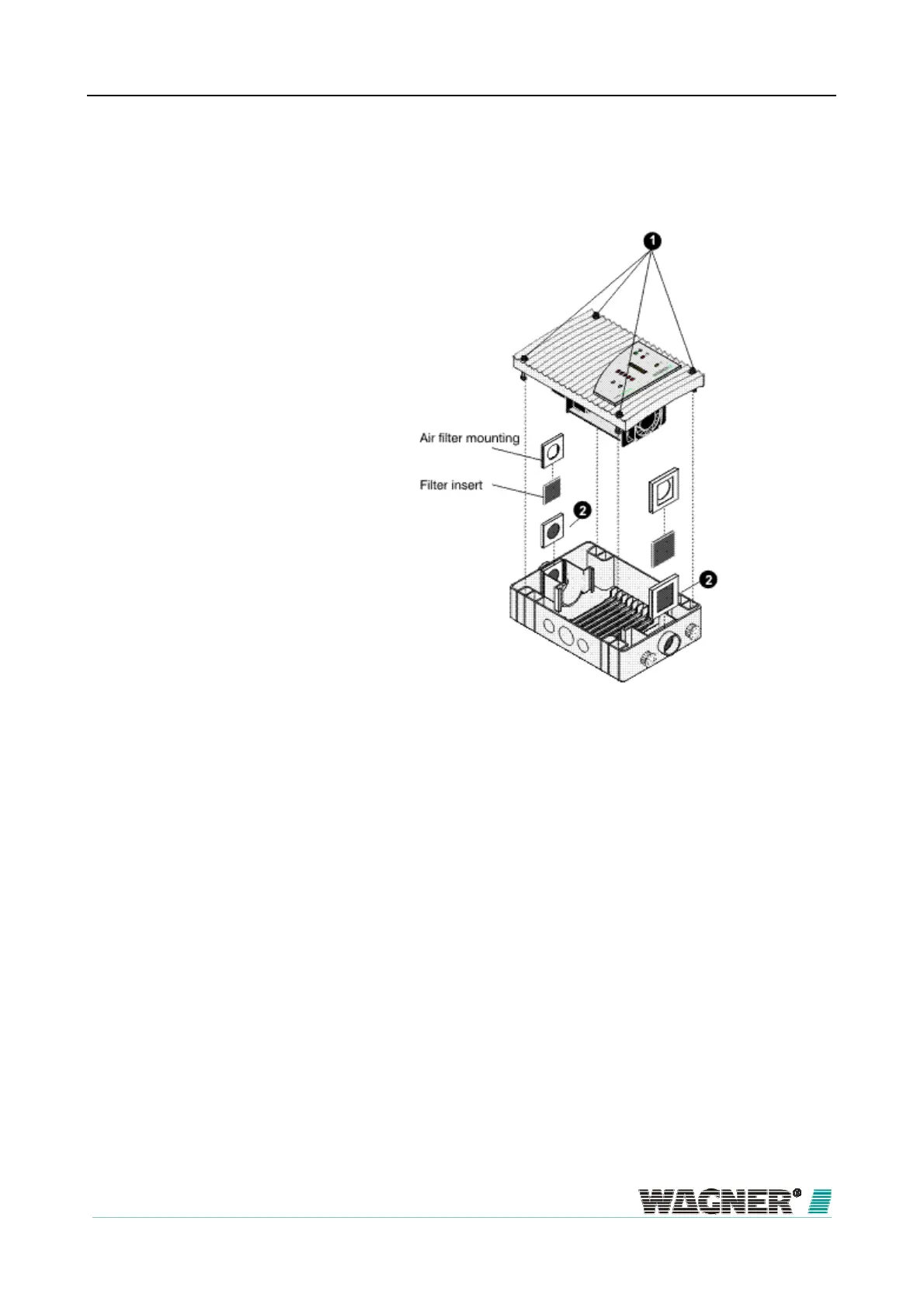

Figure 109: Exchanging the type AF-HBTM air filter in the TITANUS MICRO·SENS
®
device base
1. With the aid of a screwdriver, loosen the four screws on the detection
unit and remove it from the device base.
2. Pull both filter mountings out of the device base and remove the filter in-
serts. Conduct a visual check for dirt and if necessary change the filters.
Then replace the filter mounting.
3. Now with the aid of a screwdriver screw the four screws on the detection
unit down again firmly.
4. The device initialises automatically when the jumper X4 is changed.
