Data Logging
A simple device check can be run using the diagnostic tool. By reading mes-
sages and statuses, the diagnostic program offers a considerably simplified
service. DIAG 3 can be fastened to the TITANUS
MICRO·SENS
®
by an de-
vice bracket or attached in a straight line (±10°) of up to 3 m distance to the
infrared interface.
The data are read via an infrared interface on the TITANUS
MICRO·SENS
®
using the DIAG 3 which is connected to the USB interface on the PC by a
USB cable.
Commissioning of the diagnostic software is described in Chapter “Commis-
sioning”.

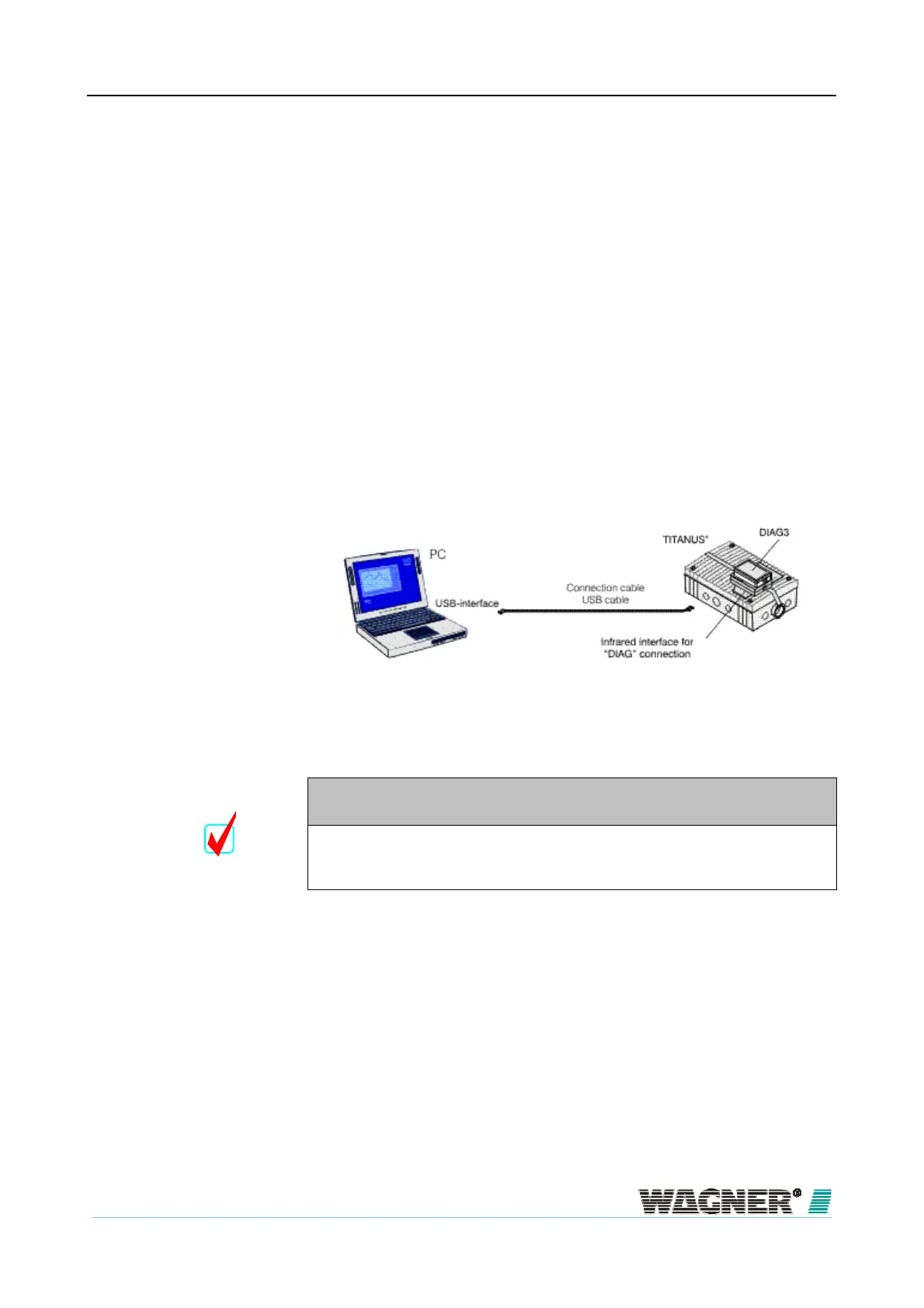

Figure 88: Connecting a PC to the TITANUS MICRO·SENS
®
TIP
It is recommended that, in order to check the device settings later, they are
stored and archived after commissioning.
