U-Pipe system

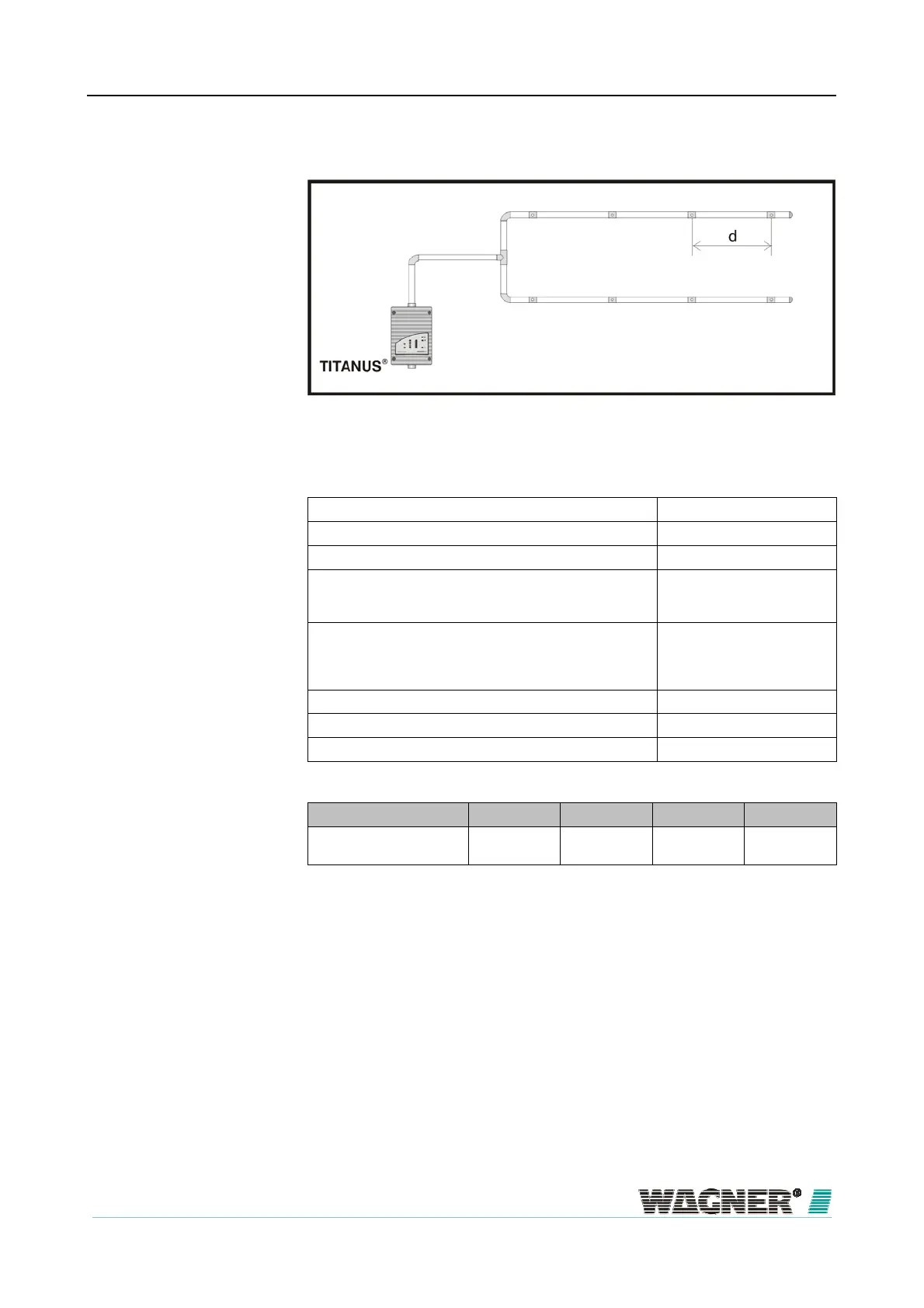

Figure 48: U-Pipe system, e.g. for equipment protection
min. distance TITANUS
®
– T piece 2 m
max. distance TITANUS
®
– T piece 20 m
max. branch length 25 m
max. overall pipe length per pipe system
pipe ∅ 25 mm plus
pipe ∅ 12 mm
50 m
8 x 3 m
max. overall pipe length per pipe system per
with high fan voltage 9,0 V
Rohr ∅ 25 mm plus
pipe ∅ 12 mm
40 m
8 x 3m
max. number of aspiration apertures (n) per pipe system 8 no.
min. distance between 2 aspiration apertures (d) 0.1 m
max. distance between 2 aspiration apertures (d) 4 m
Number of apertures 2 4 6 8
Aspiration apertures ∅
in mm*
6,0 4,2 3,4 3,0
*) Press cut diameter in aspiration-reducing film sheet
5.3.2.2
1 Pipe system
Limit values
A
spiration apertures
