WAGNER Titanus Micro-Sens - Connecting the Reaction Indicator to the TITANUS MICRO·SENS

Installation
TITANUS MICRO·SENS
®
130
06/13
Connecting the reaction indicator to the TITANUS
MICRO·SENS
®
Connect the reaction indicators via terminal block 7b and 8b indicator bus on
the TITANUS
MICRO·SENS
®
device base unit. Power is supplied by the TI-
TANUS
MICRO·SENS
®
.

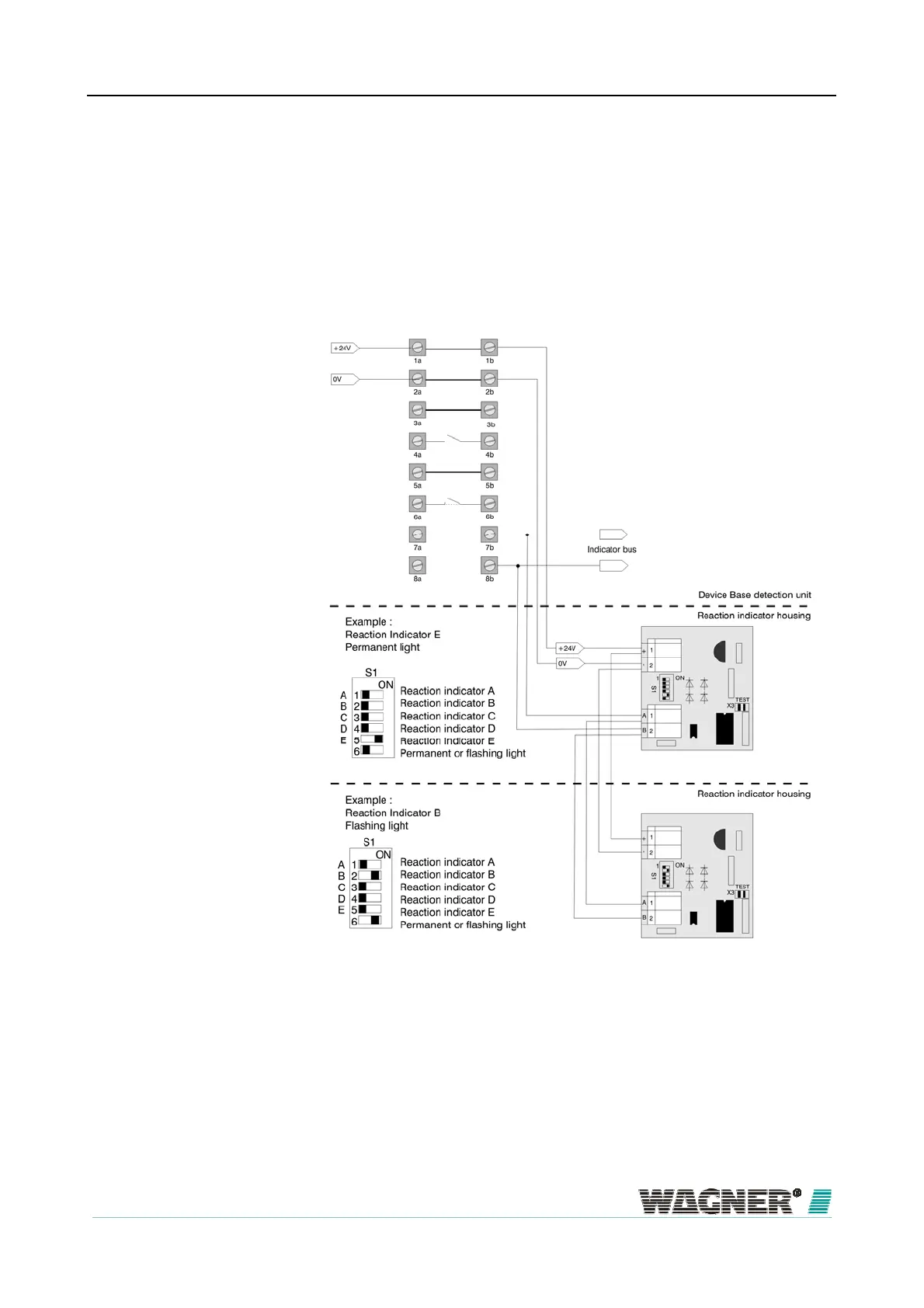

Figure 84: Connecting the reaction indicators to TITANUS MICRO·SENS
®
6.10.2
