Design
TITANUS MICRO·SENS
®
78
06/13
Special project planning
Project planning for individual aperture monitoring
The following system parameters apply to the detection of an individual or a
particular number of blocked aspiration apertures, depending on pipe con-
figuration.
The specifications according to Chapter „Planning“ apply to project planning.
The following limit values and aperture diameters should also be taken into
account. Additional accessories (air filters, condensation separators, etc.)
can influence the maximum pipe length.
I-Pipe system

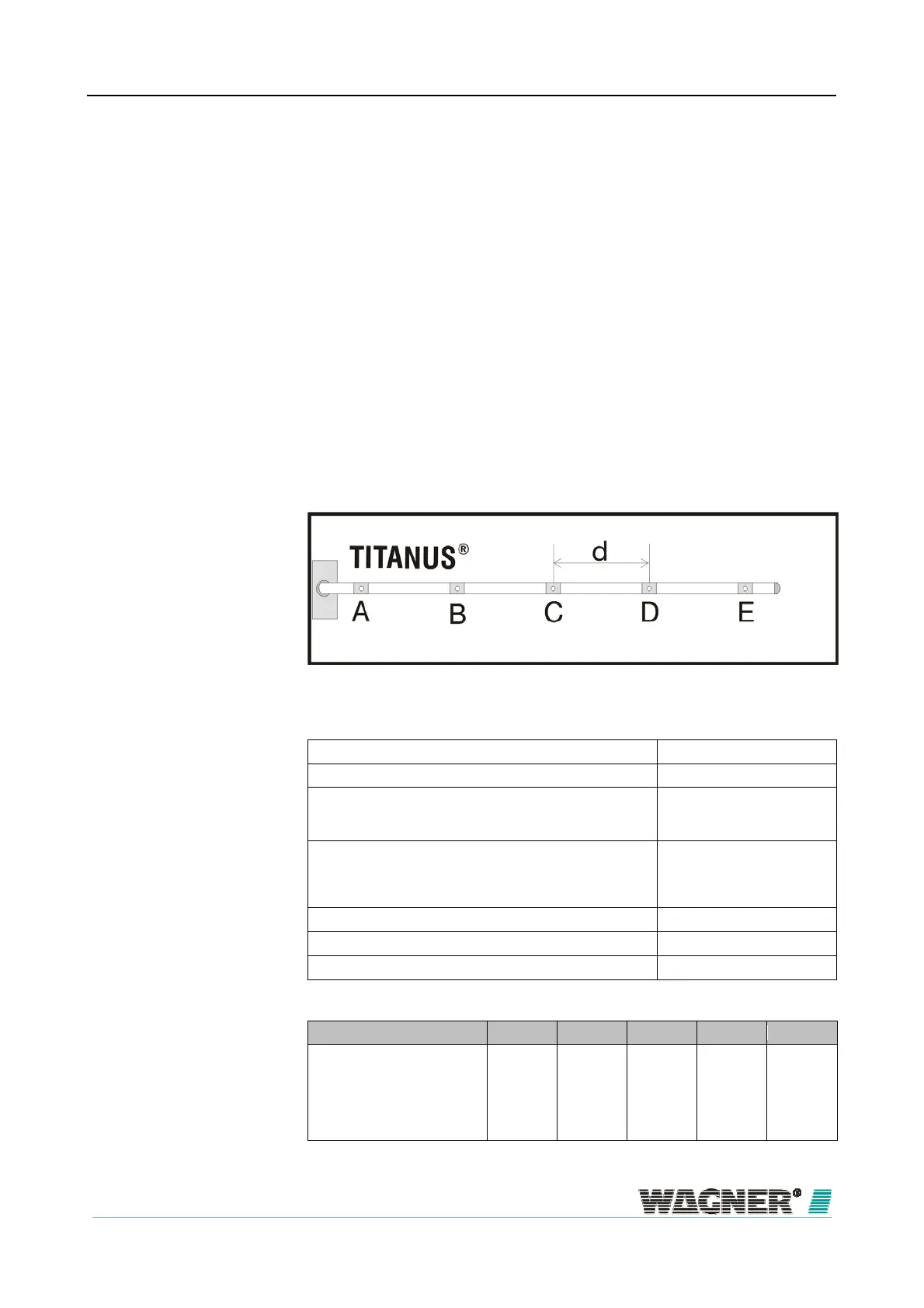

Figure 43: I-Pipe system for area protection
min. distance TITANUS
®
– 1st aspiration aperture 2 m
max. distance TITANUS
®
– 1st aspiration aperture 20 m
max. overall pipe length per pipe system
pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
5 x 3 m
max. overall pipe length per pipe system per
with high fan voltage 9,0 V
pipe ∅ 25 mm plus
pipe ∅ 12 mm
30 m
5 x 3m
min. distance between 2 aspiration apertures (d) 4 m
max. distance between 2 aspiration apertures (d) 10 m
max. number aspiration apertures (n) per pipe system 5 no.
Number of apertures 1 2 3 4 5
Aspiration apertures ∅ in mm*
A
B
C
D
E
6,8
—
—
—
—
4,6
5,0
—
—
—
4,0
4,2
4,4
—
—
3,4
3,6
3,8
4,0
—
3,0
3,2
3,4
3,6
3,8
*) Press cut diameter in aspiration-reducing film sheet
5.3
5.3.1
5.3.1.1
1 Pipe system
Limit values
A
spiration apertures
