WAGNER Titanus Micro-Sens - 6.10 Reaction Indicators Installation

Installation
TITANUS MICRO·SENS
®
128
06/13
Reaction indicator
Addressing the reaction indicators

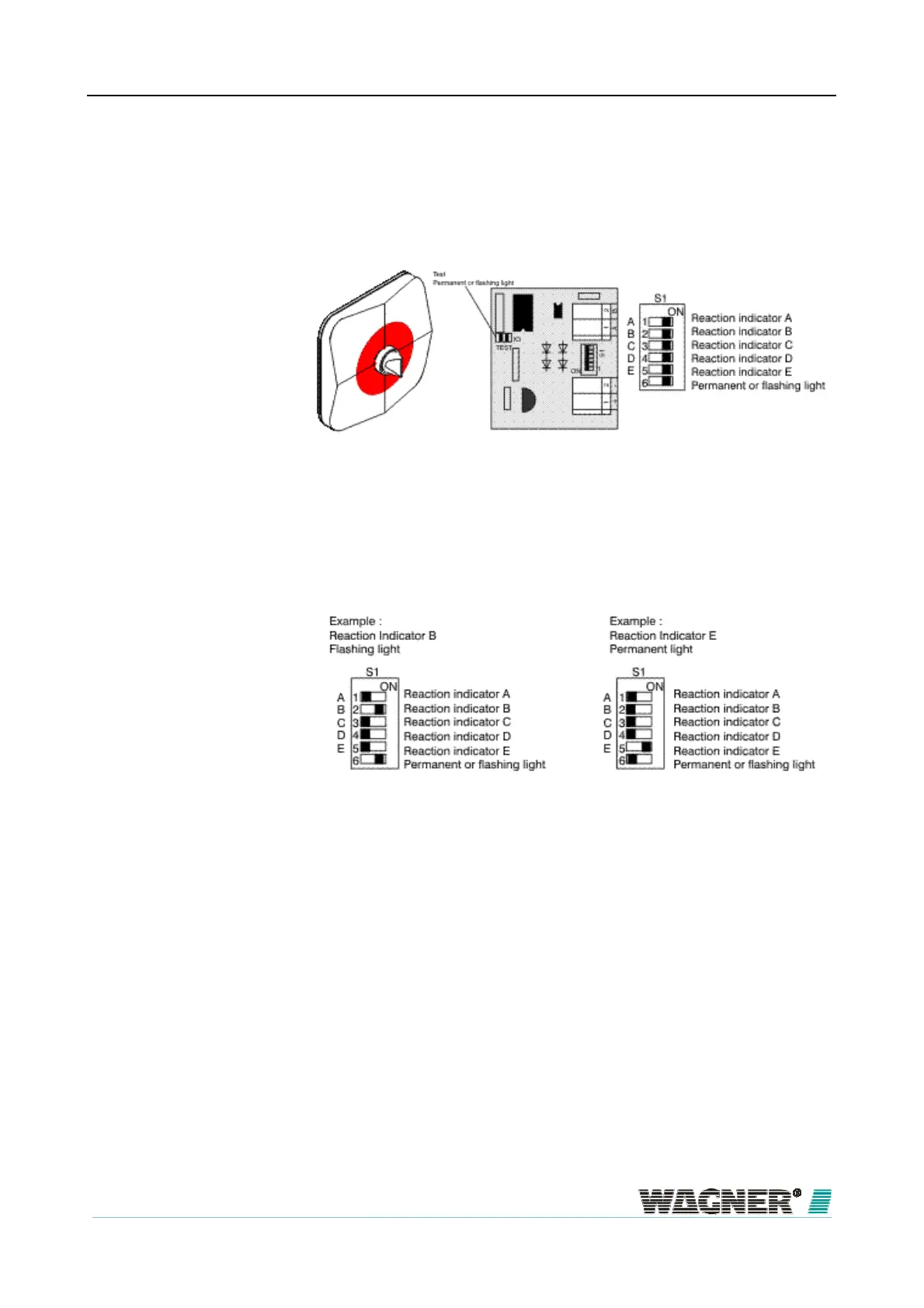

Figure 81: Reaction indicator board with fire location
Addressing the up to 5 reaction indicators happens by setting up switch S1
on the board.
Figure 82: Example of addressing the reaction indicators
6.10
6.10.1
