Monitoring in forced air flow systems
(ventilation or climatic applications)
Detection at air inlets/outlets
NOTICE
If aspiration takes place in a forced air flow system (ventilator, climatic sys-
tems), the air sampling points must be positioned in the air flow. Place the
air sampling points as shown in following figure.

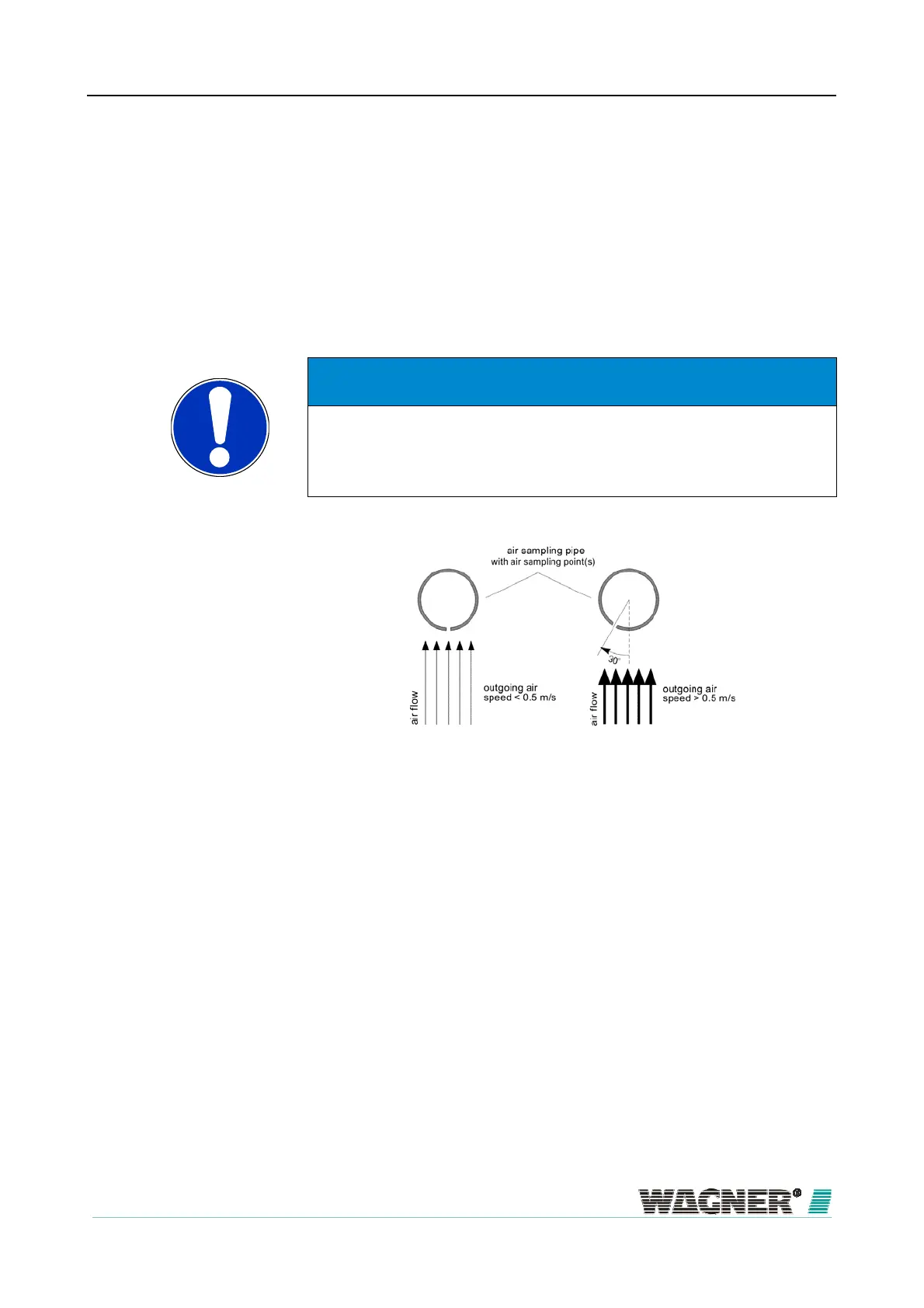

Figure 94: Positioning of air sampling point, depending on air speed
