WAGNER Titanus Micro-Sens - 6.2.2 Connecting the Air Sampling Pipe

Installation
TITANUS MICRO·SENS
®
104
06/13

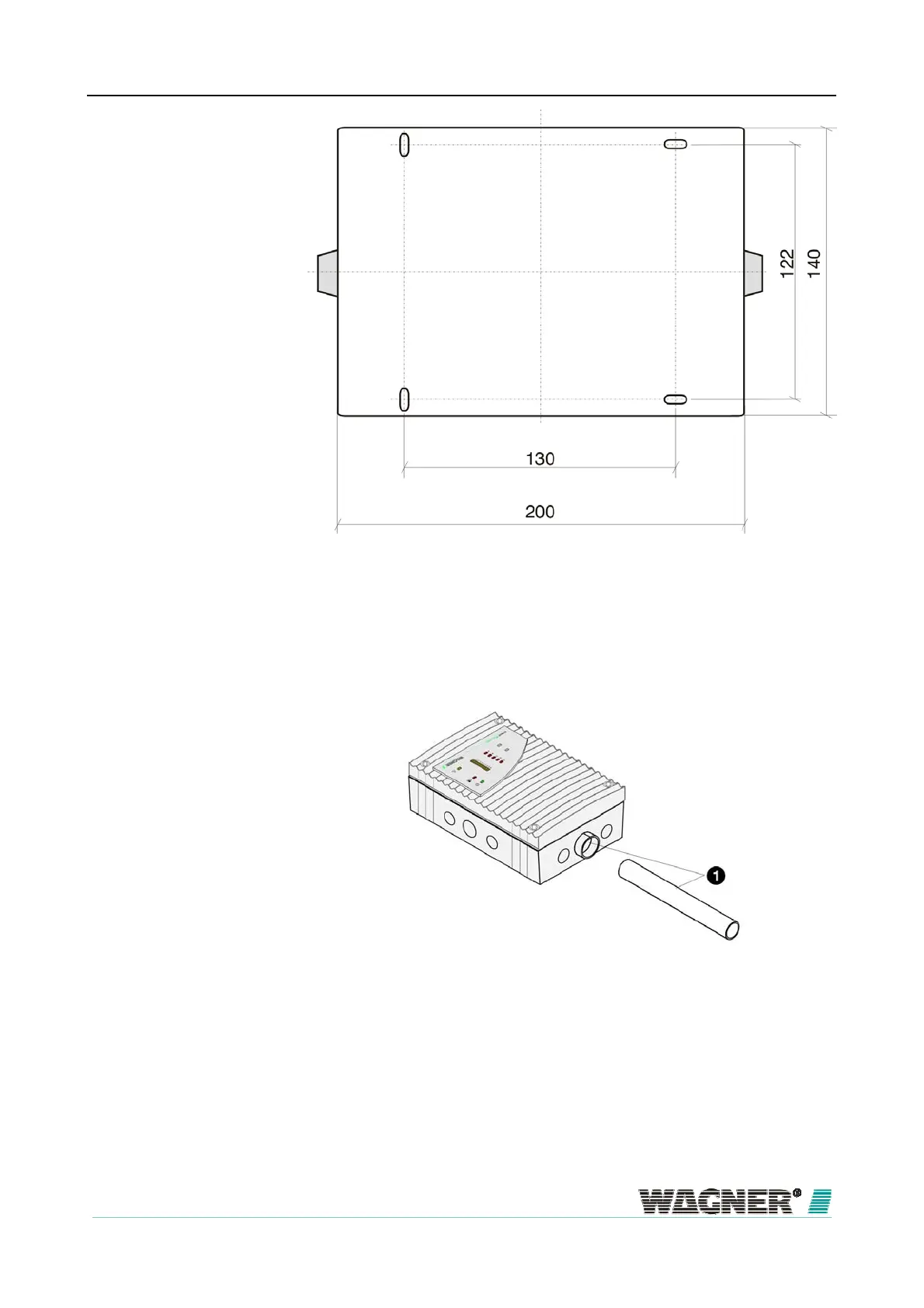

Figure 61: Hole distances TITANUS MICRO·SENS
®
base unit
Connecting the air sampling pipe
Figure 62: Connecting the air sampling pipe to the TITANUS
®
When connecting the air sampling pipe to the TITANUS MICRO·SENS
®
the
following steps must be taken:
1. To join the air sampling pipe to the TITANUS MICRO·SENS
®
push it into
the pipe connection provided for the purpose.
6.2.2
Connecting the
air sampling pipe
