TITANUS MICRO·SENS
®
Technical Description
06/13
51
Air return for pressure differences and air pollution

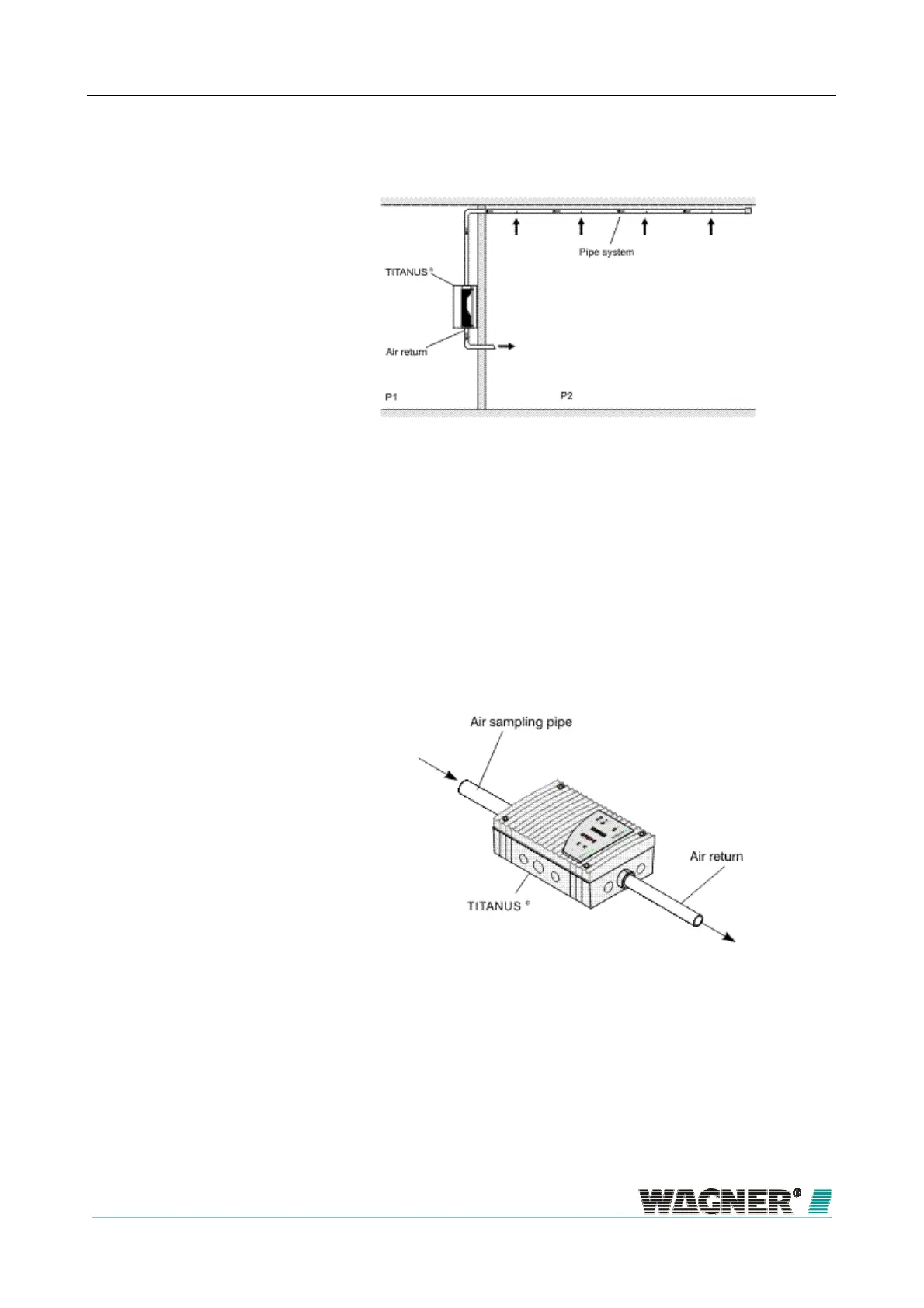

Figure 32: Principle of air return with TITANUS MICRO· SENS
®
If TITANUS
MICRO·SENS
®
and the pipe system are installed in two areas -
P1 and P2 – each with different air pressures, the air must be returned to the
pressure area of the pipe system. The air return can be used for pressure
compensation or in order to keep the air clean (e.g. from odours) in adjacent
rooms.
Figure 33: TITANUS MICRO·SENS
®
with air return
The air return pipe system is directly connected through the protection grid to
the air outlet inside TITANUS
MICRO·SENS
®
. As the air return pipe fits pre-
cisely into the air outlet a firm hold is ensured.
3.3.5
