TITANUS MICRO·SENS
®
Technical Description
06/13
53
Steam trap for humid areas

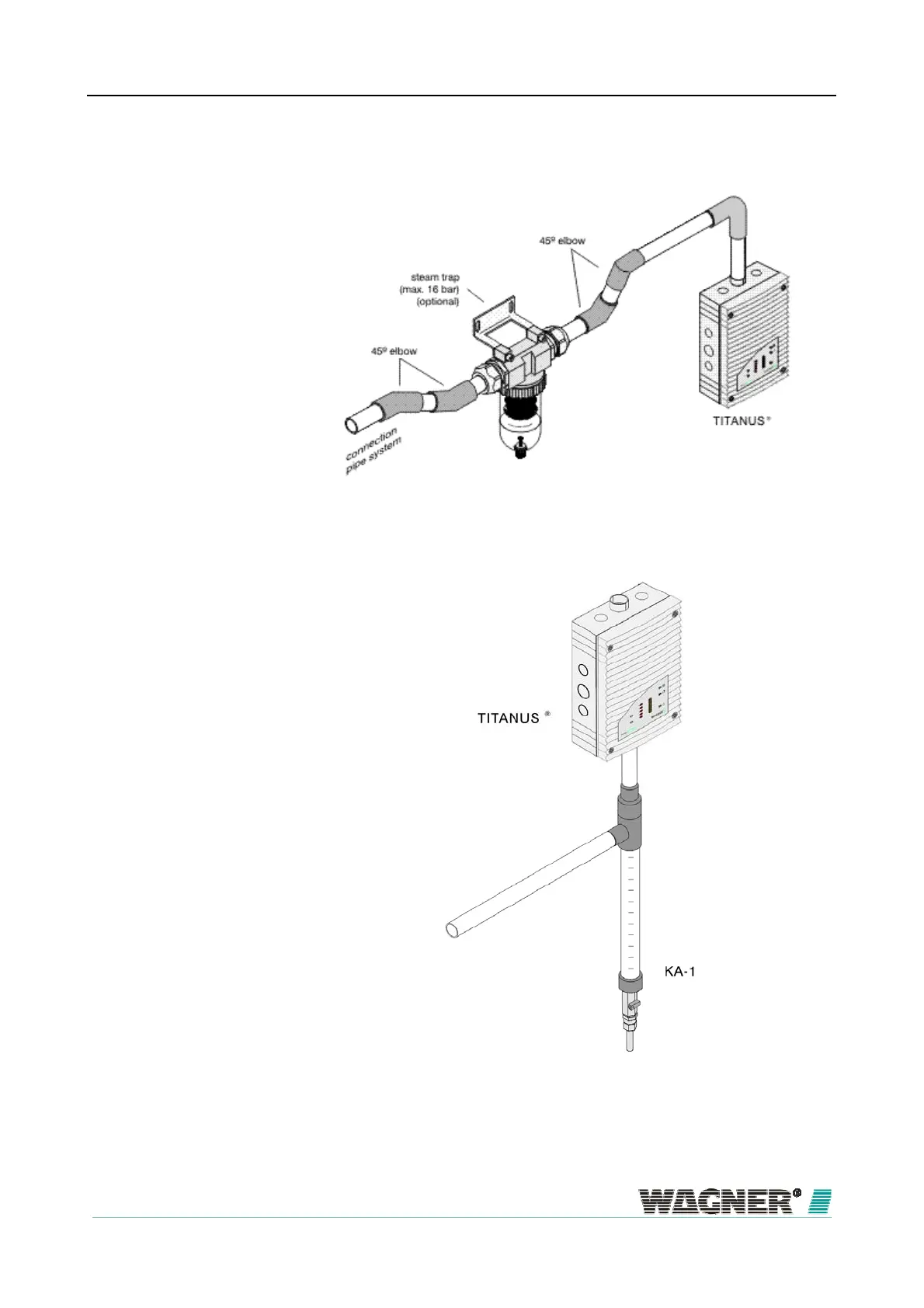

Figure 35: Steam trap to eliminate water vapour from the pipe system and to collect
the condensate from the pipe system
Figure 36: KA-1 to eliminate water vapour from the pipe system and to collect the
condensate from the pipe system
3.3.7
