TITANUS MICRO·SENS
®
Technical Description
06/13
33
Detector box
External detector boxes can be used in the pipe system in connection with
the TITANUS
MICRO·SENS
®
smoke detection system.
The detector box is used …
▪ to create a two-detector or two-line dependency,
▪ to be able to locate the branch affected by smoke in multi-branch pipe
systems and/or
▪ to raise the reaction sensitivity in multi-branch pipe systems

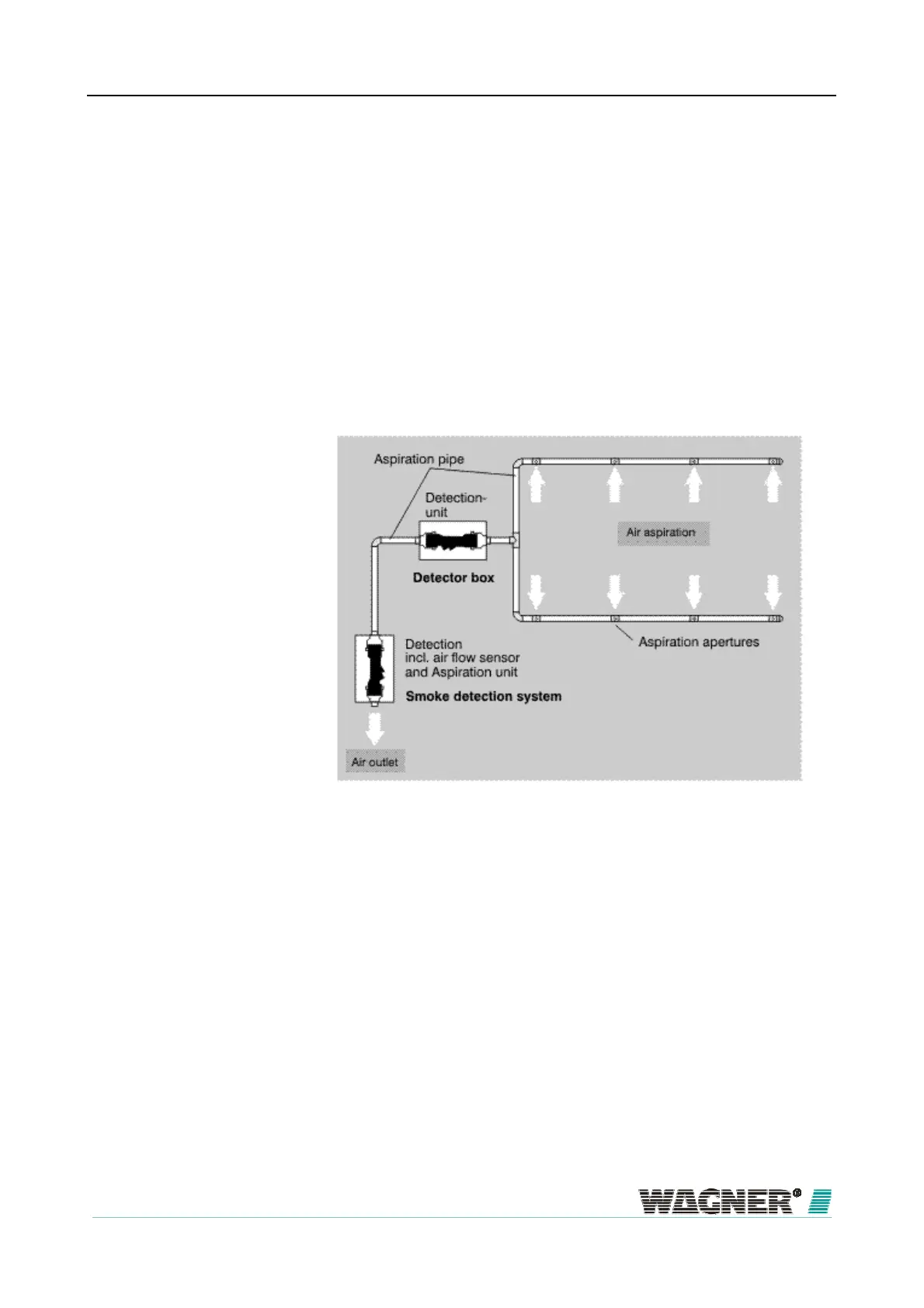

Figure 13: TITANUS MICRO·SENS
®
function principle with detector box for two-
detector or two-line dependency
3.2.3
Use
