Diagnostics tool

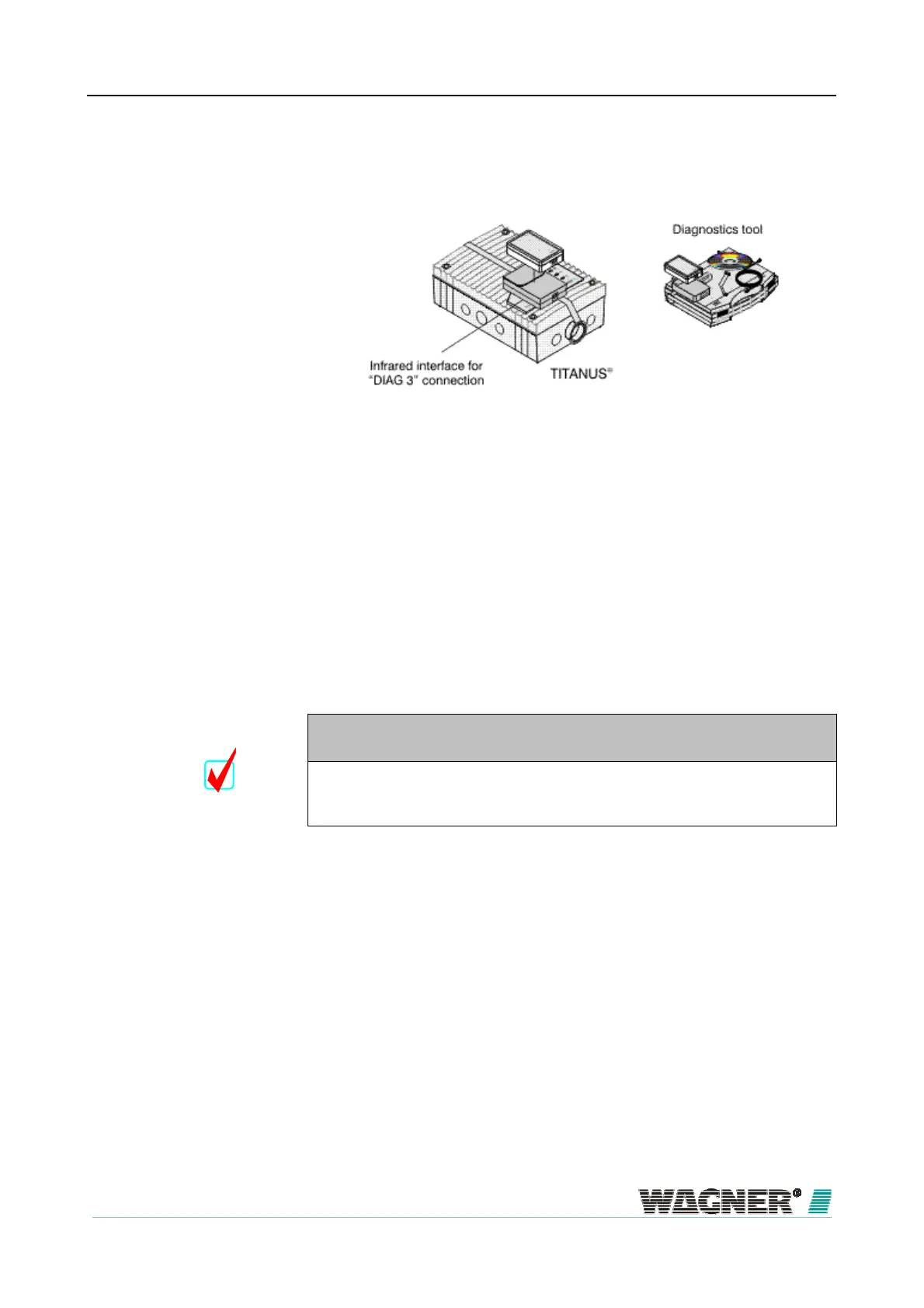

Figure 17: Diagnostics tool for inputting and reading off device data
Using the DIAG 3 diagnosis tool, the device configuration for the TITANUS
®
can be changed during commissioning. For maintenance and servicing,
there is the option with the diagnosis software to display the stored and cur-
rent device status and error messages from the TITANUS
®
on a PC or lap-
top. For the data transfer to the diagnostics equipment the infrared interface
of the TITANUS
®
is used. There is a USB cable for transferring data from the
diagnostics equipment to the PC/laptop connection.
TIP
It is recommended that the commissioning statuses are read out, checked
and recorded.
Diagnosis messages can be deleted at any time using the DIAG 3 diagnosis
tool. If they are not deleted, the messages are stored in the TITANUS
®
for 72
hours. This allows for evaluation of short, sporadic faults (e.g. in changed
operating conditions).
