TITANUS MICRO·SENS
®
Design
06/13
81
M-Pipe system

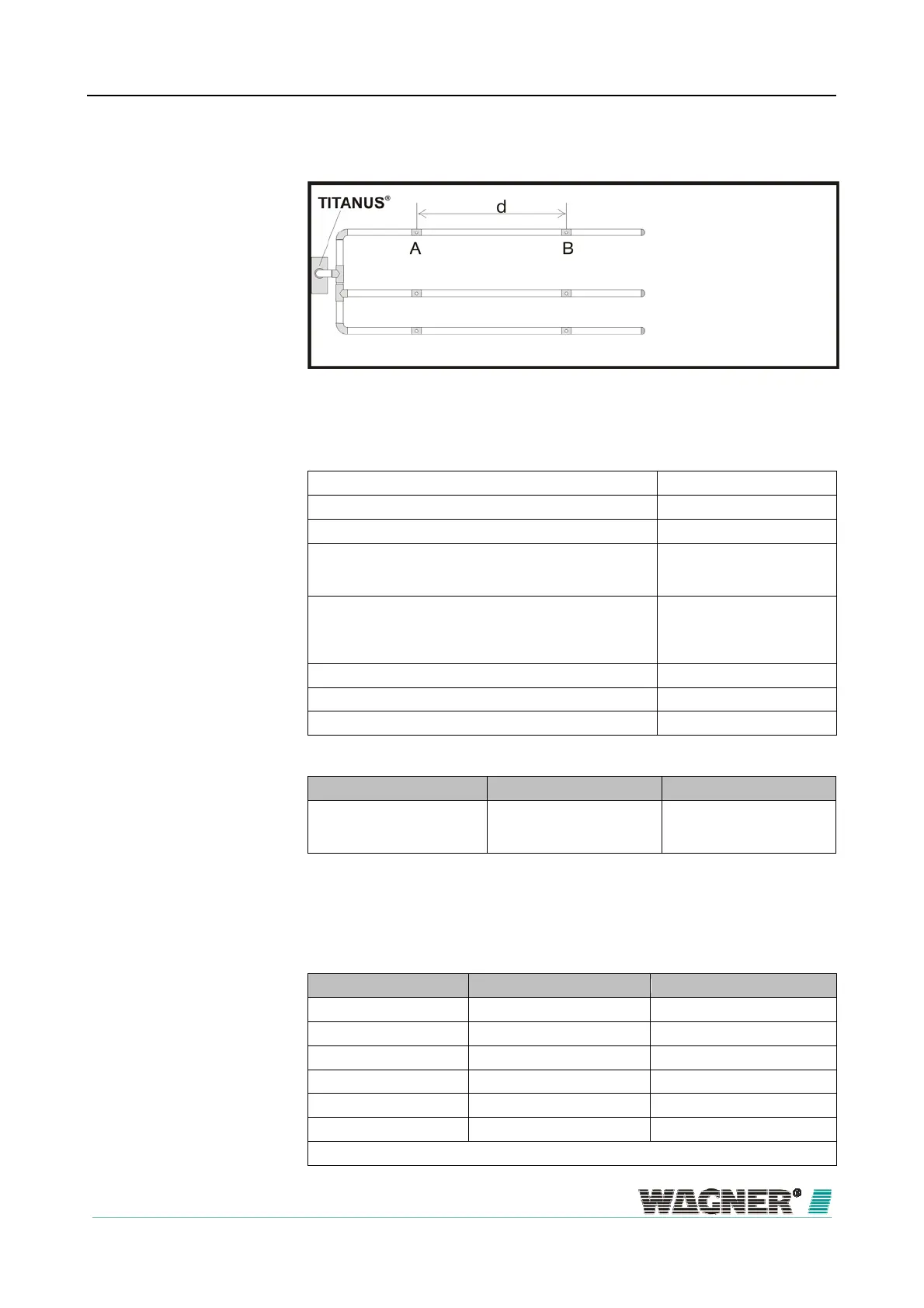

Figure 45: M-Pipe system for area protection
min. distance TITANUS
®
– T piece 2 m
max. distance TITANUS
®
– T piece 20 m
max. branch length 16.5 m
max. overall pipe length per pipe system
pipe ∅ 25 mm plus
pipe ∅ 12 mm
50 m
8 x 3 m
max. overall pipe length per pipe system per
with high fan voltage 9,0 V
pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
6 x 3m
min. distance between 2 aspiration apertures (d) 4 m
max. distance between 2 aspiration apertures (d) 10 m
max. number aspiration apertures (n) per pipe system 6 no.
Number of apertures 3 6
Aspiration apertures ∅ in mm*
A
B
5,0
—
3,6
3,8
*) Press cut diameter in aspiration-reducing film sheet
Trigger Thresholds M-Pipe system
Number of apertures 2 6
1 blocked aperture ±25 % ±10 %
2 blocked apertures O ±25 %
3 blocked apertures O O
4 blocked apertures O O
5 blocked apertures O O
6 blocked apertures O O
… is/are recognised when main air flow set x %
5.3.1.3
1 Pipe system
Limit values
A
spiration apertures
