Ceiling duct for concealed mounting

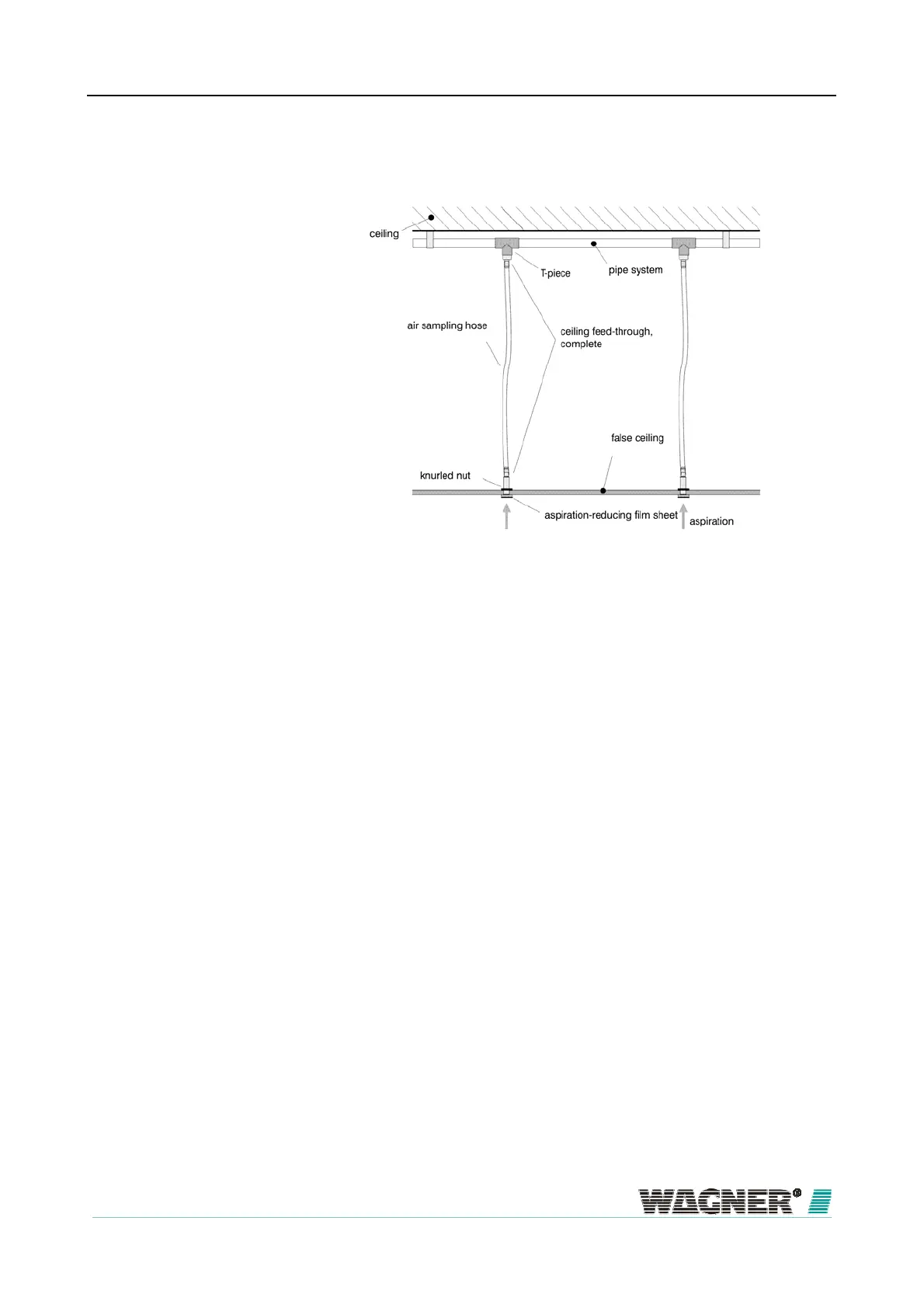

Figure 26: Ceiling feed-through for ceiling voids
If a hidden installation is required for monitoring of the pipe system, it can be
installed in the ceiling void. The ceiling feed through are put in the false ceil-
ing. According to the pipe design guidelines the ceiling feed-through are
equipped with aspiration-reducing film sheets with defined air sampling
points (see chapter Design "Pipe Design") and are connected to the pipe
system with air sampling hoses.
If the maximum length of these hoses is 1 m, refer to the pipe design de-
scribed in chapter "Design". If - due to construction - hose lengths of more
than 1 m are required, the air sampling pipe system must be calculated
separately (calculation is made by WAGNER).
The ceiling feed through is applicable for false ceiling panels with a thickness
of up to approximately 35 mm. The aspiration-reducing film sheets are avail-
able in two colours (pure white, RAL 9010 and papyrus white, RAL 9018)
and come ins special colours if required.
