TITANUS MICRO·SENS
®
Technical Description
06/13
47
1
2
3
Air sampling hose
Hose connection
Pipe cap
Ceiling feed through (part)
Air flow reducer
(Aperture plate)

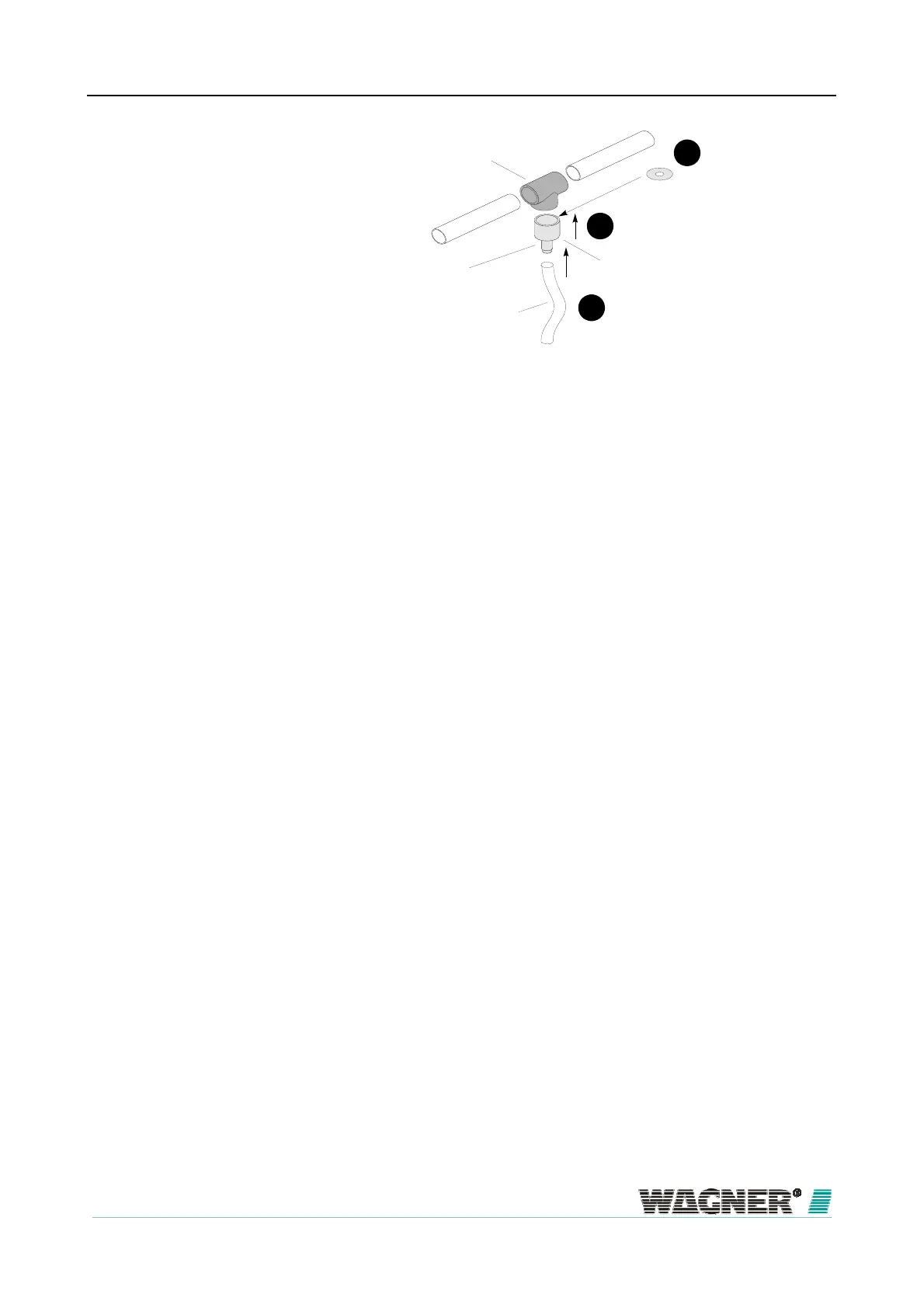

Figure 27: Capillary hose Installation and upstream aperture
For hidden installation in example lamps or stucco, the air sampling hose
with upstream aspiration reduction in the tees (pipe caps) are used.
