TITANUS MICRO·SENS
®
Technical Description
06/13
31
Air sampling smoke detection system
The TITANUS MICRO·SENS
®
air sampling smoke detection system com-
prises the following components, device base, detection unit and pipe sys-
tem:
Device base
▪ Connections for 25 mm aspiration pipe (in and return)
▪ Cable feeds
▪ Potential free contacts for connection to a FAS
Detection unit
▪ Sensitive detection using the latest technology according to the principle
of optical scattered light indicators with integrated airflow monitoring
▪ Aspiration unit with improved air feed
▪ Optical displays for smoke levels, fire alarm, action alarm, fault, opera-
tion and indication of the location of the seat of fire
▪ Infrared interface for diagnostics

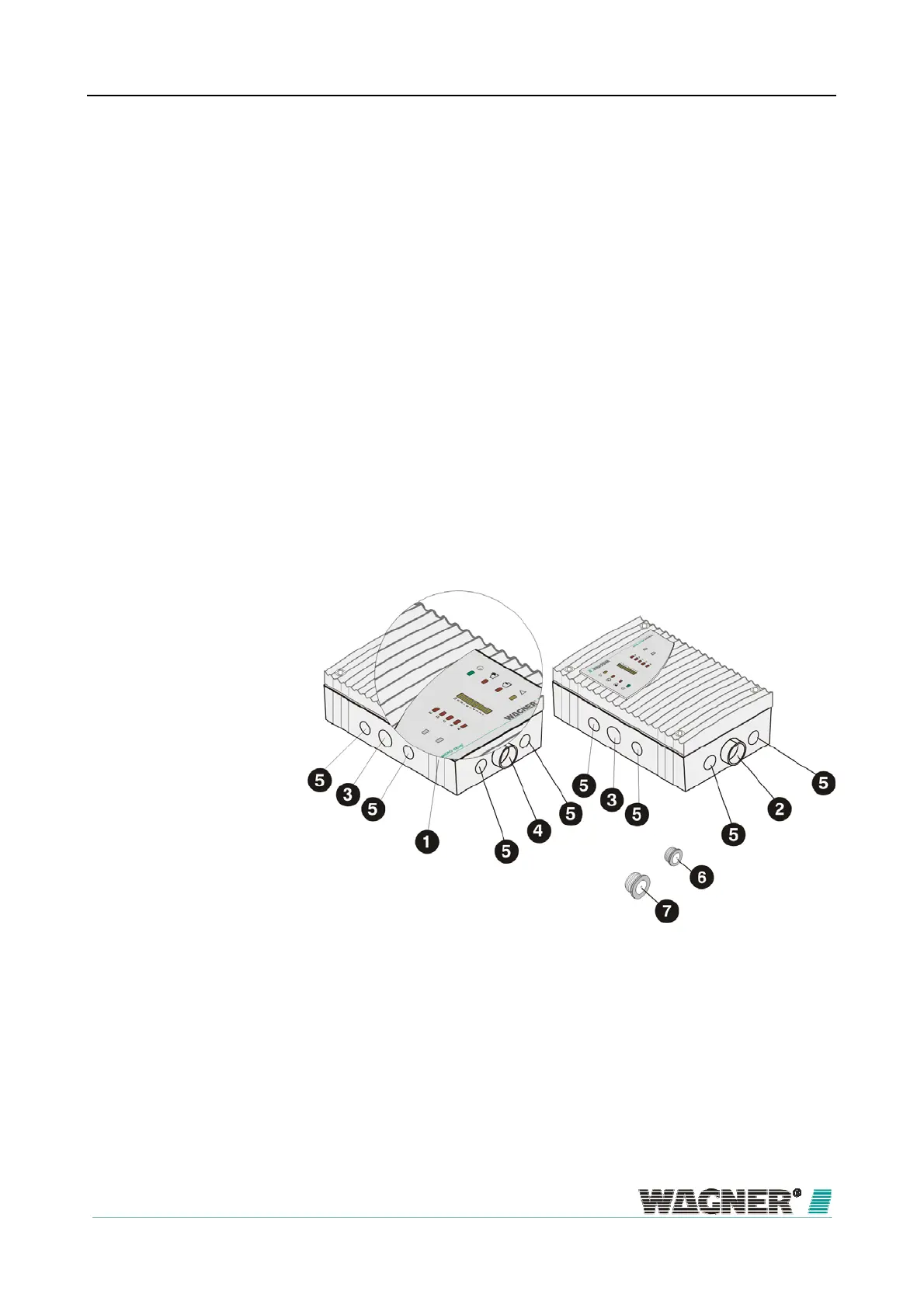

Figure 11: TITANUS MICRO·SENS
®
displays and connections
3.2.2
