Simplified pipe design
Simplified pipe design is used for equipment protection and in areas with
small dimensions. The advantage of this design is the unified diameters of
the aspiration apertures.
For the project planning’s, the specifications according to chapter 5.2 apply.
Furthermore, the following limit values and opening diameters have to be
considered. Additional accessories (air filter, steam traps etc.) can influence
the maximum pipe length.
I-Pipe system

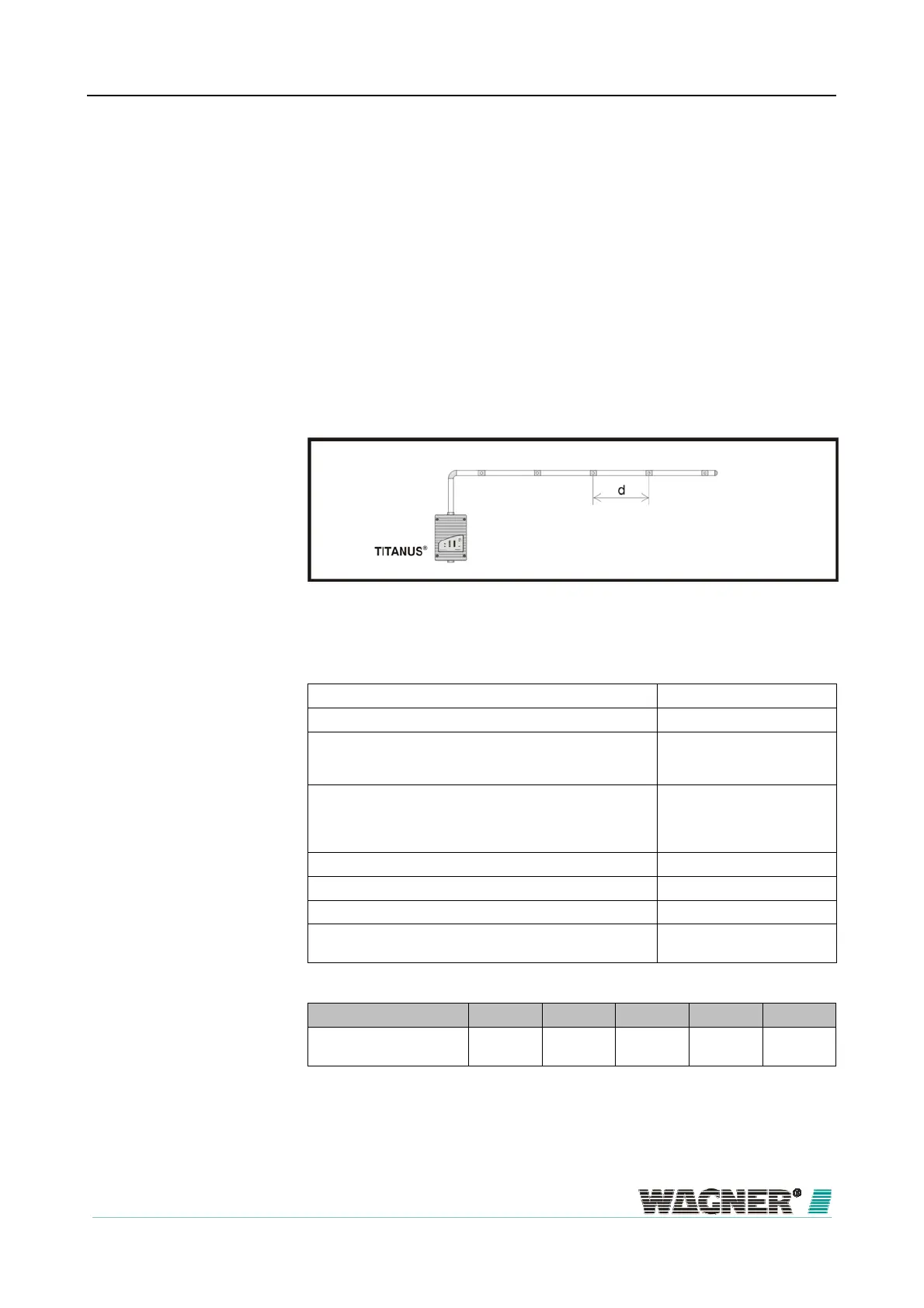

Figure 47: I-Pipe system, e.g. for equipment protection
min. distance TITANUS
®
– 1st aspiration aperture 2 m
max. distance TITANUS
®
– 1st aspiration aperture 20 m
max. overall pipe length per pipe system
pipe ∅ 25 mm plus
pipe ∅ 12 mm
40 m
5 x 3 m
max. overall pipe length per pipe system per
with high fan voltage 9,0 V
pipe ∅ 25 mm plus
pipe ∅ 12 mm
30 m
5 x 3m
max. number aspiration apertures (n) per pipe system 5 no.
min. distance between 2 aspiration apertures (d) 0.1 m
max. distance between 2 aspiration apertures (d) 4 m
minimum distance for fire site location between the aspiration
apertures (d) 3 m
Number of apertures 1 2 3 4 5
Aspiration apertures∅
in mm*
6,8 4,6 4,0 3,6 3,4
*) Press cut diameter in aspiration-reducing film sheet
