Technical Description
TITANUS
MICRO·SENS
®
40
06/13
Remote displays

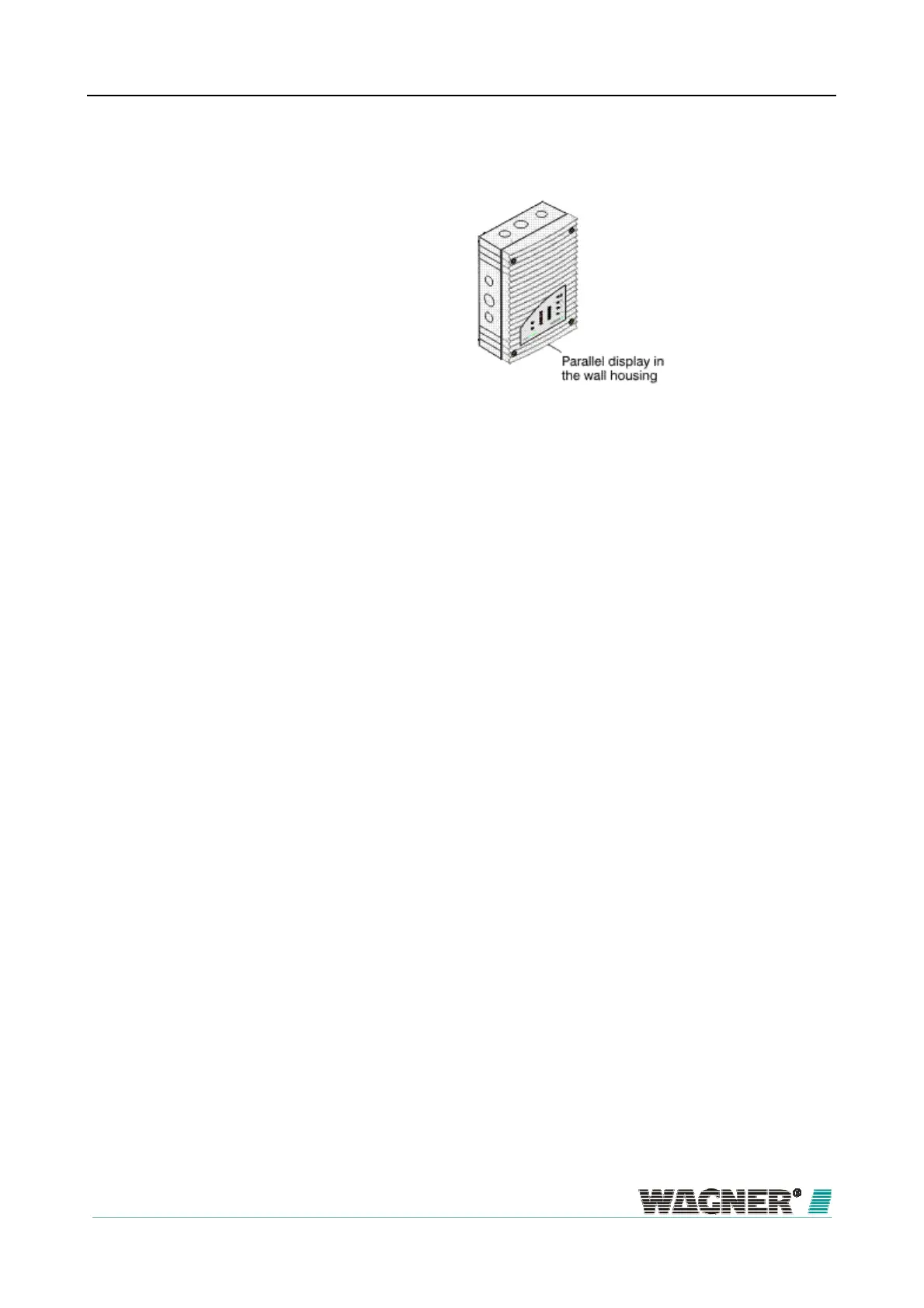

Figure 19: Remote display for wall mounting
The TITANUS
MICRO·SENS
®
offers the possibility of connecting one or
more remote displays. The displays on the remote display are identical to
those on the detection unit. The connection is made in the TITANUS
MI-
CRO·SENS
®
device base.
A remote display can be connected up to a distance of 1000 m. If a second
remote display [sic] is connected behind the first one, this can in turn again
be 1000 m from the first one. This is possible as each remote display is also
a repeater.
The power supply for small distances is direct through TITANUS
MI-
CRO·SENS
®
, and for longer distances via an external supply (see Chapter
design "Power Supply Calculation").
3.2.6
