Installation
TITANUS MICRO·SENS
®
116
06/13
Incorporating the relay board RU-1 / RU -2
If a relay board are needed, the board must be fitted into an additional hous-
ing.

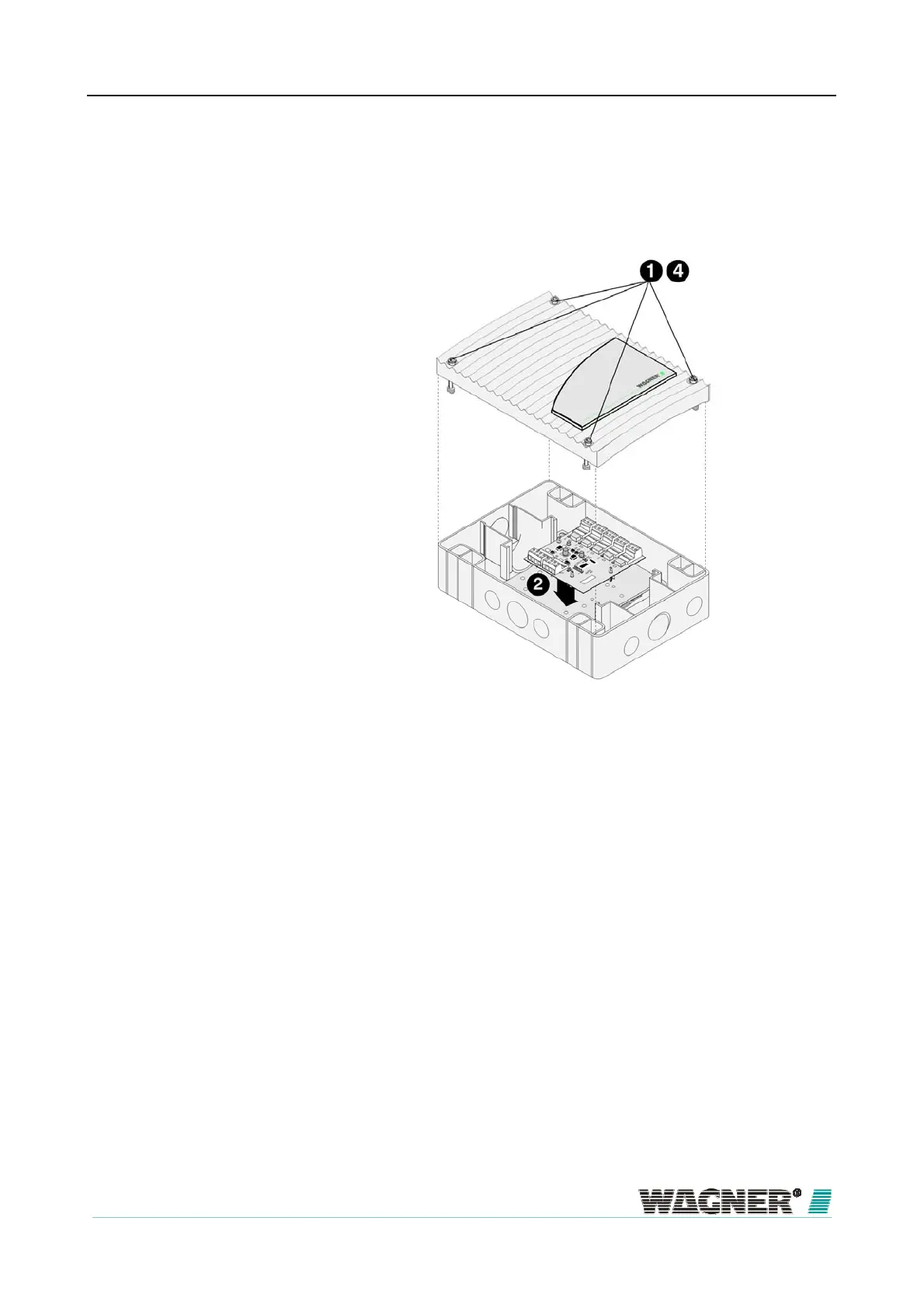

Figure 72: Incorporating the relay board into the TITANUS MICRO·SENS
®
additional
housing
Proceed as follows to incorporate the relay board:
1. Using a screwdriver, loosen the four screws on the additional housing
cover.
2. Push the spacer blocks into the installation board (for fixing points see
Figure "Arrangement of holes on the installation plate of the additional
housing") on the additional housing. The relay board is then engaged
with the spacer blocks using the holes provided.
3. Feed the wires through as per the following switching plan.
4. Fit the cover again, using a screwdriver to fit the four screws on the de-
vice cover firmly.
6.7
Fitting
