Installation Pipe System
TITANUS
MICRO·SENS
®
150
06/13
6. Stick the correct aspiration-reducing film sheet (according to pipe design
guidelines) to the ceiling feed-through.
The aspiration-reducing film sheets are available in two colours. Depend-
ing on the colour of the ceiling, either type AFW-x (pure white, RAL
9010) or type AF-x (papyrus white, RAL9018) are used. On request, film
sheets in special colours are produced.
NOTICE
The perforation of the aspiration-reducing film sheet must be placed exactly
over the opening of the ceiling lead-through and the diameter of the hole in
the film sheet must not be altered.
To keep the gluing surface of the film sheet free of dust and grease, avoid
any contact.
Other ceilings feed-through
1
2
3
Air sampling hose
Hose connection
Pipe cap
Ceiling feed through (part)
Air flow reducer
(Aperture plate)

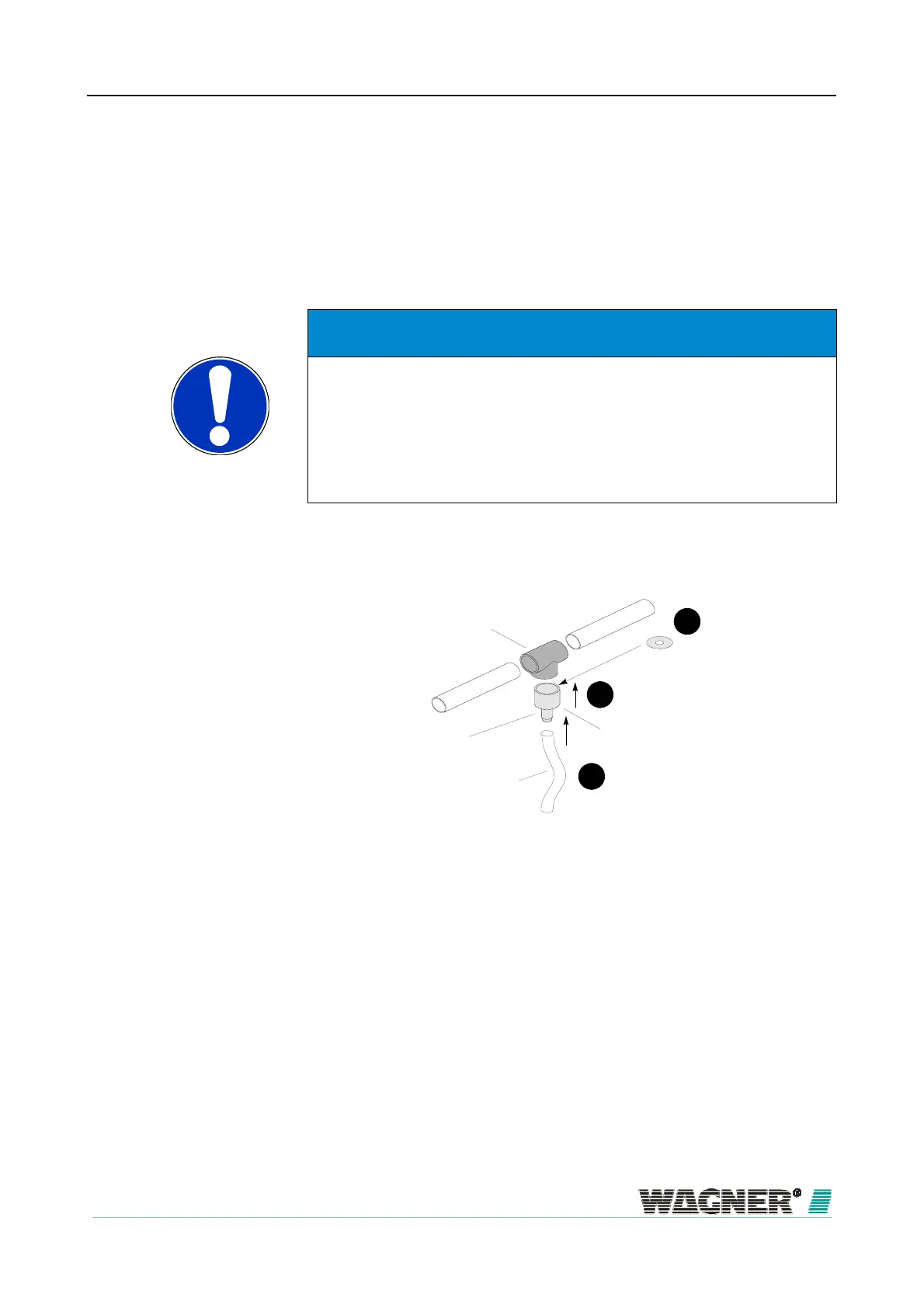

Figure 93: Assembling of capillary hose and up-streamed blind
To install the ceiling feed-through use the following steps:
1. Before gluing remove dirt and grease with the recommended cleaner.
2. Stick the correct aspiration-reducing film sheet (according to pipe design
guidelines) to the ceiling feed-through.
3. Stick the hose pin with the certain pipe cap along the air sampling hose
by tangit glue.
4. For each ceiling feed-through drill a hole of ∅ 12 mm through the false
ceiling.
5. Calculate the necessary length for air sampling hose and cut it. Tuck the
cut hose through the intermediate ceiling and on the hose pin at the pipe
7.4.2
