Mounting of the special filter type SF-400/650

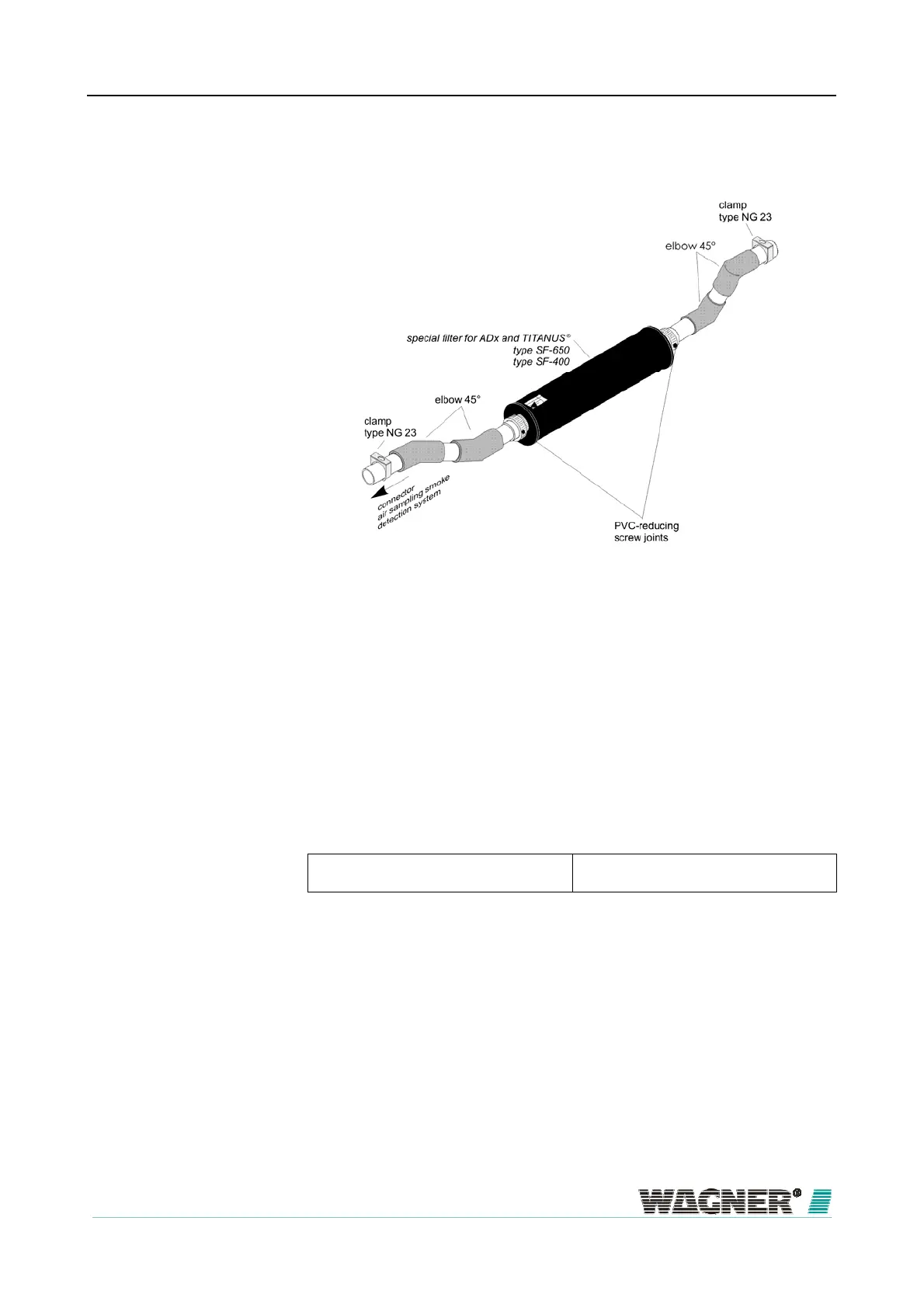

Figure 97: Mounting of the special filter into the pipe system
1. To install or un-install the special filter use the two PVC reducer screw
joints at both filter ends.
2. Glue the reducer couplings into the pipe system.
3. When installing the special filter, note the flow direction shown on the fil-
ter housing.
4. Clamp the special filter with a 45º elbow piece to the pipe system.
Air filter PVC or ABS pipe fittings
– 45°-elbows
When using a combination of special filter type SF-x and air filter type LF-AD
please install the air filter after the special filter, viewed from the aspiration
system.
7.6.2
Special filter SF-
x
Installation material
