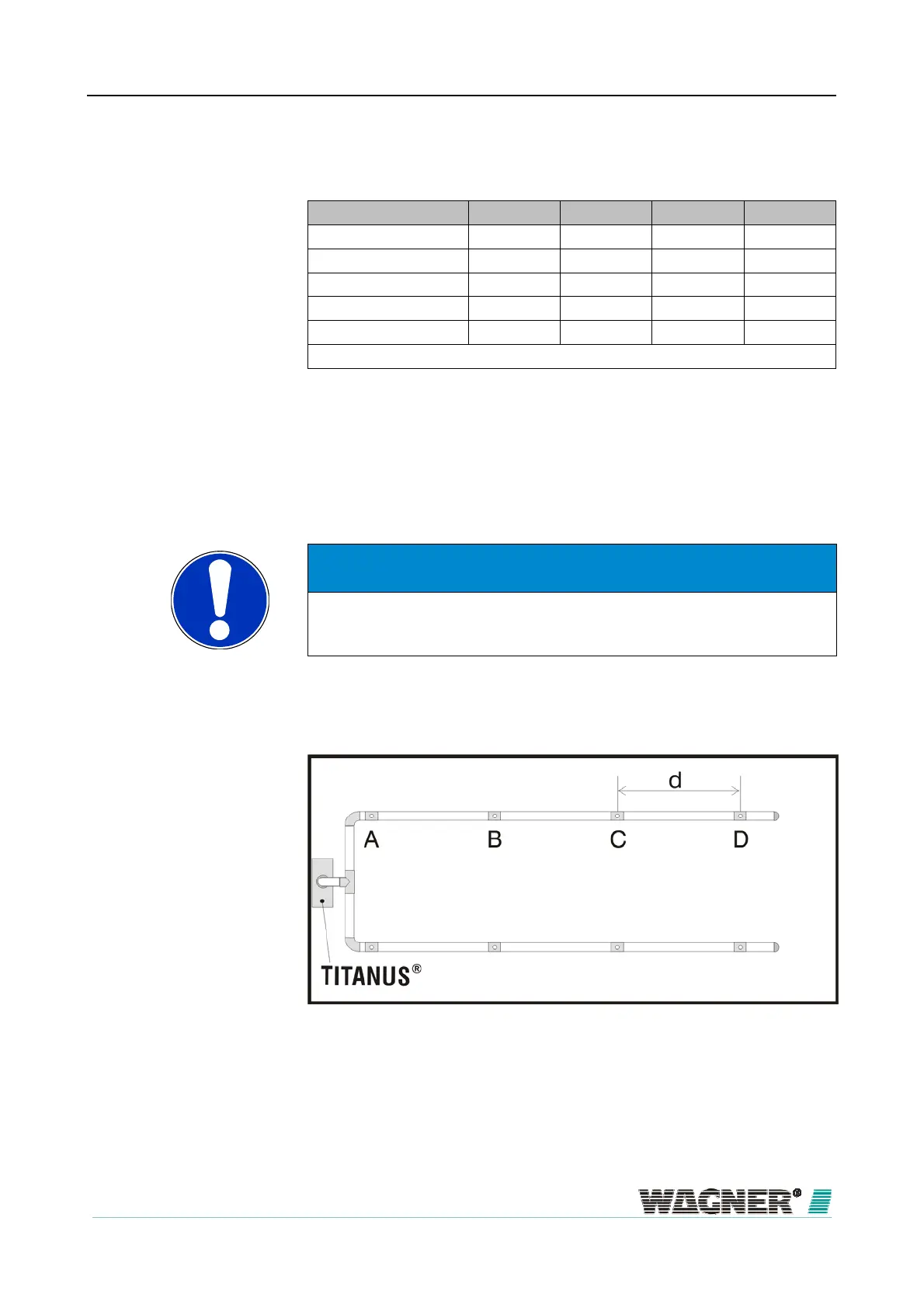

Trigger Thresholds I-Pipe system
Number of apertures 2 3 4 5
1 blocked aperture ±25 % ±15 % ±10 % —
2 blocked apertures O O ±20 % ±15 %
3 blocked apertures O O O O
4 blocked apertures O O O O
5 blocked apertures O O O O
… is/are recognised when main air flow set x %
— not possible
O not purposeful
If the blockage of 2 aspiration apertures out of a total of 5 aspiration aper-
tures is recognised, then with the help of the diagnostics tool flow monitoring
can be set to ±15 %.
NOTICE
For a project planning according to EN 54-20 or ISO 7240-20, the air flow
monitoring has to be adjusted to ≤20 % in either case.
U-Pipe system
Figure 44: U-Pipe system for area protection
Example
5.3.1.2
1 Pipe system
Limit values
