Installation
TITANUS
MICRO·SENS
®
114
06/13
Incorporating the reset and isolating button
board
If a reset or isolating button is needed, the plate must be fitted into an addi-
tional housing.

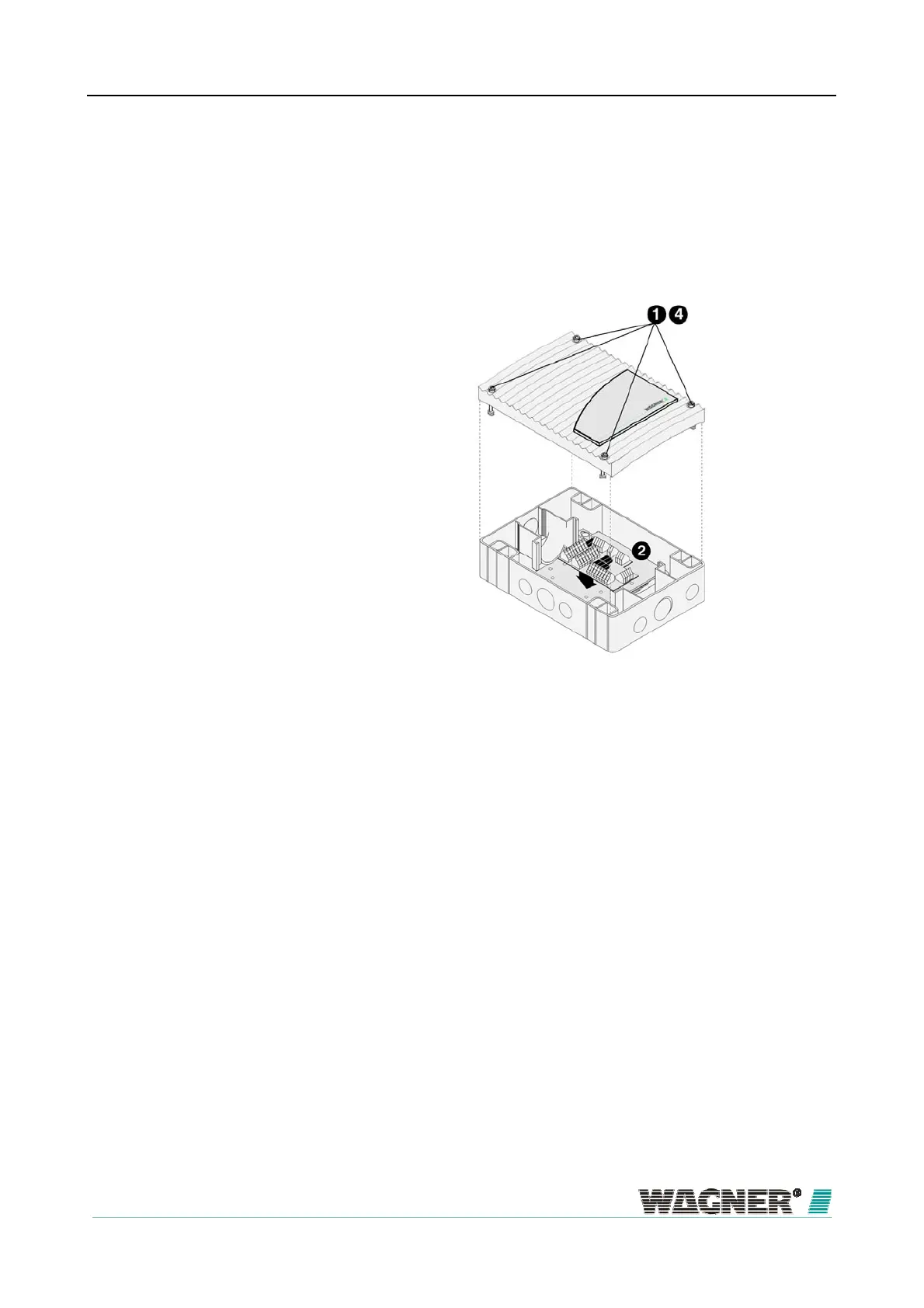

Figure 70: Incorporating the reset and isolating board into the housing
Proceed as follows to incorporate the reset and isolating button board:
1. Using a screwdriver, loosen the four screws on the additional housing
cover.
2. Push the spacer blocks into the installation board (for fixing points see
Figure "Arrangement of holes on the installation plate of the additional
housing") on the additional housing. The reset and isolating button board
is then engaged with the spacer blocks using the holes provided.
3. Feed the wires through as per the following switching plan.
4. Fit the cover again, using a screwdriver to fit the four screws on the de-
vice cover firmly.
6.6
Fitting
