WAGNER Titanus Micro-Sens - Detection in Bypass Systems

TITANUS MICRO·SENS
®
Installation Pipe System
06/13
153
Detection in bypass systems
For connection of air return refer to chapter Installation Pipe System "Air Re-
turn".

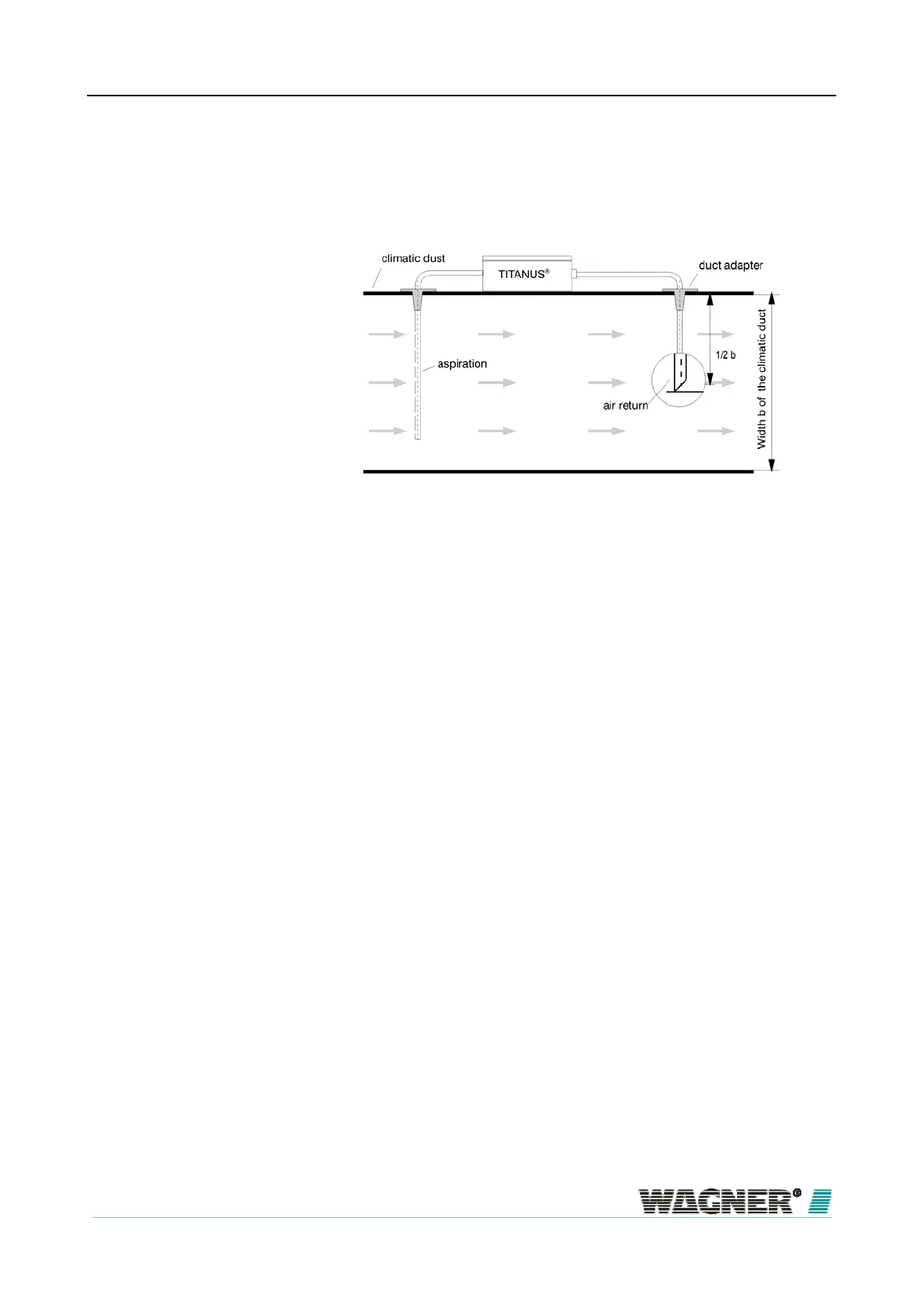

Figure 95: Positioning of air return, example of a climatic duct (bypass)
For the pipe design of air sampling smoke detection in these areas see
chapter Design “Pipe Design for Forced Air Flow“.
7.5.2
