WAGNER Titanus Micro-Sens - Steam Trap Type

Installation Pipe System
TITANUS MICRO·SENS
®
162
06/13
Steam trap type KA-1

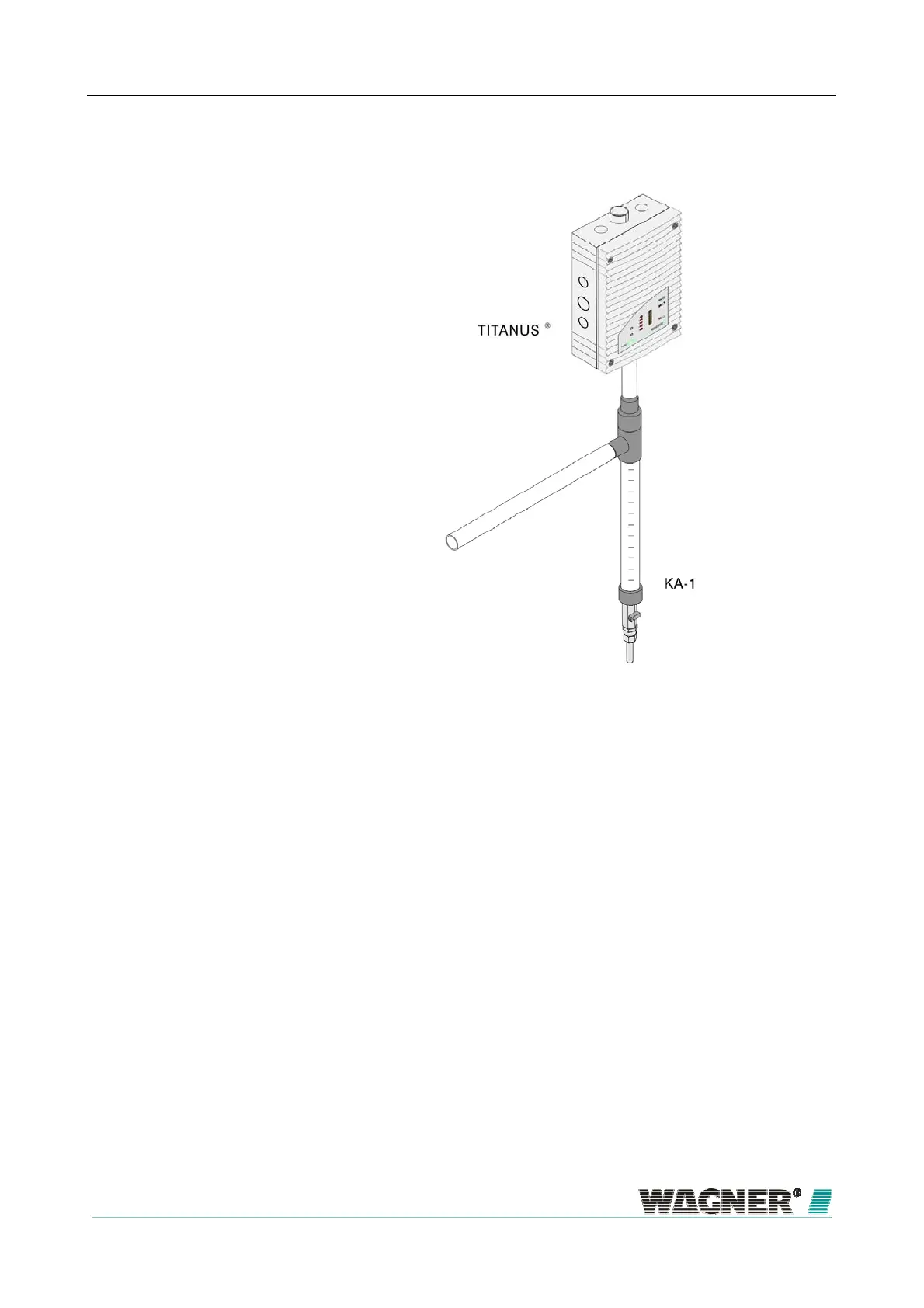

Figure 103: Mounting of the steam trap type KA-1 to the pipe system
Install the steam trap at the lowest port of the pipe system behind the air fil-
ter and TITANUS
®
– device. Glue the air-tight pipe system with steam trap.
1. Place the steam trap to the intended position and fasten the steam trap
with two 40 mm pipe clamps.
2. Glue the air-tight pipe system with steam trap.
7.10.2
Connection
